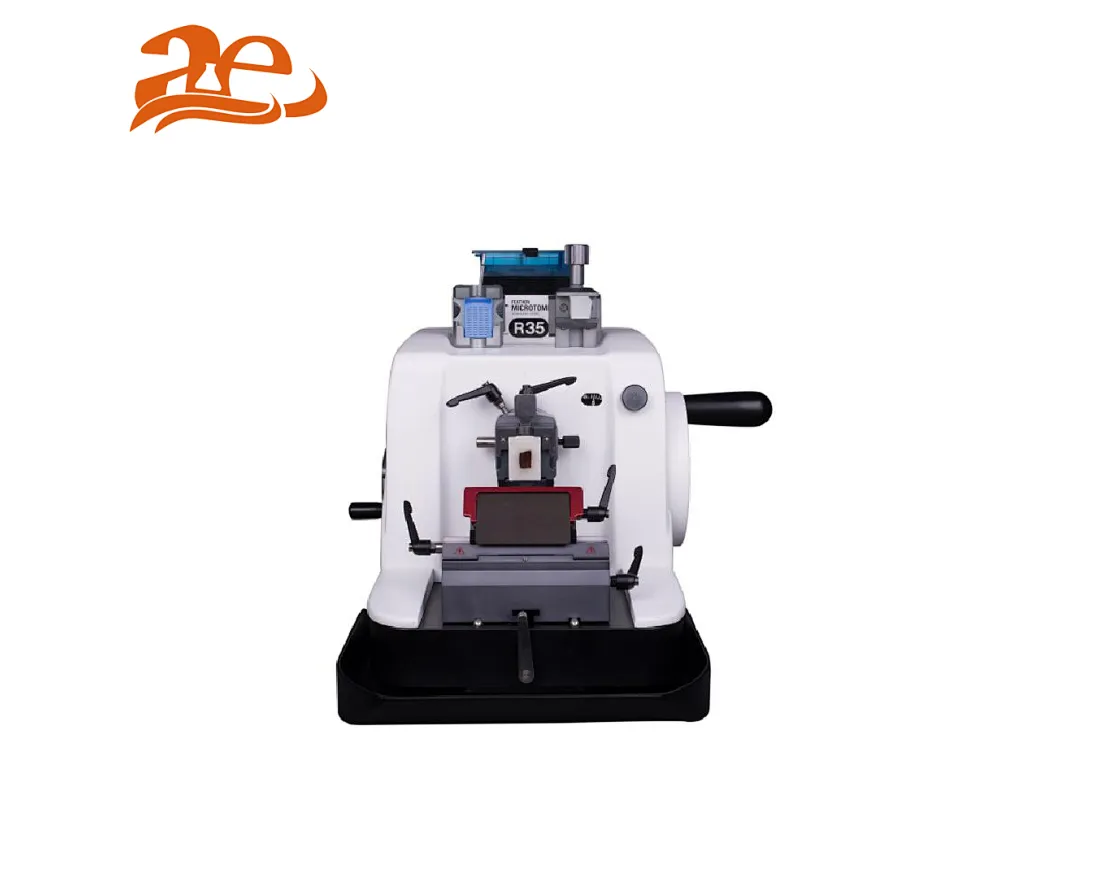

Rotary Microtome AE-315
The rotary microtome is the most common instrument found in a histology laboratory. Although most microtomes are manual, some are automatic or semi-automatic, where the advancement of the block and speed of cutting are controlled by a foot pedal or a digital keypad at one's fingertips.
AE315
1
Quantity:

Rotary Microtome AE-315

Product specifications :

key components such as guide rail ,screw mandrel, Ratchet rod are import from Japan. The Rotary microtome AE-315  is ideal for most routine histology, biological and industrial needs. High precision & stability ensures exact reproducible section quality in wax and plastic embedded sections.

The rotary microtome is the most common instrument found in a histology laboratory. Although most microtomes are manual, some are automatic or semi-automatic, where the advancement of the block and speed of cutting are controlled by a foot pedal or a digital keypad at one's fingertips.

Product specifications :

+High precision specimen feed
+Universal cassette clamp and standard specimen clamp
+The hand wheel can be locked in any position or highest position , The dual fail-safe control system is safe and reliable
+It adopt the special blade carrier , it is more safe and convenient to use the disposable blade directly . good durability and long service life, optional blade carrier can use steel knife or blade holder .
+Two type of upper part blade holder can use both of low profile blade and high profile blade
+Smoothly running hand wheel
+Spacious, integrated section waste tray
+Finger protection guard



Technical Data:

+Section thickness range: 0- 60μm

 Setting values : From 0-2μm in 0.5μm –increments

              From 2-10μm in 1μm-increments

              From 10-20 μm in 2μm-increments

              From 20-60μm in 5μm-increments

+Horizontal specimen stroke :28 mm
+Vertical specimen stroke : 60mm
+Precision error: ± 5%
+Sample orientation:8°along the X-Y-axis, rotable 360°
+Maximum section size: 50 × 45mm
+Dimensions incl. tray (L/T/H)30cmLX46cmWX29cmH
+Net weight:30kg

Standard Accessory

2 types Clamp

1 Blade Carrier (for disposable blade )

1 Waste Tray

4 pcs Tissue Molds

50pcs Cassettes

Optional Accessory

Blade Carrier(for Blade holder or Steel knife)

Blade Holder

Microtome Disposable Blade

Steel Knife
