AELAB Single Beam UV-VIS Spectrophotometer
UV visible spectroscopy technique is applied as a quantitative technique in various market segments such as food and beverages, pharmaceutical, chemical, water testing, and biotech industry.
AE-752N
Quantity:

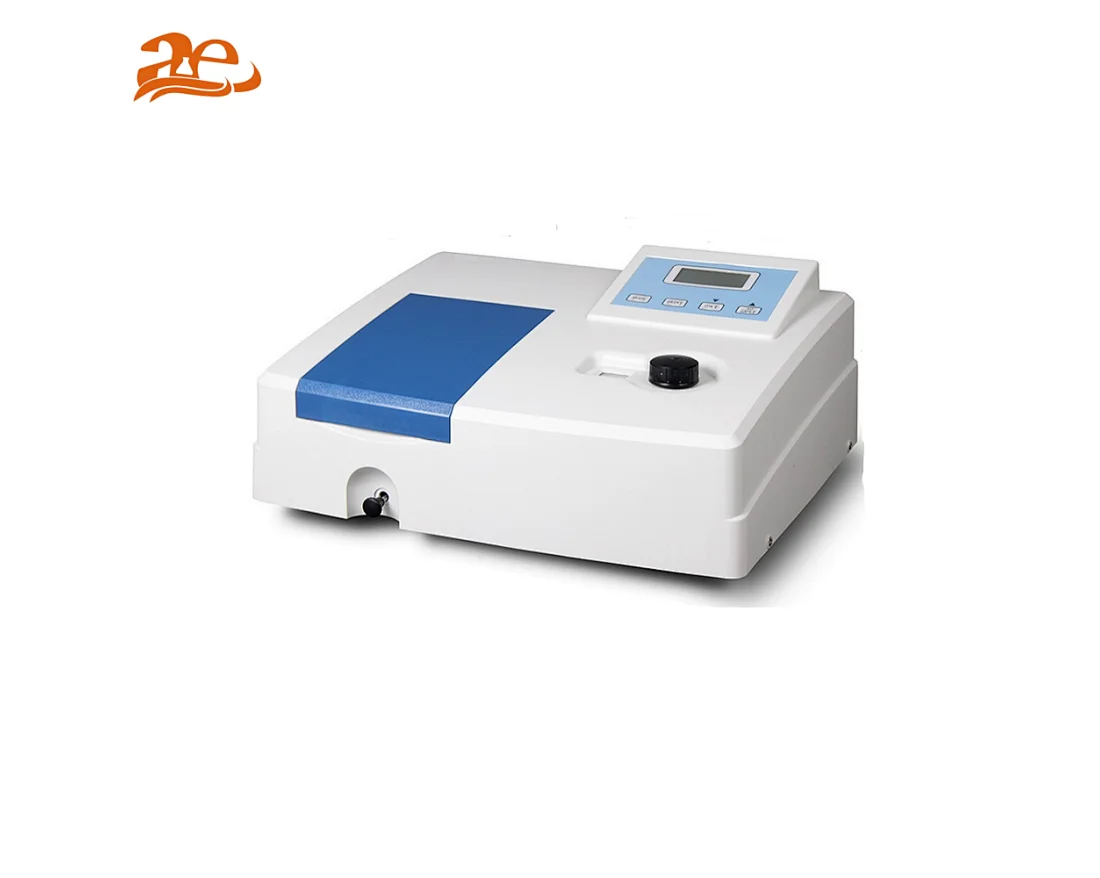

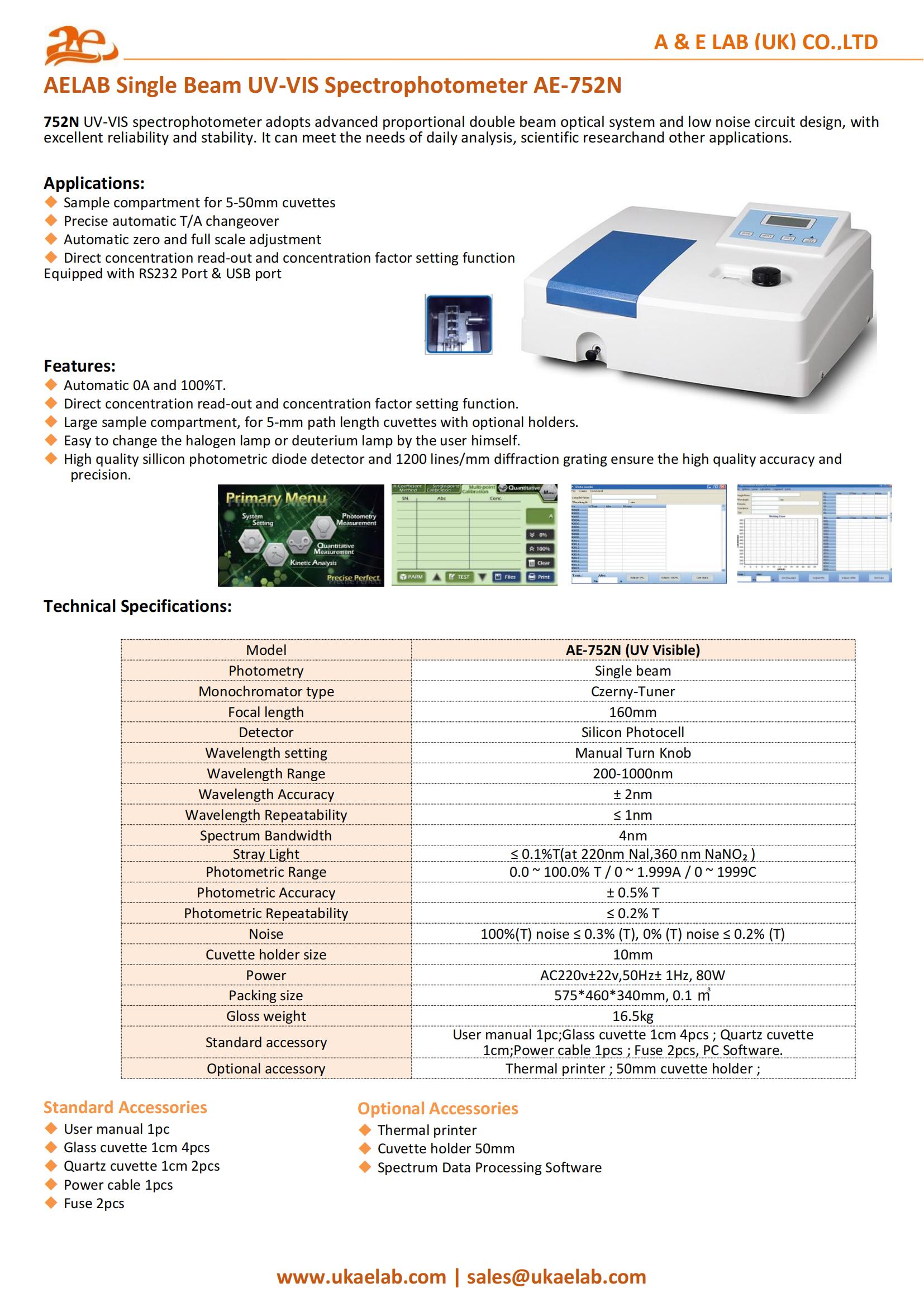

AELABSingleBeam UV-VIS Spectrophotometer AE-752N
752N UV-VIS spectrophotometer adopts advanced proportional double beam optical system and low noise circuit design, with excellent reliability and stability. It can meet the needs of daily analysis, scientific researchand other applications.
752N UV-VIS spectrophotometer adopts advanced proportional double beam optical system and low noise circuit design, with excellent reliability and stability. It can meet the needs of daily analysis, scientific researchand other applications.
UV visible spectroscopy technique is applied as a quantitative technique in various market segments such as food and beverages, pharmaceutical, chemical, water testing, and biotech industry.
Applications:
+Sample compartment for 5-50mm cuvettes
Applications:
+Sample compartment for 5-50mm cuvettes
+Precise automatic T/A changeover
+Automatic zero and full scale adjustment
+Direct concentration read-out and concentration factor setting function
+Equipped with RS232 Port & USB portFeatures:
+Automatic 0A and 100%T.
+Direct concentration read-out and concentration factor setting function.
+Large sample compartment, for 5-mm path length cuvettes with optional holders.
+Easy to change the halogen lamp or deuterium lamp by the user himself.
+High quality sillicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
Technical Specifications:
| Model | AE-752N (UV Visible) |
| Photometry | Single beam |
| Monochromator type | Czerny-Tuner |
| Focal length | 160mm |
| Detector | Silicon Photocell |
| Wavelength setting | Manual Turn Knob |
| Wavelength Range | 200-1000nm |
| Wavelength Accuracy | ± 2nm |
| Wavelength Repeatability | ≤ 1nm |
| Spectrum Bandwidth | 4nm |
| Stray Light | ≤ 0.1%T(at 220nm Nal,360 nm NaNO₂ ) |
| Photometric Range | 0.0 ~ 100.0% T / 0 ~ 1.999A / 0 ~ 1999C |
| Photometric Accuracy | ± 0.5% T |
| Photometric Repeatability | ≤ 0.2% T |
| Noise | 100%(T) noise ≤ 0.3% (T), 0% (T) noise ≤ 0.2% (T) |
| Cuvette holder size | 10mm |
| Power | AC220v±22v,50Hz± 1Hz, 80W |
| Packing size | 575*460*340mm, 0.1㎥ |
| Gloss weight | 16.5kg |
| Standard accessory | User manual 1pc;Glass cuvette 1cm 4pcs ; Quartz cuvette 1cm;Power cable 1pcs ; Fuse 2pcs, PC Software. |
| Optional accessory | Thermal printer ; 50mm cuvette holder ; |
Standard Accessories Optional Accessories
+User manual 1pc +Thermal printer
+Glass cuvette 1cm 4pcs +Cuvette holder 50mm
+Quartz cuvette 1cm 2pcs +Spectrum Data Processing Software
+Power cable 1pcs
+Fuse 2pcs
