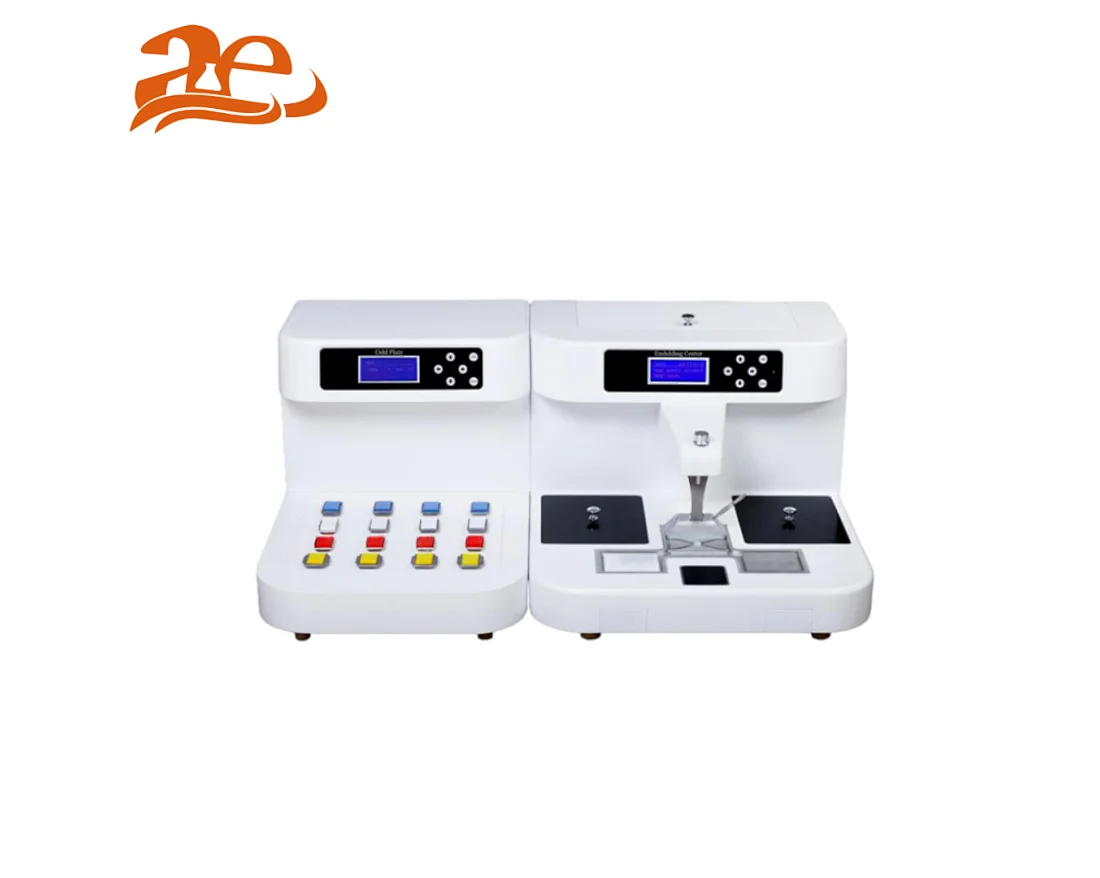

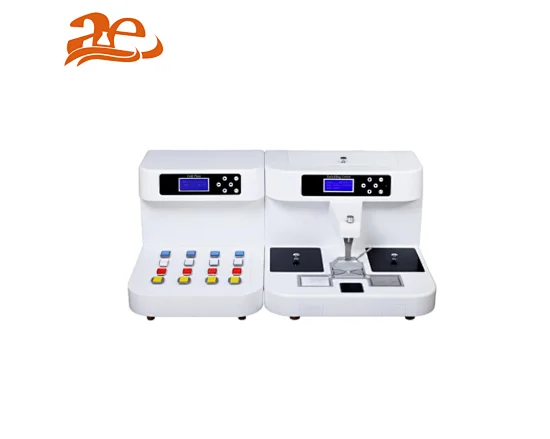

Tissue Embedding Center AE-6K(with Cold Plate )
Embedding is important in preserving tissue morphology and giving the tissue support during sectioning. Some epitopes may not survive harsh fixation or embedding. The tissue is typically cut into thin sections (5-10 µm) or smaller pieces (for whole mount studies) to facilitate further study.
AE-6K
1
Quantity:
Tissue Embedding Center AE-6K(with Cold Plate )
Embedding is important in preserving tissue morphology and giving the tissue support during sectioning. Some epitopes may not survive harsh fixation or embedding. The tissue is typically cut into thin sections (5-10 µm) or smaller pieces (for whole mount studies) to facilitate further study.
Features:
+Integrated design, fast heat up, high safety factor, long working life, good sealing properties and no wax dripping situation
+The newest high technology and Button Panel Control, new type of heating material
+The machine is made up of embedding system, cooling part .the design can be flexibly selected between embedding machine and cooling part.
+Memory function and Auto Recover feature, Automated control system make it possible for presetting the Embedding system or Cold plate switch on / off with setting time and temperature on schedule
+Special nano technical make it heat up quickly and equably.
+The LCD display can show the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.
+Low voltage lighting systems and Adjustable wax flow speed
+Small cold spot in working table .
+Large capacity paraffin bath can contain enough paraffin for use at one time.
+The heating function with multilevel security protection system.
+There are 3 heating hole for forceps in two side of the paraffin nozzle .
+Magnifying glass with lamp is optional accessory
+Collection drawer to collect paraffin from working table Specification:
+Capacity of the paraffin pan : 6000 ml.
+Temperature range of Paraffin pan: 0 ~99℃
+Temperature range of working table: 0 ~99℃
+Temperature range of left and right warming box: 0 ~99℃
+Freezing range temperature of cold plate: 0 ~ -20℃
+Freezing range temperature of small cold spot in working table : 0 ~ -10℃
+Control mode: manual touch plate or foot switch
+About 120pcs of molds or 140pcs cassettes for each hot reservoir
+Capacity of Cold plate :About 50-80pcs of Tissue mold or cassettes
+Environment temperature: 0℃~ 40℃
+Time control: Switch on and switch off time of the machine is set in 24 hours optionally.
+Nominal voltage: AC110V-220V±10％.
+Rated frequency:50Hz/60Hz
+Power consumption: (dispenser part)10A /1800W, (cold plate part)5A/ 130W
+Dimension: Embedding center (60x66x42cm), Cold plate (47x66x42cm)
+Gross /Net Weight: 50/25kg(for Cold plate ) 115/60kg(for AE-6K)
Standard Accessory
1 Foot Switch
4 pcs Tissue Molds
1 pc Power Wire
2 pcs Fuse
Optional accessory
Magnifying glass with lamp
Paraffin
