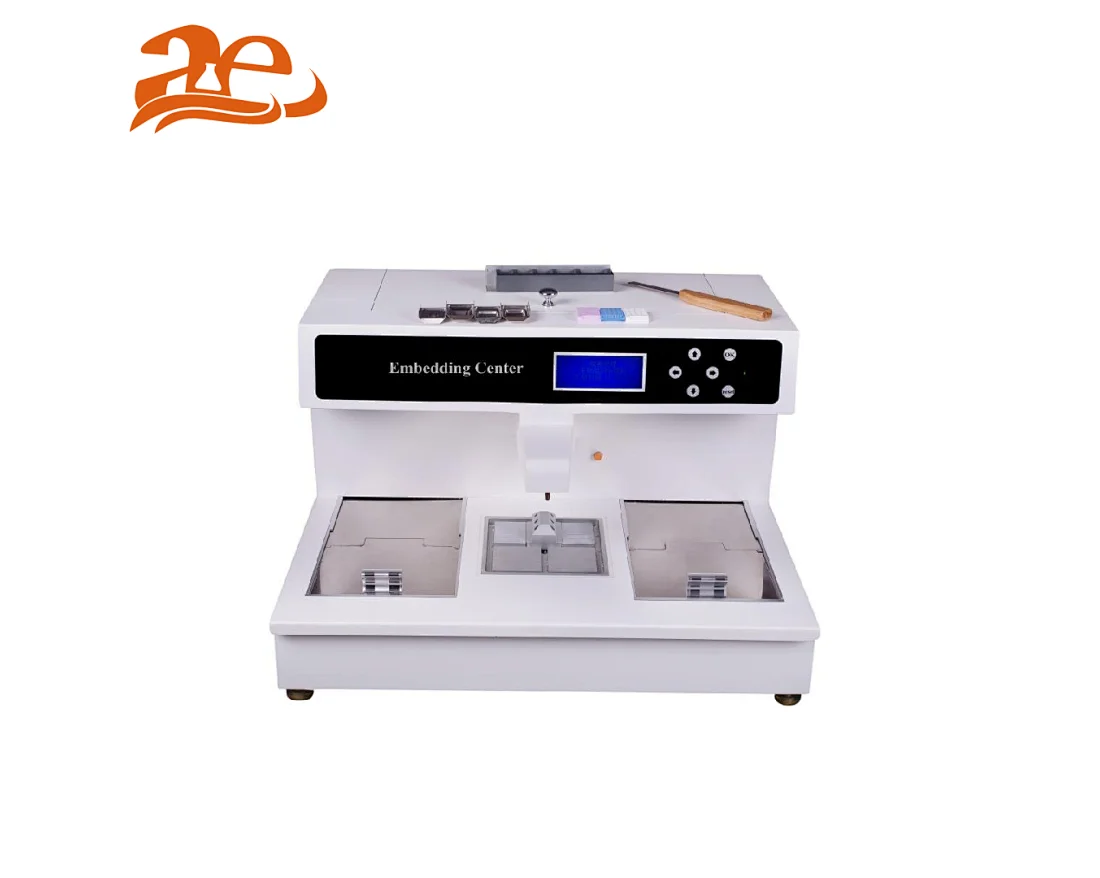

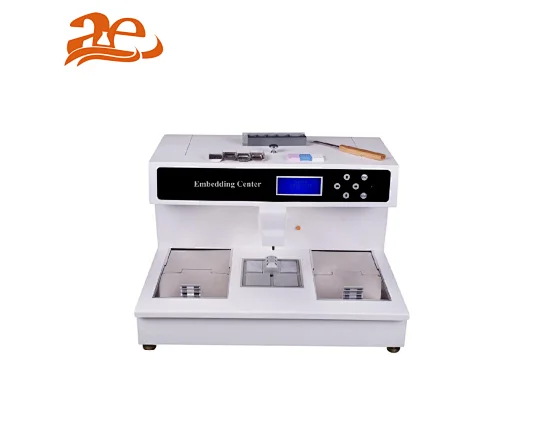

Tissue Embedding Center AE-6D (without Cold Plate )
It is designed for use in pathology laboratories and for embedding histological tissue samples only in molten paraffin for the following tasks: To embed the sample, melt the solid paraffin and keep the melted paraffin at the required temperature.
AE-6D
1
Quantity:
Tissue Embedding CenterAE-6D (without Cold Plate )
It is designed for use in pathology laboratories and for embedding histological tissue samples only in molten paraffin for the following tasks: To embed the sample, melt the solid paraffin and keep the melted paraffin at the required temperature.
Features:
+The newest high technology and Button Panel Control, new type of heating material.
+Automated processor control system make it possible for presetting the start time and temperature of any day.
+Special nano technical make it heat up quickly and equably.
+The LCD display can show you the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.
+Inductive head lamp and metal switch ,user can touch the switch by tweezers or knifes to control the paraffin.
+Automatic memory the presetting temperatures and start to work based on the time.
+Large capacity paraffin bath can contain enough paraffin for use at one time.
+Multilevel security protection system.
+There are 3 heating hole for forceps in two side of the paraffin nozzle .
+Magnifying glasswithlampis optional accessory
+Collection drawer to collect paraffin from working table
Specification:
+Capacity of the paraffinbath : 6000 ml.
+Melting paraffin prefabricate: 0 ~99℃
+Complete machine consuming more electricity: Less than 1KVA
+Control mode: Auto, foot
+About 120pcs of molds or 140pcs cassettes for each hot reservoir
+Environment temperature: 0℃~ 40℃
+Time control: Switch on and switch off time of the machine is set in 24 hours optionally.
+Nominal voltage: AC110V-220V±10％.
+Rated frequency:50Hz/60Hz
+Dimension: 60x52x36.5cm
+Weight: 40kg(for AE-6D)
Standard Accessory
+1 Foot Switch
+4 pcs Tissue Molds
+1 pcPower Wire
+2 pcs Fuse
Optional Accessory
Coldplate
