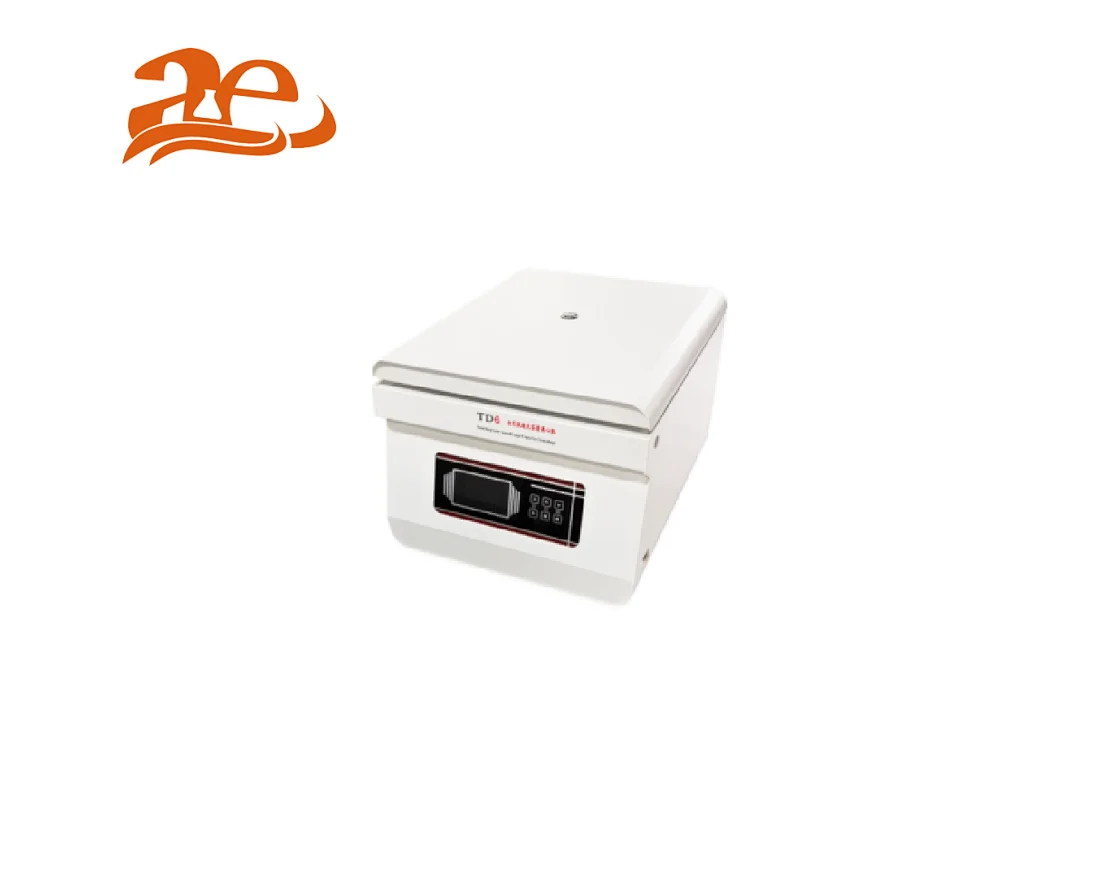

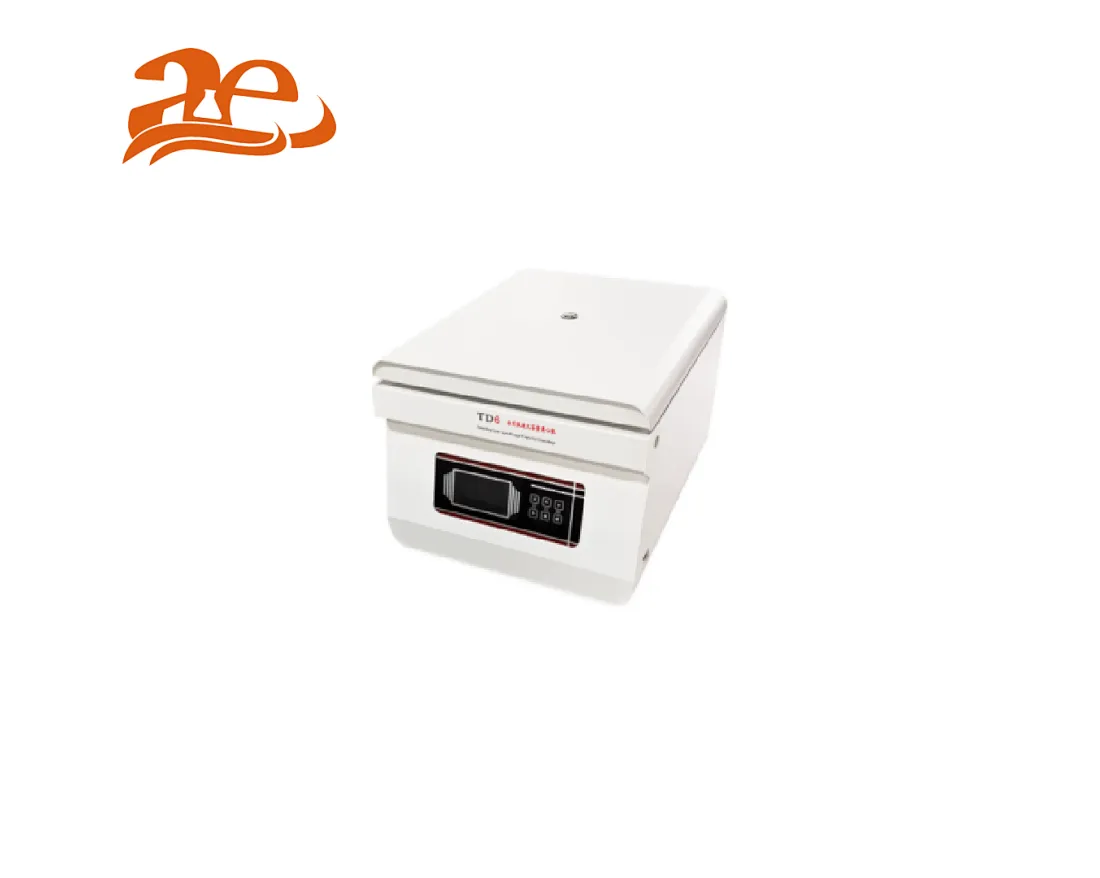

Tabletop Low-Speed Large Capacity Centrifuge TD6
Product Introduction
TD6 is low speed Large Capacity centrifuge, Which is the idea machine for Biological, hospital clinics laboratories,Epidemic prevention stations and to separate samples of blood, plasma, Urine and so on.
Features
1.Stainless Steel Chamber, Full metal structure and microprocessor controlled
2.Large capacity and many Rotors for choose, to meet the requirement of user
3.Safety Interlock system that prevents opening the centrifuge lid during running.
4.With air cooling fans to avoid high temperature with long time working.
5.Digital or LCD display for choose, which indicated the Speed, time, RCF etc.
6.10 programs can be stored, quickly recall the last used program.
7.Imbalance sensor, Over speed protection.
8.With Emergency lid lock release, in case of power off.
Technical Parameters
Model | TD6 | ||
Max Speed | 6000r/min | ||
Speed Accuracy | ±30rpm | ||
Max RCF | 5600×g | ||
Timer Range | 0~99min | ||
Rotor No. | Rotor Capacity | Speed (r/min) | RCF (xg) |
No.1 Angle Rotor | 12×10/15ml | 6000 | 5600 |
No.2 Swing Rotor | 24×5ml | 4200 | 3120 |
No.3 Swing Rotor | 108×5ml | 4000 | 4200 |
No.4 Swing Rotor | 16×10/15ml | 5000 | 4100 |
No.5 Swing Rotor | 8×50ml | 4200 | 3120 |
4×50ml | |||
No.6 Swing Rotor | 8×100ml | 4200 | 3120 |
No.7 Swing Rotor | 4×500ml | 4000 | 3600 |
No.8 Well Plates Rotor | 2×2×96holes | 4000 | 2300 |
Timer Range | 0~99mins | ||
Noise | ≤65dB(A) | ||
Power Supply | AC220V & 110V 50Hz 5A | ||
Dimension | 602×502×412mm(L×W×H) | ||
Weight | 52kg | ||
