semi automatic microtome

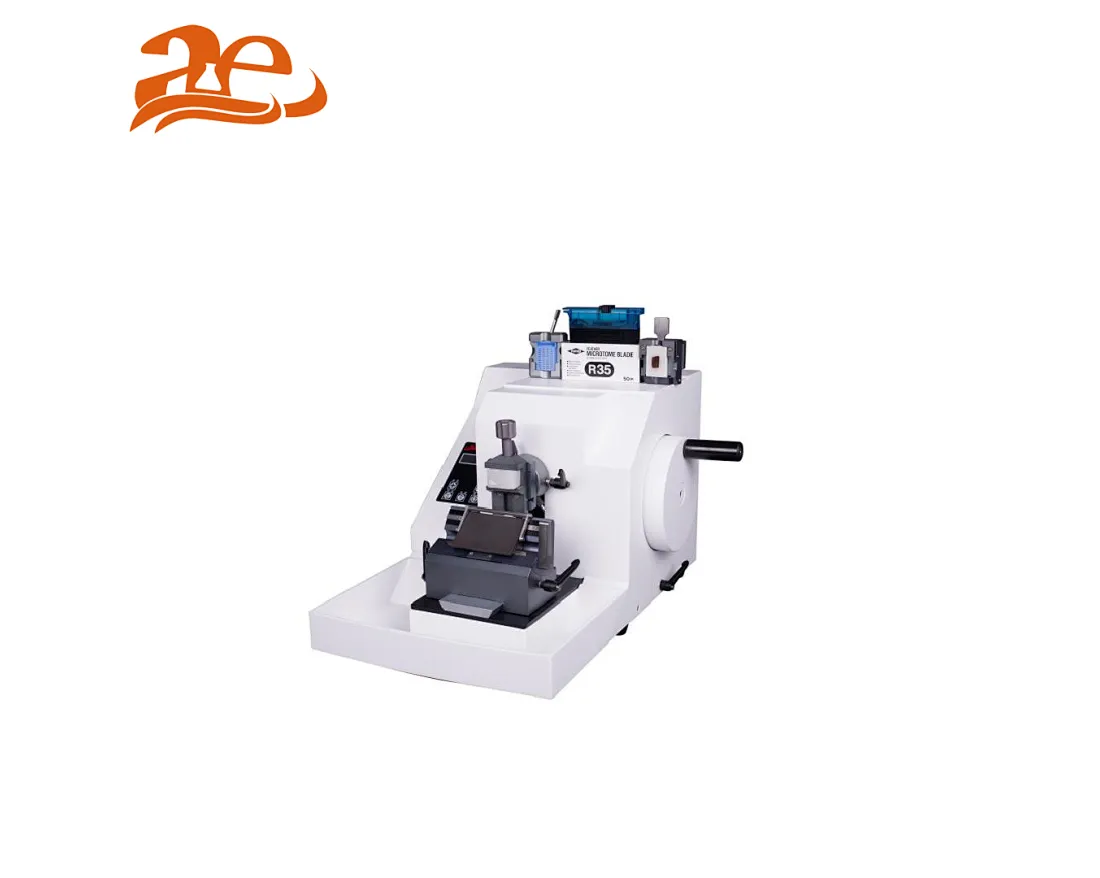

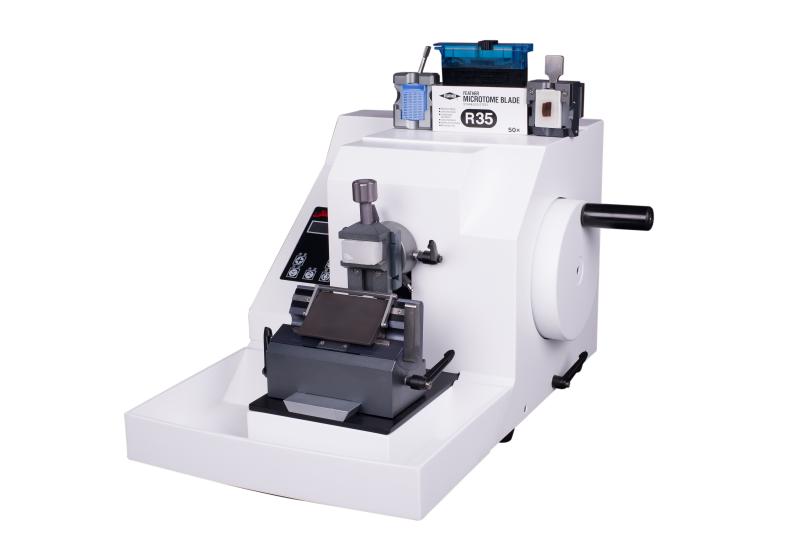

Semi Automatic Rotary Microtome AE-335(Button Panel)
Semi Rotary Microtome are Most advanced rotary microtomes, used to produce thin sections of specimens of different hardness in both routine and research applications in biology, medicine and industry.
AE-335(Button Panel)
1
Quantity:

Semi Automatic Rotary Microtome AE-335(Button Panel)

Semi Rotary Microtome are Most advanced rotary microtomes, used to produce thin sections of specimens of different hardness in both routine and research applications in biology, medicine and industry.

Product specifications :

+Adopted Germany Stepper motor ensure slice more precisely ,more reliable and quiet.
+Special Blade carrier can use both of High profile blade and Low profile blade
+The LCD screen shows slice and trimming thickness ,section counter ,keyboard with controls for thickness, mode and speed
+Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer .
+The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible
+The waste tray can be disassembled easily
+Sample orientation:8°along the X-Y-axis, rotate 360°
+Protection guard
+Safety alarm system , overload protection function, sleep mode protection
+Universal cassette clamp and standard specimen clamp

Technical Data

• Section thickness range: 0.5- 100μm

Setting values :

From 0.5-2μm in 0.5μm –increments

from 2-10μm in 1μm –increments

Form 10-20μm in 2μm -increments

Form 20-50μm in 5μm -increments

Form 50-100μm in 10μm -increments

• Trimming section thickness range :5-500μm (600μm is optional )

From 5-10μm in 10μm –increments

From 10-100μm in 10μm –increments

Form 100-200μm in 20μm -increments

Form 200-500μm in 50μm -increments

• Horizontal specimen stroke :20 mm(28mm is optional )

• Vertical specimen stroke : 60mm(70mm optional )

• Specimen feed speed 1250/s (click) , 2000μm/s(keep pressing)

• Specimen retraction :12μm

• Precision error: ± 5%

• Maximum section size: 50 × 45mm/55x55mm optional

• Dimension : 32 x 50 x 30cm

• Net weight：30kg

Standard Accessory

2 types Clamp

1 Blade Carrier (for disposable blade )

1 Waste Tray

4 pcs Tissue Molds

50pcs Cassettes

2 pcs Fuse

Optional Accessory

Blade Carrier(for Blade holder or Steel knife)

Blade Holder

Microtome Disposable Blade

Steel Knife
