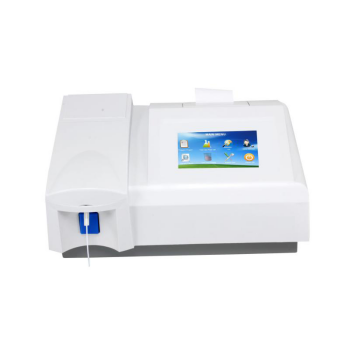

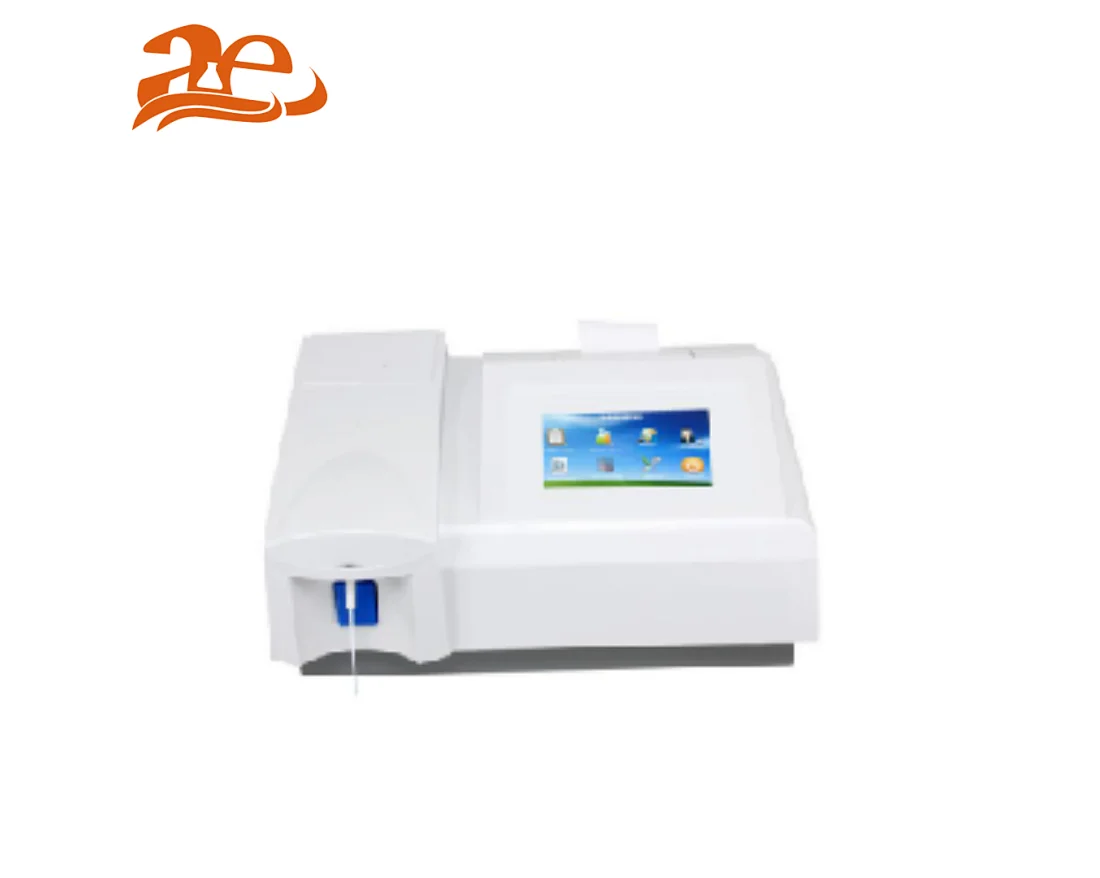

AELABSK3001 Semi-Auto Chemistry Analyzer
Chemistry analyzers are medical laboratory devices used to calculate the concentration of certain substances within samples of serum, plasma, urine and/or other body fluids. Substances analyzed through these instruments include certain metabolites, electrolytes, proteins, and/or drugs.
Features:
Technical Specifications:
Item | Parameters |
Test mode | Kinetic, End point, Two point |
wavelengths | 5 wavelength,340, 405, 505, 560, 630 nm |
Absorbance range | 0~4.500 Abs |
Absorbance precision | outside 0.0001 Abs , inside 0.00001 Abs |
Repeatability CV | < 1% |
carry over | < 1% |
Incubator | 37℃,30℃,25℃,Precision : ±0.1℃ |
Sample volume | 0~3000 uL (≥500uL recommend) |
Flow cell | 32 uL quartz glass, 10 mm |
Data Storage | ≥10000 |
Screen | 5 inches color LCD, Touch screen |
Printer | Internal thermal printer, paper: Ф30*57mm |
Order | Name | Quantity |
1 | Semi-auto chemistry analyzer | 1 |
2 | Power line | 1 |
3 | 12V DC power adaptor | 1 |
4 | Ground cable line | 1 |
5 | Touch pen | 1 |
6 | Thermo sensitive paper | 1 |
7 | Spare pump tube | 1 |
8 | Waste bottle | 1 |
9 | Operation manual | 1 |
10 | Packing list | 1 |
11 | QC certificate | 1 |
12 | Lamp assembly | 1 |
