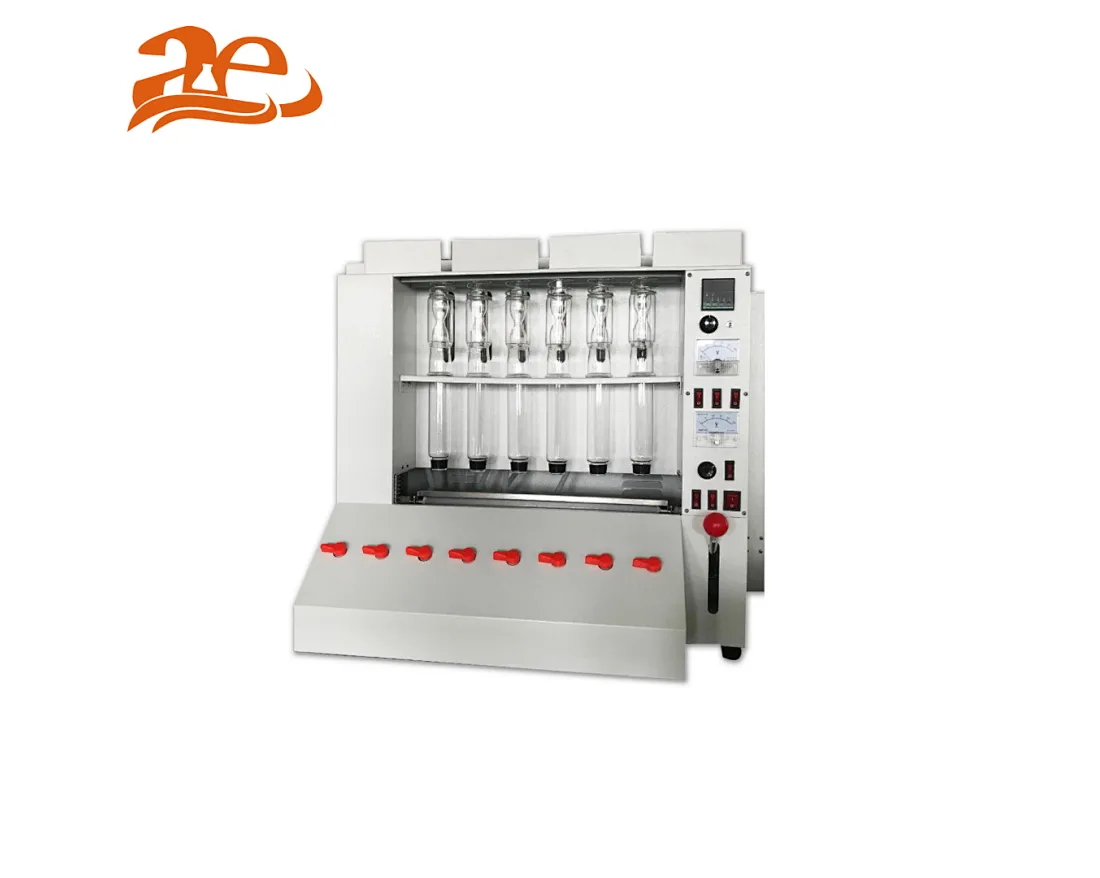

AELAB Raw Fiber Analyzer / Coarse Fiber Analyzer
Fiber Analyzer is a scientific instrument used in various industries, including the textile, paper, and food industries, to determine the fiber composition of a sample. The instrument uses advanced optical and mechanical technologies to identify and quantify the fibers present in a sample.
AE-CXC-06
Quantity:
Raw Fiber Analyzer / Coarse Fiber Analyzer
Raw /Coarse Fiber Analyzer tests raw fiber content according to acid and alkali boiling method. It adopts accurate concentration acid and alkali to boil samples in particular condition, then remove soluble substances by ether, deduct the amount of minerals by high temperature burning.
Raw /Coarse Fiber Analyzer tests raw fiber content according to acid and alkali boiling method. It adopts accurate concentration acid and alkali to boil samples in particular condition, then remove soluble substances by ether, deduct the amount of minerals by high temperature burning.
Fiber Analyzer is a scientific instrument used in various industries, including the textile, paper, and food industries, to determine the fiber composition of a sample. The instrument uses advanced optical and mechanical technologies to identify and quantify the fibers present in a sample.
Technical Specifications:
Technical Specifications:
| Model | AE-CXC-06 |
| Measuring object | Raw / Coarse fiber content in various kinds of grain, feed, food and other agriculture and sideline products |
| Measuring sample quantity | 6/times |
| Reproducibility error | Raw fiber level < 10% absolute value error≤0.4% Raw fiber level >10% absolute value error≤4% |
| Measuring time | about 100min (including acid 40min, alkali 40min, filter and wash 20 min) |
| Power | AC220V/50HZ, 2800W |
| Water supply | water pressure >1.5MPa Water temperature <20°C |
| Size | 670×450×670mm |
| Weight | 30kg |
