portable colorimeter

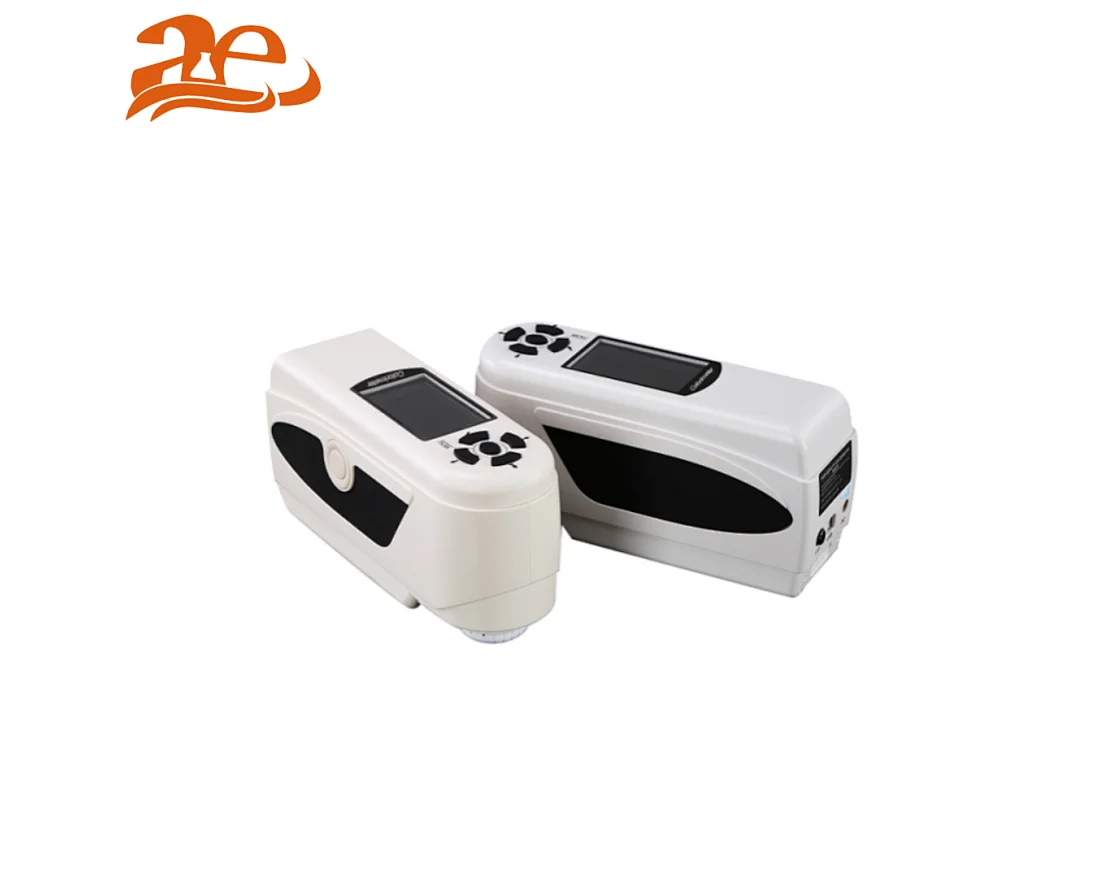

Portable Colorimeter
The colorimeter is widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing,food, medical, cosmetic, automotive, toy...industries.

The portable colorimeter can be used in clinical laboratories and hospitals to measure different biochemical components in a range of biological samples such as blood, plasma, serum, CSF, urine, and other body fluids.
AE-NR110,AE-NR200
1
Quantity:

Portable Colorimeter

The colorimeter is widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing,food, medical, cosmetic, automotive, toy...industries.

The portable colorimeter can be used in clinical laboratories and hospitals to measure different biochemical components in a range of biological samples such as blood, plasma, serum, CSF, urine, and other body fluids.

Features:

AE-NR110

+Built-in white plate parameters: No need to calibrate each time which realize rapid measurement.
+New Integrating Sphere Optical Path Design: Eliminating the stray light ofmain optical path and auxiliary optical path. Having the advantages of the highest measurement stability and precision.
+Equipped with rechargeable high-capacity Li-ion battery.
+Configure CQCS3 software: Connect PC computer to realize more functions. Cross Platform Measuring Aperture &Small Area Measuring Aperture.

AE-NR200

+Leading Humanity Design and Convenient Operation: One-touch access to measurement interface; Structure design in line with ergonomics
+Stable Measurement Performance : The repeat-ability △E is 0.08.; Portable structure design is more conductive to keeping the instrument stable when using.
+Convenient and Fast Locating: Illumination locating is a fast, simple and convenient locating
+PC Software—Realize More Function Expansion: Perform color difference analysis,color difference cumulative analysis,chromaticity index, color sample database management, simulating object color, etc.
+Advanced Power Management Design: using high capacity Li-ion battery in colorimeter. It can measure more than 3000 times on one charge to ensure the stability of long time measurement.
Technical Specifications:

Model

AE-NR110

AE-NR200

Illuminating/View Geometry

8/d

Measure Aperture

Φ4mm

Φ8mm

Detector

Silicon photoelectric diode

Locating

Illuminating Locating/Cross Locating

Double Measure End Face

Large stable end face and small concave-convex end face

Color Space

CIEL*a*b*C*h* CIEL*a*b*CIEXYZ

Color Difference Formula

△E*ab △L*a*b* △E*C*h*

Light Source

D65 / LED blue light excitation

Errors Between Each Equipment

≤0.80ΔE*ab

≤0.50ΔE*ab

Storage

100pcs standards 20000pcs samples

Repeatability

Standard deviation within ΔE*ab 0.08, Average of 30 measurements of standard white plate

Packing Dimension

450*230*370 mm & 2.5KG

Power source

Rechargeable build-in lithium-ion battery 3.7V@3200mAh

Rechargeablelithium-ionbattery3.7V@3200mAh

Lamp Life

5 years, more than 1.6 million

measurements

3years,morethan1million

measurements

Charging Time

8 hours--100% electricity

Interface

USB

PC software

CQCS3 software

Optional

Miniature thermal printer, Powder Test Box, liquid/powder sample holder
