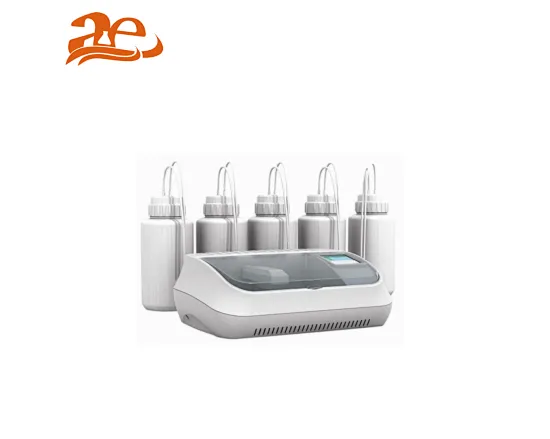

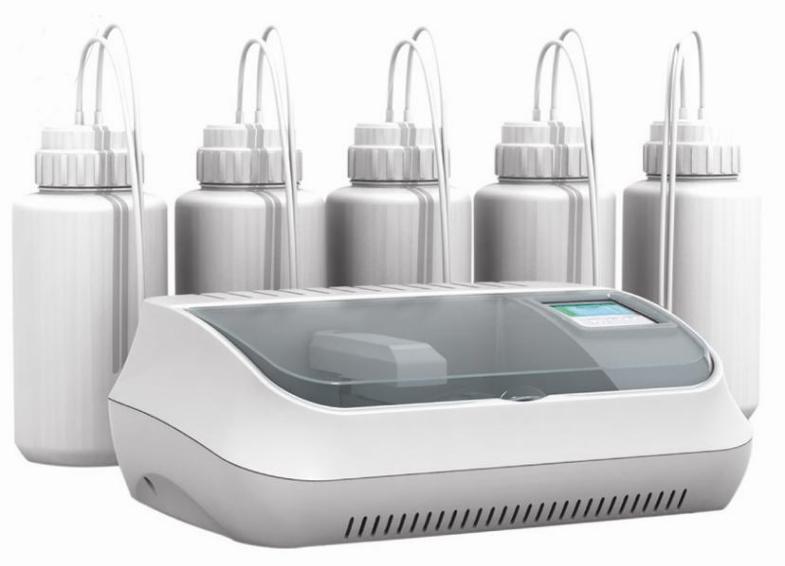

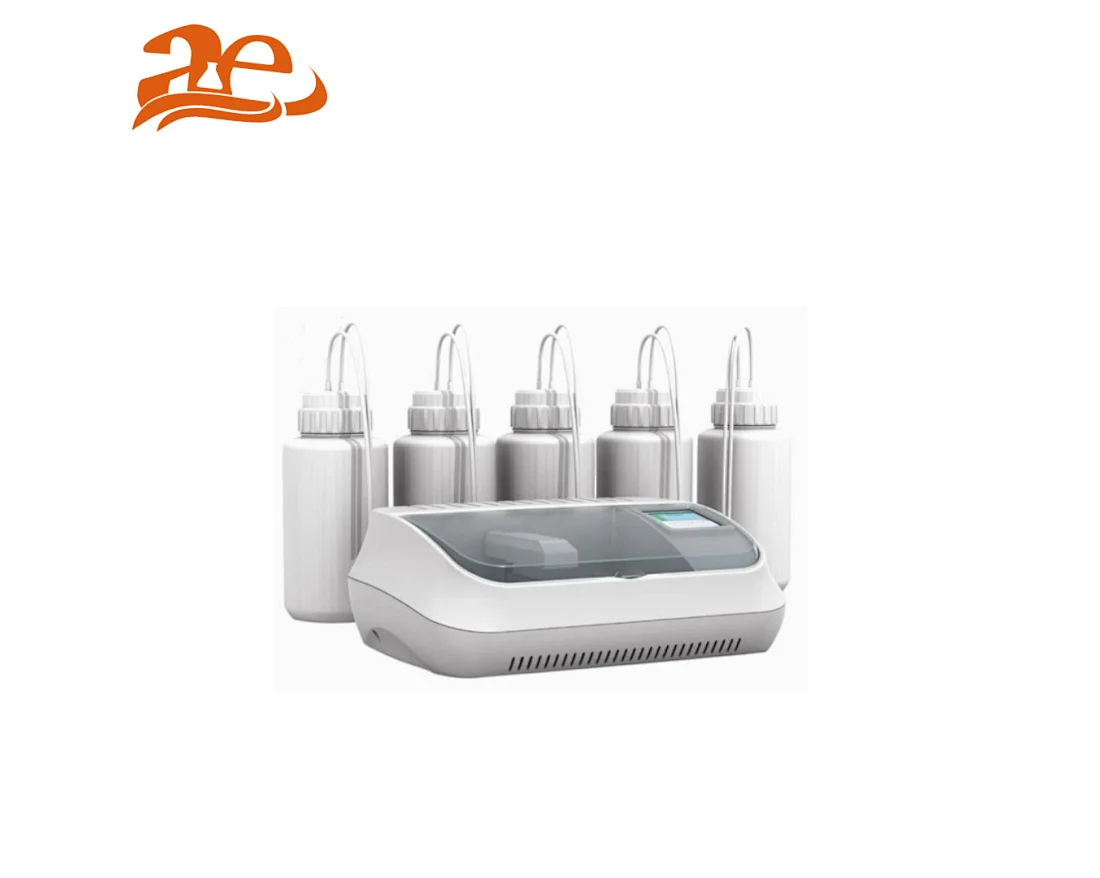

Micro-plate Washer/ Elisa Wahser

Microplate washers are laboratory instruments designed to control the procedure of washing experimental samples arranged in plate-based formats. Users load a plate and select a program; microplate washers then dispense, soak and aspirate liquids from the plate in seconds.

Characteristics:

1. Large LCD display, intelligent software, easy to operate.
2. Strong washing function, bottom washing and two positions aspiration make completed washing effect .
3. 8-channel or 12 channel optional.
4. Needle positions adjustable and up to 10 different needle positions pre-settable Pressure, volume & time adjustable, washing times, soap time pre-settable Pressure, volume & time adjustable, washing times, soap time pre-settable, whole plate or single strip reading.
5. Needle positions adjustable and up to 10 different needle positions pre-settable 5 position of needles are adjustable, fit for multi-kind of plates.
6. Self calibration and trouble alarm function.
7. Large memory to store up to 100 program

Technical Specification

Model:SAR-520B

Plate: 48/96 well and trips (U,V, Flat bottom)

Residual Volume: ≤2ul

Dispensing volume: Adjustable from 50 to 900 ul

Wash cycles:  1-16 optional

Mode of wash: From 1 to 12, row and rank, selectable

Soak time:  Up to 990 seconds adjustable

Shake time: Up to 990 seconds adjustable.

Display: Large LCD

Channel: 3 channels for washing liquid, 1 channel for waste liquid

Memory: up to 100 programs can be stored

Interface: RS232

Dimension: 450(L)mm×310(W)mm×170 (H)mm

Net Weight:  7.5kg

Power Supply: AC220V±10%, 50/60Hz; AC110V±10%, 50/60Hz
