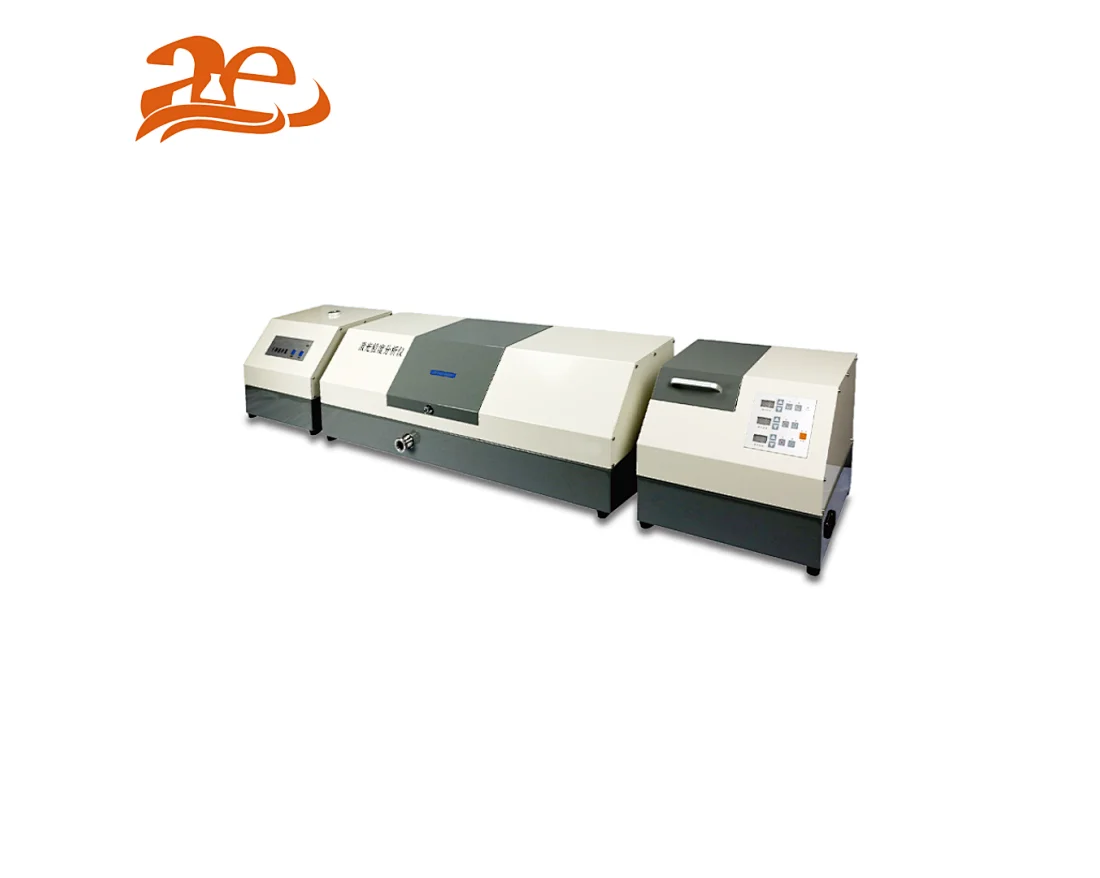

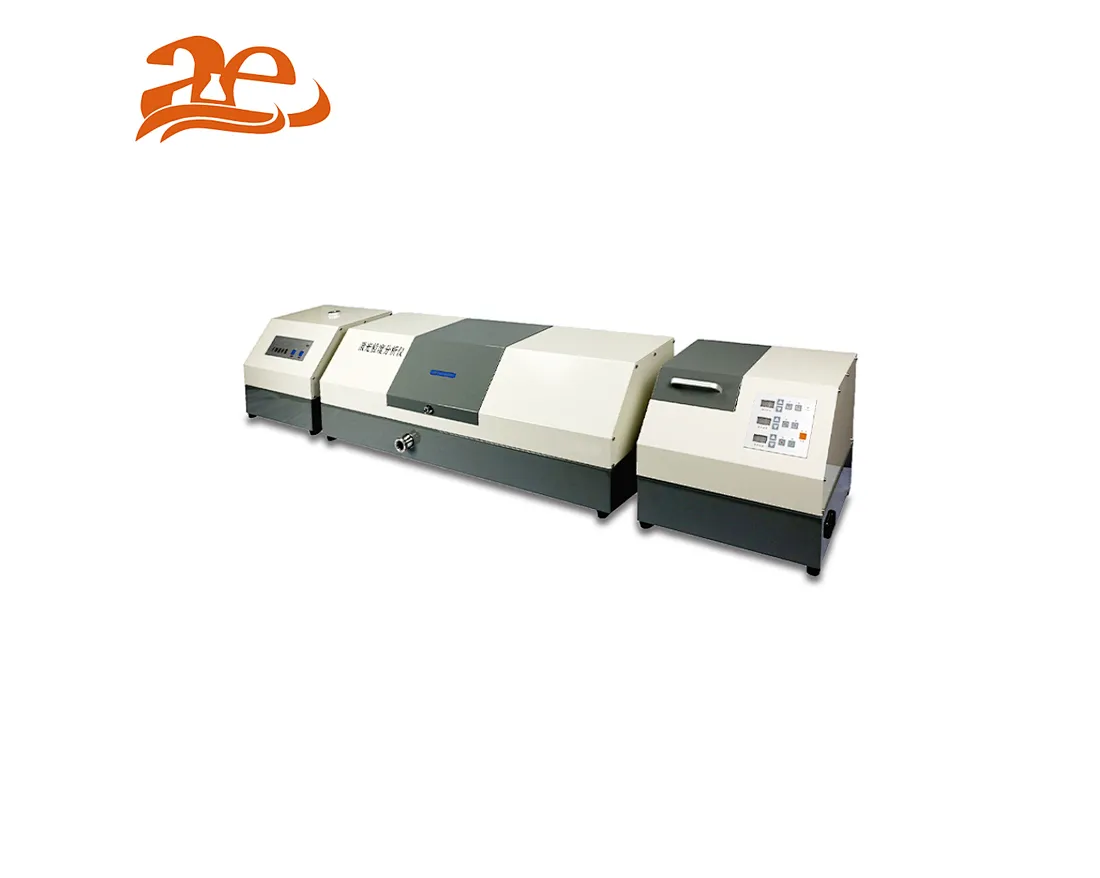

AELAB Laser Particle Size Analyzer
Particle size analyzers work in many areas of research and development, product testing, manufacturing and quality control. Particle size analysis is a very important test and is used for quality control in many different industries like Food and beverages,Pharmaceuticals,Aerosols and more.
WJL Series
Quantity:
LaserParticleSizeAnalyzer
Particle size analyzers work in many areas of research and development, product testing, manufacturing and quality control. Particle size analysis is a very important test and is used for quality control in many different industries like Food and beverages,Pharmaceuticals,Aerosols and more.
Particle size analyzers work in many areas of research and development, product testing, manufacturing and quality control. Particle size analysis is a very important test and is used for quality control in many different industries like Food and beverages,Pharmaceuticals,Aerosols and more.
Features:
+ Work principle: The laser particle size analyzer is based on full measuring range of Mie scattering theory, sufficiently considering the optics nature such as sample and decentralized medium refraction coefficient and so on. On the basis of laser illuminate size and the size distribution regular pattern of scattering light energy that comes from the sample inversely calculate out sample group.
+ Technique feature: The laser particle size analyzer work principle is well-developed, hardware design is very reasonable, the product is designed according to the international engineering standard ISO-13320, GMP Regulation and FDA/21CFR 11 absorbs England, America, Germany and other countries well-developed experience on the size analysis, all features of the product are domesticly and leading.
+ Illuminant: The laser particle size analyzer adopts He-Ne’s laser make illuminant, the wavelength is 0.6328 micron, wavelength is short, string breadth is narrow, stability is good, and laser power source and laser tube service life is more than 25000 hours.
+ Light electricity probe: The laser particle size analyzer light electricity system is designed uniquely. The primary detector is one, many assist detectors presenting non-uniform intercourse and three dimension fan-shaped ranges matrix rank. The largest test examination horn angle attainability is up to 135°
+ Light route: The laser particle size analyzer adopts a measuring range designed, the convergent light route is unique, decreasing Fourier lens, as a result the measurement range broader, the resolution is higher, the error is minimal.
Technical Specifications:
#laser particle analyzer system
#particle size analyzer price
Technical Specifications:
| Dispersion method | Specifications | Dimensions | Weight(Net) | |
| WJL-602 | Wet | Measurement range:0.1-600μm | 1000×330×320mm | 38kg |
| Error:＜±1%(national standard materials D50) | ||||
| Repetitiveness deviation: ＜±1%(national standard materials D50) | ||||
| WJL-606 | Wet | 1、Measurement range:0.05-800μm | ||
| 2、Error:＜±1%(national standard materials D50) | ||||
| 3、Repetitiveness deviation: ＜±1%(national standard materials D50) | ||||
| WJL-608 | Wet | 1、Measurement range:0.02-1200μm | ||
| 2、Error:＜±1%(national standard materials D50) | ||||
| 3、Repetitiveness deviation: ＜±1%(national standard materials D50) | ||||
| WJL-612 | Dry | Measurement range:0.1-600μm | Main system: 1000×330×320mm | 40kg |
| Error:＜±1%(national standard materials D50) | Dry sampling system:350×330×300mm | |||
| Repetitiveness deviation: ＜±1%(national standard materials D50) | ||||
| WJL-616 | Dry | 1、Measurement range:0.1-800μm | ||
| Error:＜±1%(national standard materials D50) | ||||
| Repetitiveness deviation: ＜±1%(national standard materials D50) | ||||
| WJL-618 | Dry | 1、Measurement range:0.1-1200μm | ||
| Error:＜±1%(national standard materials D50) | ||||
| Repetitiveness deviation: ＜±1%(national standard materials D50) | ||||
| WJL-622 | Wet/Dry | 1、Measurement range:0.1-600μm/ | Main system: 1000×330×320mm | 50kg |
| 2、Error:＜±1%(national standard materials D50) | Dry sampling system:350×330×300mm | |||
| 3、Repetitiveness deviation: ＜±1%(national standard materials D50) | Wet sampling system:350×330×300mm | |||
| WJL-626 | Wet/Dry | 1、Measurement range:0.05-800μm | ||
| 2、Error:＜±1%(national standard materials D50) | ||||
| 3、Repetitiveness deviation: ＜±1%(national standard materials D50) | ||||
| WJL-628 | Wet/Dry | 1、Measurement range:0.02-1200μm | ||
| 2、Error:＜±1%(national standard materials D50) | ||||
| 3、Repetitiveness deviation: ＜±1%(national standard materials D50) |
