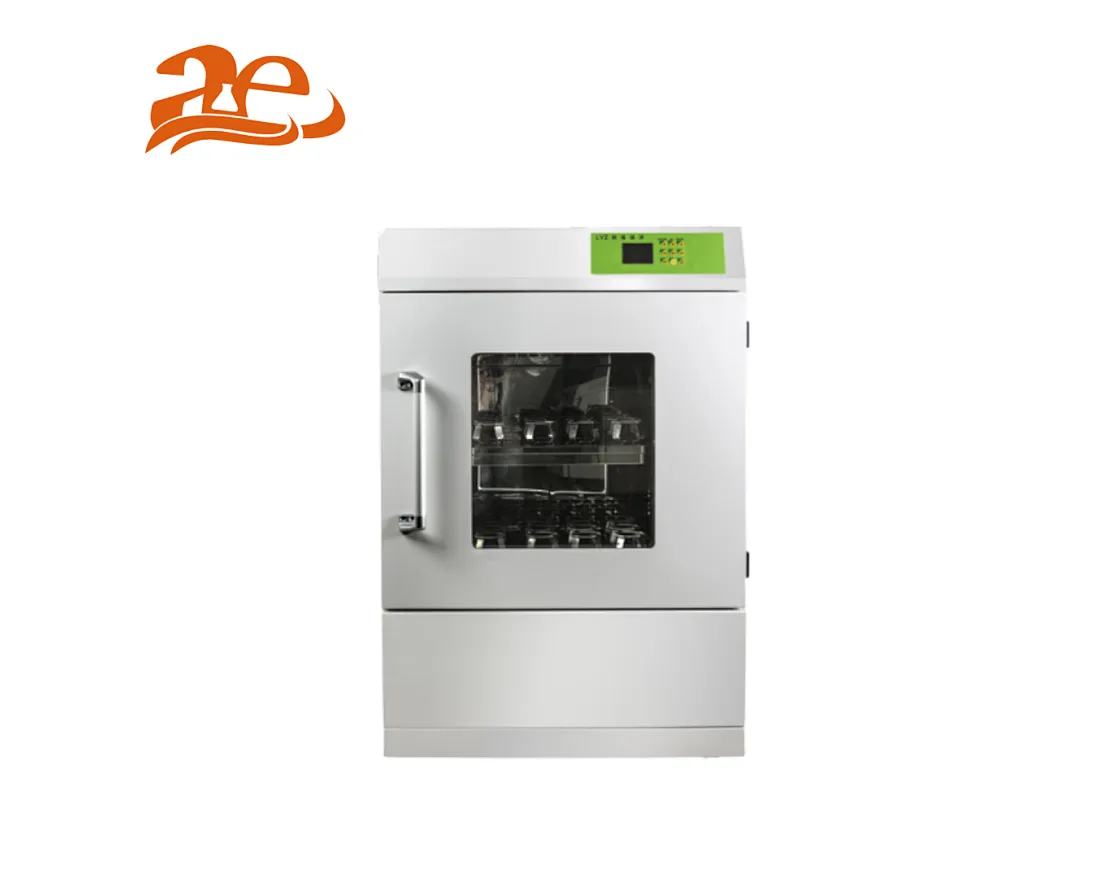

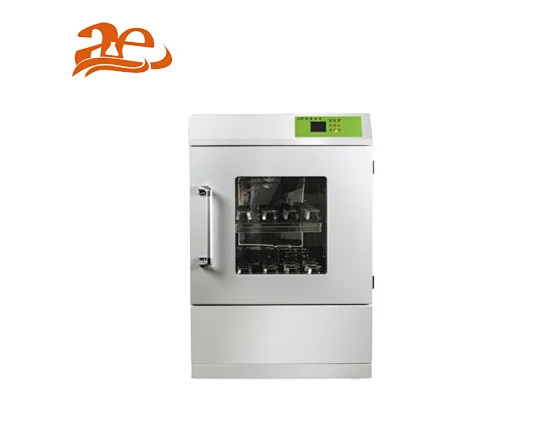

AELAB Horizontal Shaking Incubators AE-LYZ Series
Shaking Incubators are used in laboratory research applications to combine incubation and mixing all in one unit.
AE-LYZ-2102C (Single door) AE-LYZ-2102 (Double door) AE-LYZ-2112B (Double door)
Horizontal Shaking Incubators AE-LYZ
Shaking Incubators are used in laboratory research applications to combine incubation and mixing all in one unit.
Shaking incubators are often used for cell culturing, cell aeration, and solubility studies. Eliminating the need of placing a separate shaker inside an incubator, the instruments incorporate oxygen and evenly distribute nutrients throughout the culture media. In addition to offering stable temperature conditions, the shaking incubators use an orbital agitation at variable speeds to affect the growth of cell cultures.

+Integrated with incubator and shaker to save space and cost.
+High quality steel shell, polished stainless steel chamber.
+Unique slope design panel with large LCD display, better visual effect.
+With operation data memory and password locking function to eliminate faulty operation.
+Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
+When the measured temperature deviates from set temperature by 3℃ (can be set arbitrarily) will automatically stop heating and send out audible and visual alarms.
+AE-LYZ-2102C, AE-LYZ-2102,AE- LYZ-2112B equips with strong and fast refrigeration system for instant cooling requirements, automatic defrost.
+The most advanced large torque motor to ensure continuous work without maintenance.
+With large view window and built-in lighting for easy observation.
+Low noise , luxury and beautiful appearance.
+Equipped with leakage protection.

1. Universal Tray
2. Stainless steel flask clamp (50ml,100ml,250ml,500ml,1000ml,,2000ml,3000ml,5000ml available

(Single door)
(Double door)
(Double door)
Shaking Speed (rpm)40-300
Speed Accuracy (rpm)±1
SwingAmplftude (mm)Ф26
Standard Configuration250ml x 24250ml x 35 or 500ml x 24250ml x 45 or 500ml x 37
Maximum Capacity100ml x 48 or 250ml x 24
or 500ml x 18 or 1000ml x 12
250ml x 70 or 500ml x 48
or 1000ml x 24 or 2000ml x 8
250ml x 90 or 500ml x 74
or 1000ml x 36 or 5000ml x 8
Tray Size (mm)500x350740x460970x760
Power Rating (W)5507501420
Temperature Range (°C)4-60
Temperature Accuracy (°C)±0.1
Temperature Uniformity (°C)±1
Timing Range1-9999min
Power SupplyAC220V ~ 240V±10%  50 ~ 60HZ
Tray Included2
Volume WxDxH(mm)66x44x65170L84x52x64280L109.5x62.5x85582L
Exterior Size(WxDxH)mm70x56x12695x70x126120x82x160
Net Weight(kg)165240425
