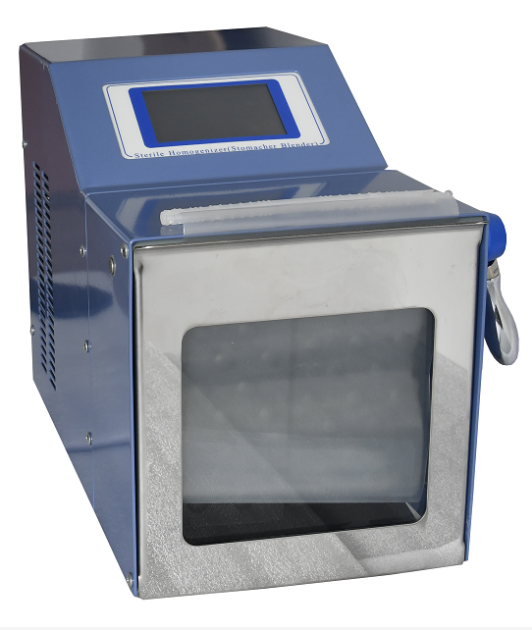

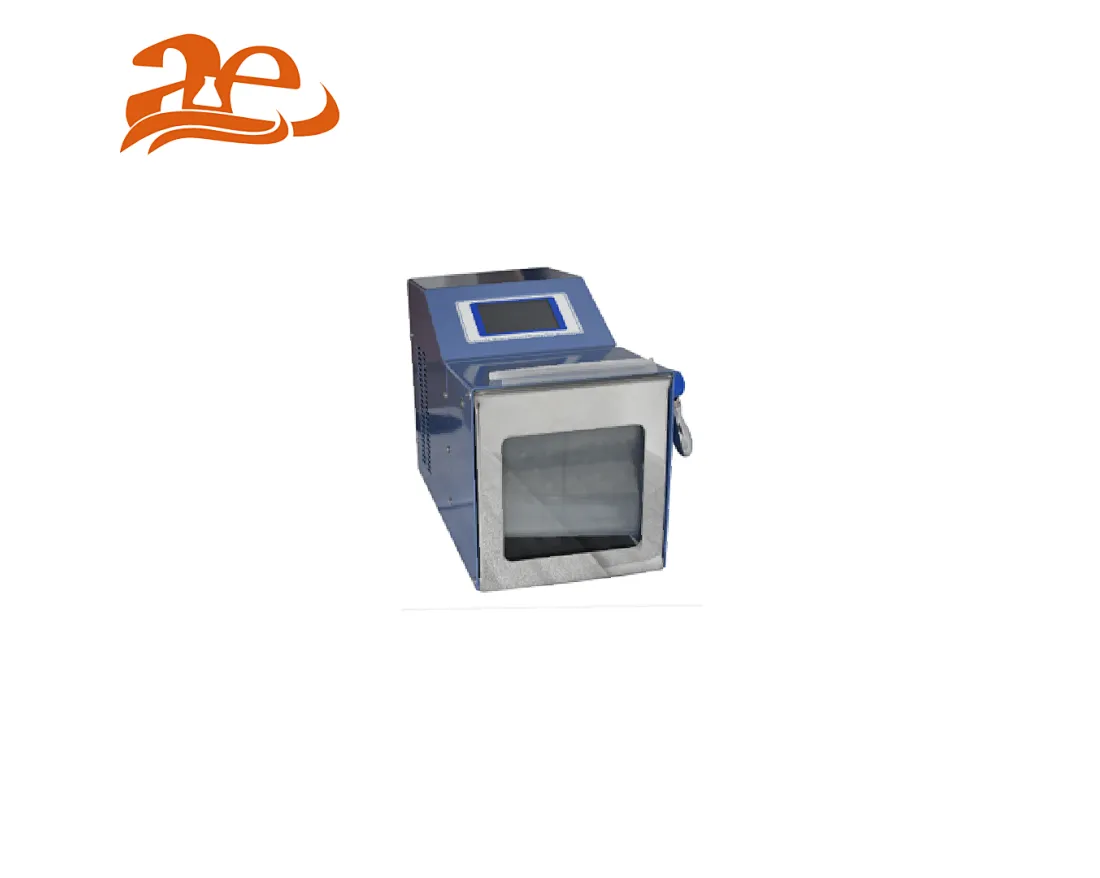

Homogenizer
Aseptic homogenizer, also known as beating homogenizer, is widely used in homogenization treatment of animal tissues and biological samples. It can be used in food, drug, cosmetics, clinical, molecular, toxin and bacterial detection fields, especially for the preparation of microbial test samples. The device can effectively separate the surface of solid sample and the microorganisms contained in it. The sample is packed in a disposable sterile homogenization bag without contacting with the instrument. It has the characteristics of soft homogenization, no pollution, no damage, no temperature rise, no sterilization and no washing of utensils. It meets the requirements of fast, accurate results and good repeatability. This product is also suitable for homogenization of tumor tissues (such as liver cancer, colorectal cancer, gastric cancer and breast cancer). It can not only obtain a large number of single cells (up to 2 * 105 in 2 minutes). If necessary, it can extend the homogenization time and accelerate the homogenization speed, so as to achieve soft fragmentation of tissue cells (such as liver, etc.).
Technical Specifications:
Model No | AE-12 (Heating sterilization type) | AE-05 (Sterile type) | AE-04 (Standard type) |
Control mode | Microcomputer control | Microcomputer control | Microcomputer control |
Parameter storage | 8-segment combination programming | 8-segment combination programming | 8-segment combination programming |
Display mode | 4.3 inch touch screen display | 4.3 inch touch screen display | 4.3 inch touch screen display |
Operation mode | touch screen | touch screen | touch screen |
Slap time | 0.1-99 minutes 59 seconds or continuous operation | 0.1-99 minutes 59 seconds or continuous operation | 0.1-99 minutes 59 seconds or continuous operation |
Clapper material | Stainless steel with special extrusion protective cover | Stainless steel with special extrusion protective cover | Stainless steel with special extrusion protective cover |
Slap speed | 3-12 times / S | 3-12 times / S | 3-12 times / S |
Heating function | Yes | - | - |
Temperature range | Room temperature - 60 ℃ | - | - |
Disinfection function | Yes,the disinfection wavelength is 253.7nm | Y,the disinfection wavelength is 253.7nm | - |
Effective volume | 3～400ml | 3～400ml | 3～400ml |
Aseptic bag size | 17*30cm | 17*30cm | 17*30cm |
Tank body | Stainless steel with anticorrosive plastic spraying | Stainless steel with anticorrosive plastic spraying | Stainless steel with anticorrosive plastic spraying |
Slap spacing | 0～50mm | 0～50mm | 0～50mm |
Startup mode | slow-start | slow-start | slow-start |
Pause function | Yes | Yes | Yes |
Power | 220V/500W | 220V/220W | 220V/200W |
Anti pinch function | With automatic stop anti pinch function | With automatic stop anti pinch function | With automatic stop anti pinch function |
Other function | Removable window with terpering glass | Removable window with terpering glass | Removable window with terpering glass |
Voice prompt function | Yes | Yes | Yes |
Size | 420*230*330mm | 420*230*330mm | 420*230*330mm |
Weight (net weight) | 19KG | 18KG | 18KG |
Outer package size | 540*310*410 | 540*310*410 | 540*310*410 |
