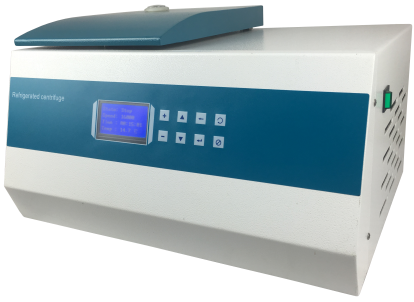

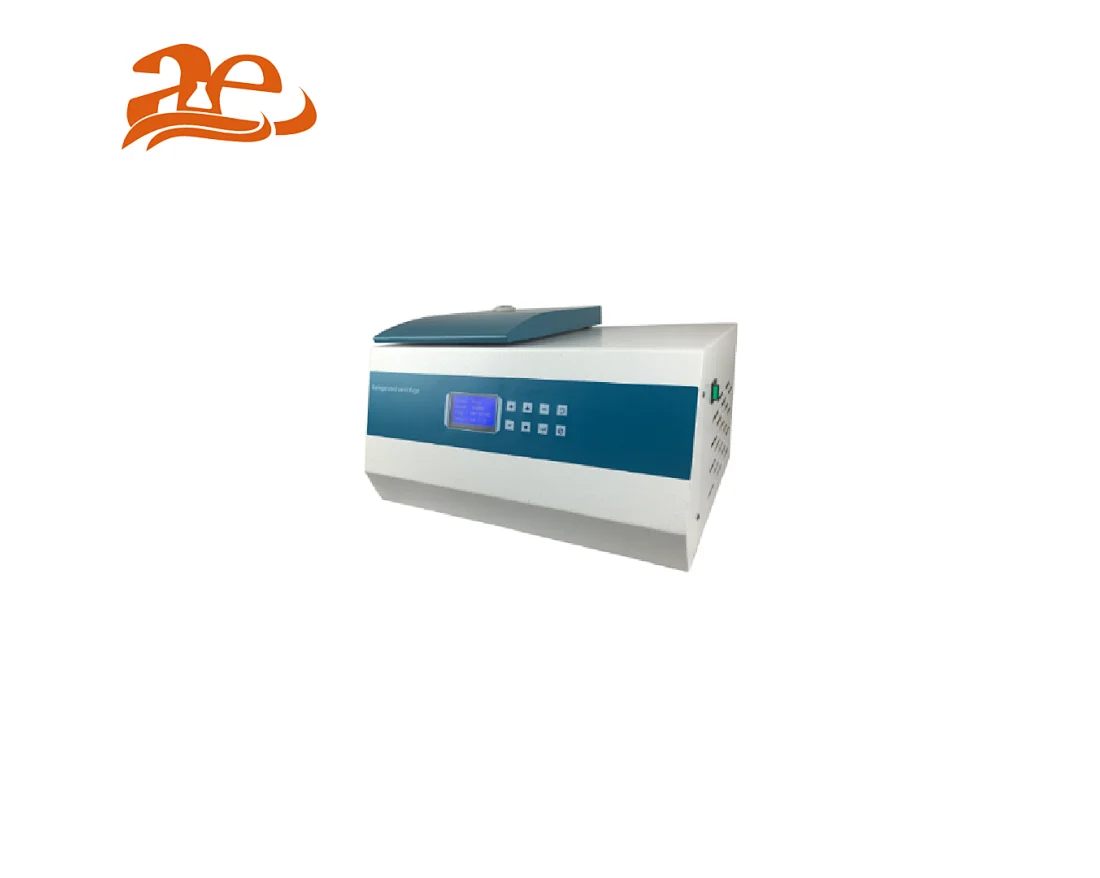

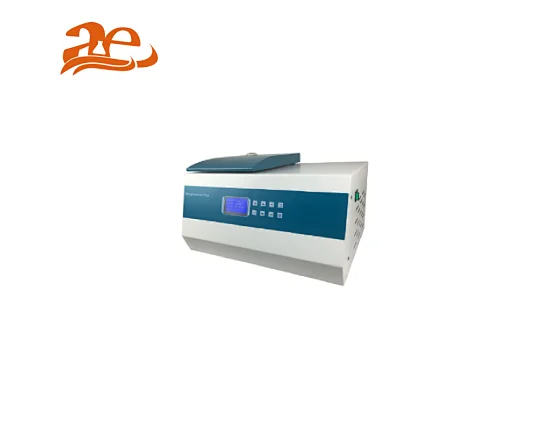

High-speed Refrigerated Centrifuge
AE-HC-16F/HC-20F
|
Technical Specifications:
Model | AE-HC-16F | AE-HC-20F |
MAX RPM | 16000 RPM | 20000 RPM |
Max RCF | 17800xg | 26500xg |
Timer | 0-99min | 0-99min |
AngleRotor capacity | 1.5ml/2ml x12 (standard) | 1.5ml/2ml x12 (standard) |
Temperature range | -10℃~+40℃ | -10℃~+40℃ |
Temperature accuracy | ±2℃ | ±2℃ |
Voltage | 220V 50Hz | 220V 50Hz |
Dimension(mm) | 560x460x370mm | 760x520x390mm |
Weight | 65kg | 100kg |
Description | Rotor NO. | Max speed | Rotor capacity | Max RCF |
HC-16F | ||||
Standard rotor 1 | A160212 | 16000 | 1.5/2 ml×12 | 17800×g |
Optional rotor 2 | A130224 | 13500 | 1.5/2 ml×24 | 17000×g |
Optional rotor 3 | A121012 | 12000 | 10ml×12 | 14300×g |
Optional rotor 4 | A130510 | 13000 | 5ml×10 | 11400×g |
Optional rotor 5 | A115006 | 11000 | 50ml×6 | 11000×g |
Optional rotor 6 | A130048 | 13000 | 0.5ml×48 | 12800×g |
Optional rotor 7 | A1010004 | 10000 | 100ml×4 | 9680×g |
Optional rotor 8 | S044802 | 4000 | 48 holes microplate×2 | 1400×g |
HC-20F | ||||
Standard rotor 1 | A200212 | 20000 | 1.5/2 ml×12 | 27800×g |
Optional rotor 2 | A130224 | 13500 | 1.5/2 ml×24 | 17000×g |
Optional rotor 3 | A121012 | 12000 | 10ml×12 | 14300×g |
Optional rotor 4 | A130510 | 13000 | 5ml×10 | 11400×g |
Optional rotor 5 | A115006 | 11000 | 50ml×6 | 11000×g |
Optional rotor 6 | A130548 | 13000 | 0.5ml×48 | 12800×g |
Optional rotor 7 | A1010004 | 10000 | 100ml×4 | 9680×g |
Optional rotor 8 | S044802 | 4000 | 48 holes microplate×2 | 1400×g |
