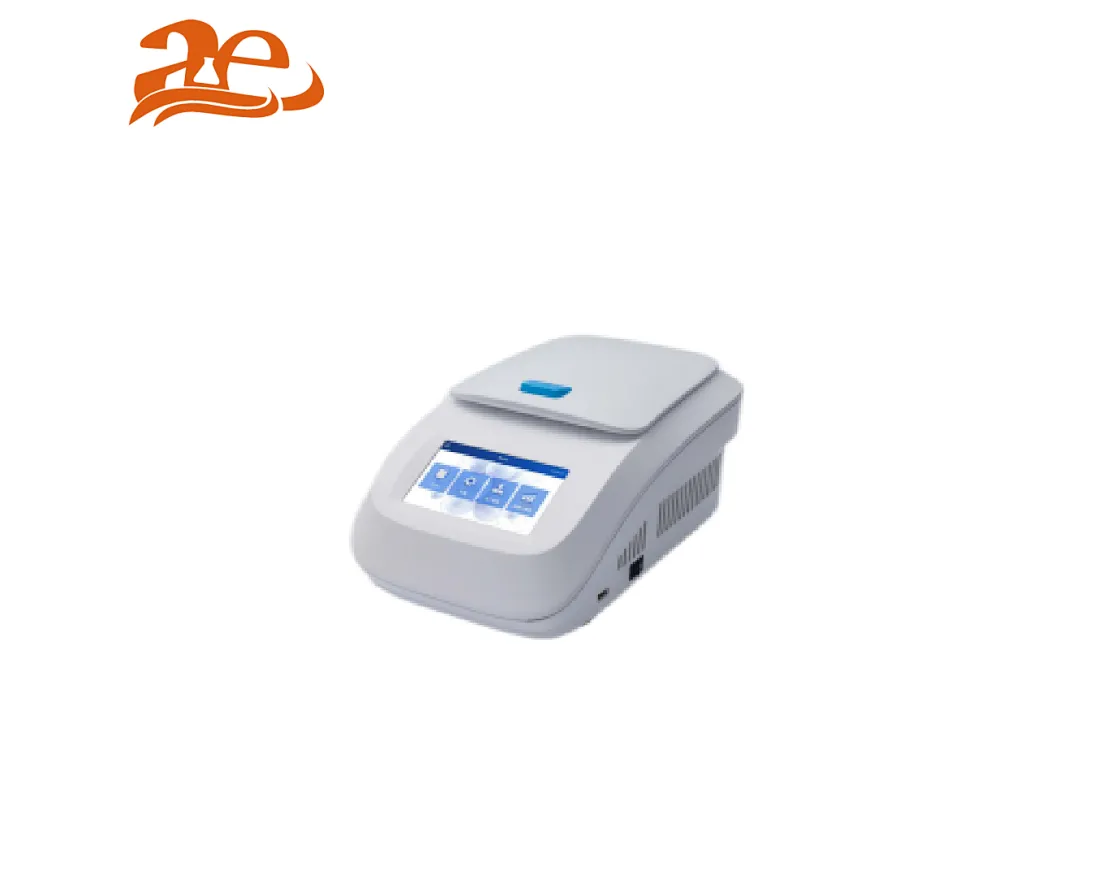

Gradient Thermal Cycler

This gradient PCR is ideal for thermal cycling and protocol optimization in molecular biology, medical, food, genetic testing and etc.

AE-CYL-008-1

Minimum order quantity: 1

Quantity:

AE-CYL-008-1 GradientThermal Cycler

This gradient PCR is ideal for thermal cycling and protocol optimization in molecular biology, medical, food, genetic testing and etc.

Features:

+Impact design, small size

+Excellent amplication due to high quality Semiconductor

+High precise temperature with good uniformity, quick heating up and cooling down benefit from advanced thermoelectric cooling and PID technologies.

+Extremly quiet

+30℃ gradient range, ideal for protocol optimization

+5-inch touch screen, easy to edit, operate, save programs

+Industrial grade operation system, can work 7x24hs

+Data saved to USB flash memory

Parameter:

Model	AE-CYL-008-1
Voltage	AC100~240V，50/60Hz
Capacity	96x0.2ml(PCR plate without/semi skirt), 12x8x0.2ml strips, 8x12x0.2ml strips, 0.2ml tubes (height 20~23mm)
Temperature Control ways	Block or Tube
Block Temperature Range	4~99.9℃
Timer	1s~99min59sec/0(infinity)
Block Temperature Accuracy	±0.2℃
Block Temperature Uniformity	±0.25℃
Heating Up Rate (average)	3℃ /S
Cooling down Rate (average）	2.5℃ /S
Max.Heating Rate	4.5℃ /S
Max Cooling Rate	4.0℃ /S
Gradient	Max. 30℃, Accuracy ±0.3℃
Gradient Temperature Accuracy	±0.3℃
Block Temperature Accuracy	0.1℃
Heating Lid Temperature range	RT+30℃ ~105℃
Automatically Heating Lid	Shut off automatically when sample lower than 30℃ or program over
Timer Increasing / Decreasing	- 599~599 S for Long PCR
Temperature Increasing / Decreasing	- 9.9~9.9℃for Touchdown PCR
Programs	>100
Max. Cycles	99
Max.Steps	30
Program Pause Function	YES
16℃Temperature Holding Function	Forever
Real-time operation status	Image-text displayed
Interface Port	USB 2.0
Power	750W
Dimension（W×D×H）	200x300x170 (mm)
Weight	4.5kg
