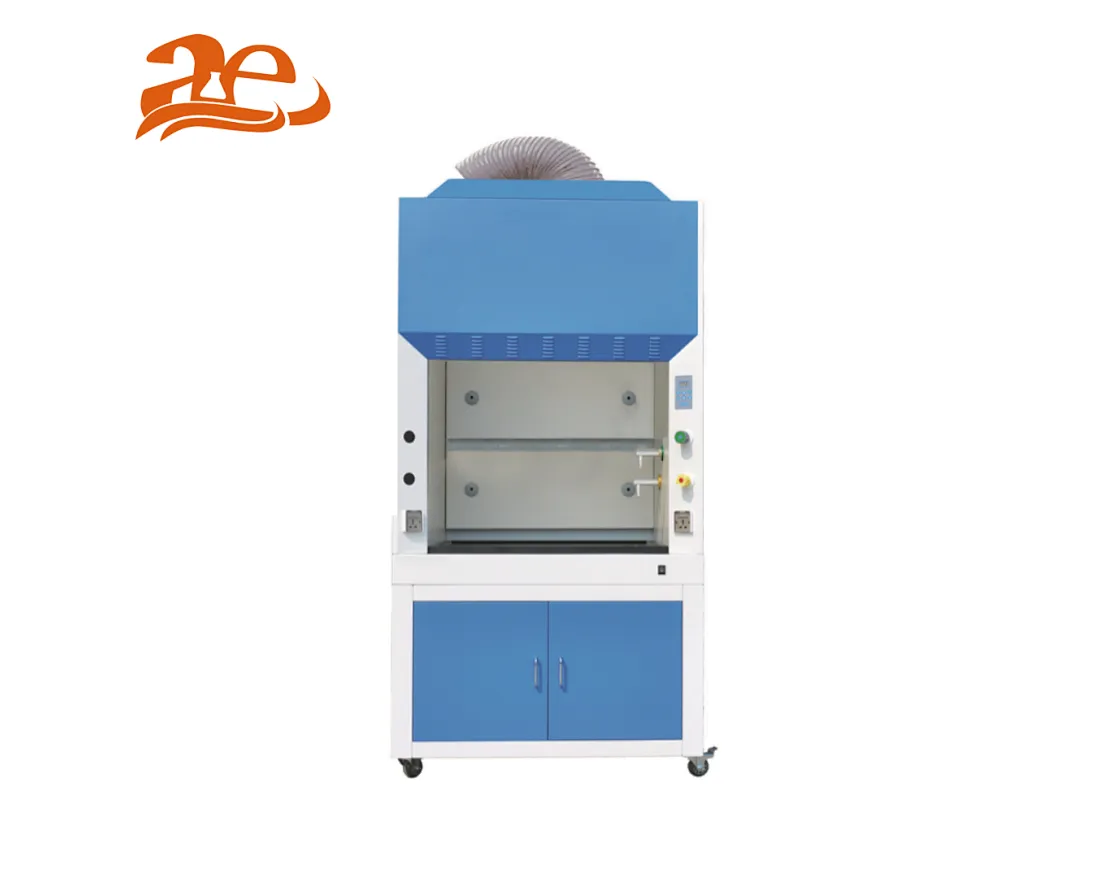

AELAB Fume Hood AE-FH Series
The laboratory chemical fume hood is the most common local exhaust ventilation system used in laboratories and is the primary method used to control inhalation exposures to hazardous substances.
AE-FH1000(A) AE-FH1200(A) AE-FH1500(A) AE-FH1800(A)
Quantity:
AE-FH Series Fume Hood
The laboratory chemical fume hood is the most common local exhaust ventilation system used in laboratories and is the primary method used to control inhalation exposures to hazardous substances.
Features:
+UV lamp for sterilization.
+Resistant to weak acid and alkali.
+Adjustable air speed: 9 levels
+Motorized front window, height adjustable.
+Microprocessor control system, LED display.
+With memory function in case of power-failure.
Technical Specifications:
| Model | AE-FH1000(A) | AE-FH1200(A) | AE-FH1500(A) | AE-FH1800(A) | |
| External Size (W*D*H) | 1040*800*2200mm | 1240*800*2200mm | 1540*800*2200mm | 1840*800*2200mm | |
| Internal Size (W*D*H) | 820*670*730mm | 1020*670*730mm | 1320*670*730mm | 1620*670*730mm | |
| Work Surface Height | 850mm | ||||
| Max Opening | 520mm | ||||
| Air Velocity | 0.3~0.8m/s | ||||
| Noise | ≤68dB | ||||
| Exhaust Duct | PVC, Standard length: 4 meters. | ||||
| Φ300mm | |||||
| LED Lamp | 8W*1 | 12W*1 | 16W*1 | 16W*1 | |
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||
| Blower | Built-in centrifugal blower; Speed adjustable. | ||||
| Front Window | 5mm toughened glass; Motorized; Height adjustable. | ||||
| Power Supply | AC220±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Consumption | 400W | 400W | 500W | 500W | |
| Material | Exterior | Cold-rolled steel with anti-bacteria powder coating. | |||
| Interior | High grade melamine board with good acid and alkali resistance function | ||||
| Work Table | Chemical resistant phenolic resin | ||||
| Stand Accessory | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | ||||
| Total load of 2 waterproof sockets: 500W | |||||
| 4-meter PVC exhaust duct, pipe strap*2 | |||||
| Optional Accessory | Active carbon filter | ||||
| Gross Weight | 286kg | 317kg | 350kg | 400kg | |
| Package | Main Body | 1190*990*1690 mm | 1390*990*1690 mm | 1690*990*1690mm | 1990*990*1690mm |
| Base Cabinet | 1190*990*980mm | 1390*990*980mm | 1690*970*970mm | 1990*990*980mm | |
