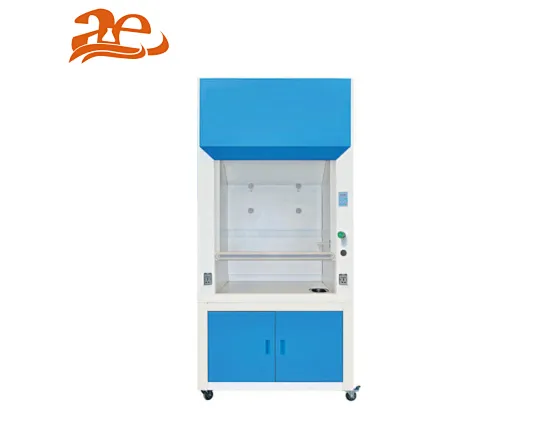

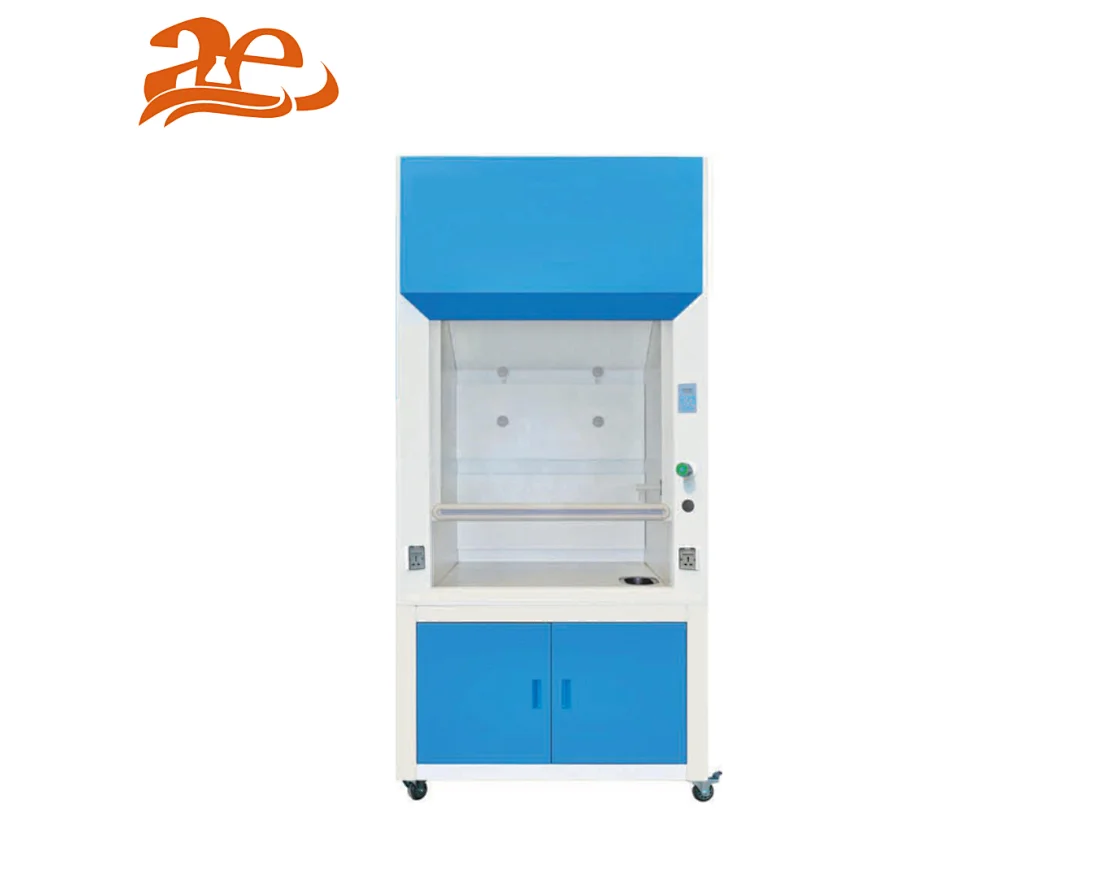

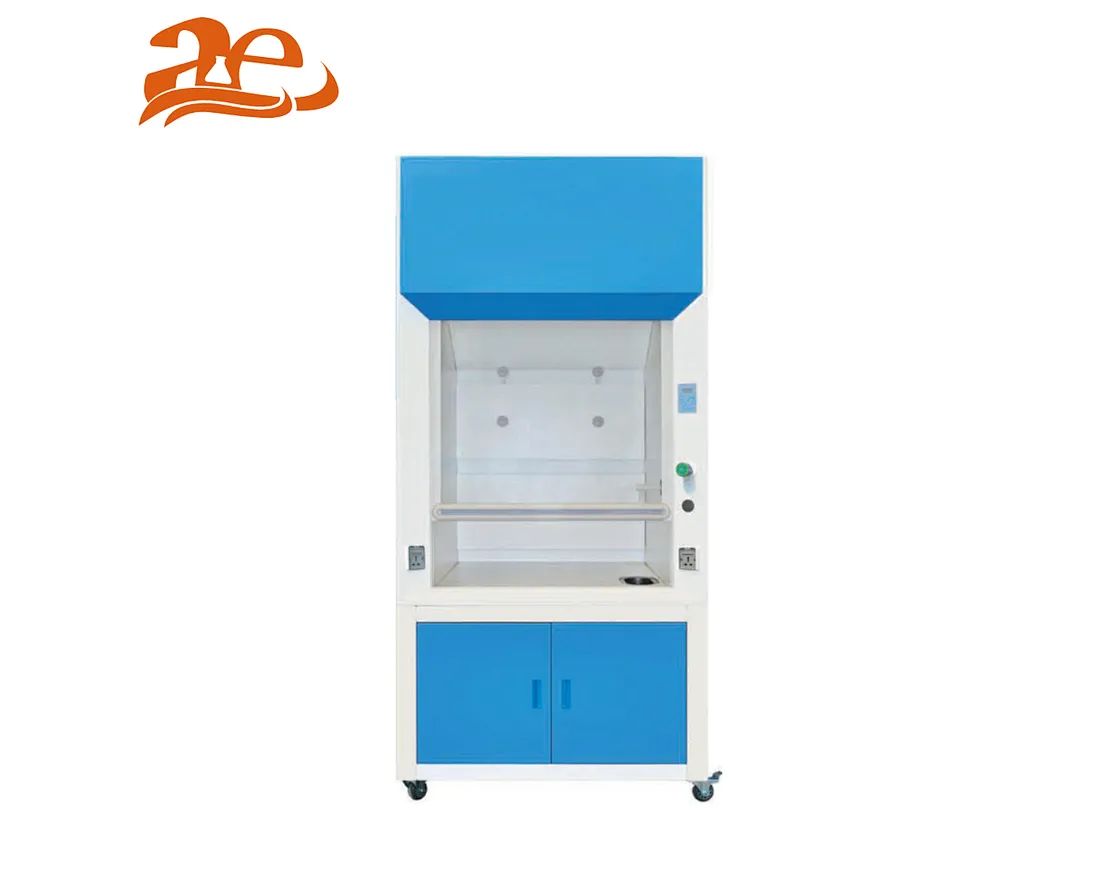

AELAB Fume Hood AE-FH Series
The laboratory chemical fume hood is the most common local exhaust ventilation system used in laboratories and is the primary method used to control inhalation exposures to hazardous substances.
AE-FH1000(E) AE-FH1200(E) AE-FH1500(E) AE-FH1800(E)
Quantity:
AE-FH Series Fume Hood
The laboratory chemical fume hood is the most common local exhaust ventilation system used in laboratories and is the primary method used to control inhalation exposures to hazardous substances.
The laboratory chemical fume hood is the most common local exhaust ventilation system used in laboratories and is the primary method used to control inhalation exposures to hazardous substances.

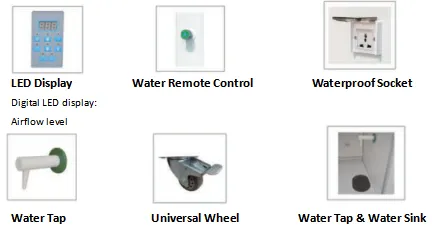

Features:
+Adjustable air speed: 9 level;
+Manual front glass window, height adjustable;
+With air velocity memory function in case of power failture;
+PP Built-in axial flow blower, melamine board inward, resistant to acid, alkali, and anti-corrosion.
Technical Specifications:
| Model | AE-FH1000(E) | AE-FH1200(E) | AE-FH1500(E) | AE-FH1800(E) | |||
| External size (WxDxH) | 1000x800x2365mm | 1200x800x2365mm | 1500x800x2465mm | 1800x800x2465mm | |||
| Internal size (WxDxH) | 790x635x820mm | 990x635x820mm | 1290x635x820mm | 1590x635x820mm | |||
| Work surface height | 900mm | ||||||
| Max. opening | 750mm | ||||||
| Air velocity | 0.3~0.8m/s | ||||||
| Noise | ≤60dB | ||||||
| Exhaust Duct | PVC, Standard length: 4 meters Φ300mm | ||||||
| Pipe strap | 2pcs | 2pcs | 2pcs | 4pcs | |||
| LED fluorescent lamp | 8Wx1 | 12Wx1 | 16Wx1 | 16Wx1 | |||
| Blower | BP Built-in axial flow blowers; Speed adjustable | PP Built-in centrifugal blower; Speed adjustable | |||||
| Front window | Manual, 5mm toughened glass, height adjustable | ||||||
| Power supply | AC 220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||||
| Consumption | 400W | 400W | 500W | 500W | |||
| Material | Exterior | 1.0mm cold-rolled steel with bacteria power coating. | |||||
| Interior | High grade melamine board with good acid and alkali resistance function. | ||||||
| Work table | Chemical resistant phenolic resin. | ||||||
| Standard accessory | Water tap, Water sink, waterproof socket *2; LED fluorescent lamp, PP built-in axial flow blower; Total load of 2 waterproof sockets: 500W, 4 meters PVC exhaust duct, pipe strap. | ||||||
| Operational accessory | Gas tap | ||||||
| Gross weight | 252kg | 282kg | 311kg | 346kg | |||
| Package | Main body | 1150x950x1750mm | 1350x950x1750mm | 1650x950x1850mm | 1950x950x1850mm | ||
| Base cabinet | 1150x950x1080mm | 1350x950x1080mm | 1650x950x1080mm | 1950x950x1080mm | |||
