Electrophoresis Tank
Features :

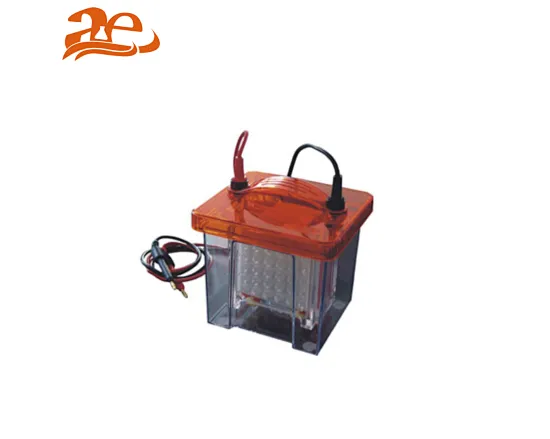

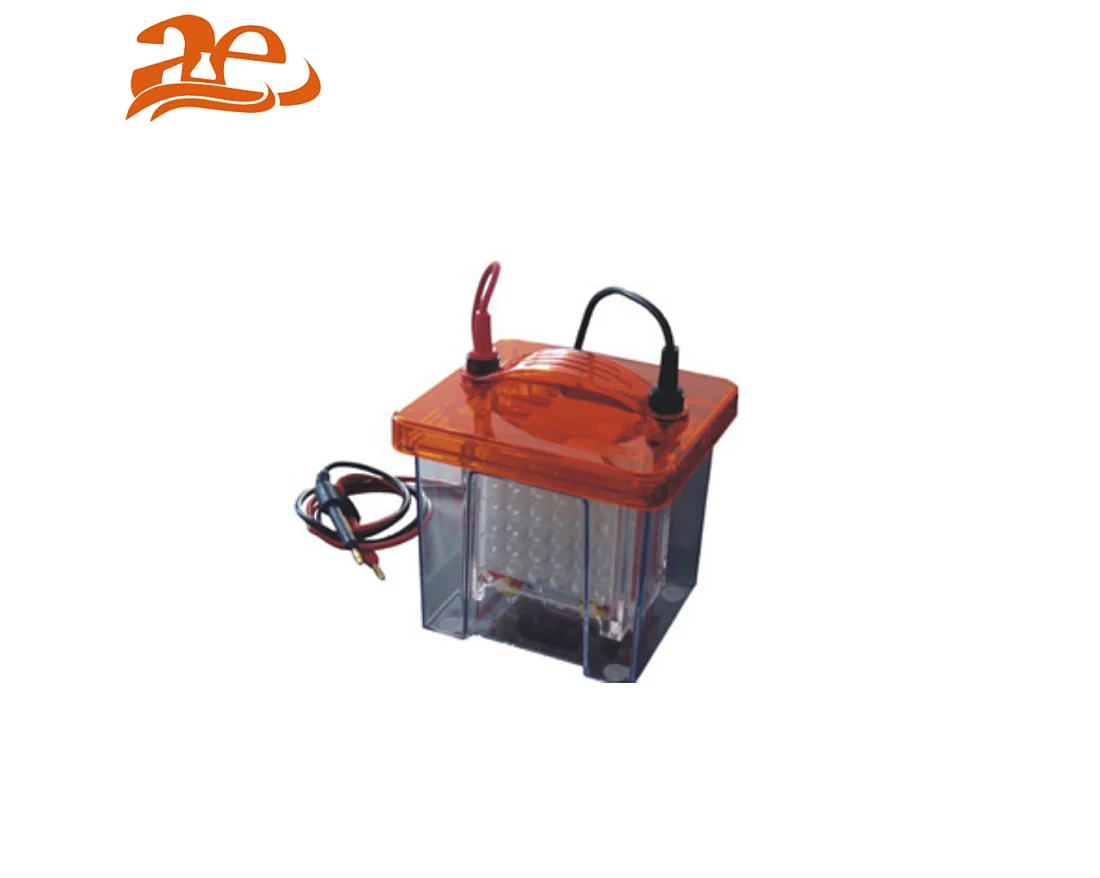

AE-verBLOT mini vertical transfer electrophoresis with the ice box can do small gel transfer experiments clipping and high quality which consists of thermal and elastic polycarbonate injection molding and can place two transfer folders.Using whith BG-verMINI can transfer of proteins to nitrocellulose filter membrane or polyvinylidene fluoride easilly.
Model | AE-verBLOT |
Dimensions ( L×W×H) | 160×150×200mm |
Transfer size（W×L） | 9.5×11cm |
Transfer tank | 1 |
Sponge gasket | 4 |
Transfer folder | 2 |
Buffer capacity | 800ml |
Recommended Power | AE-Power600k and AE-Power600 |
Net weight | 1.5kg |
AE-verSEQUENCING (W)
Features :

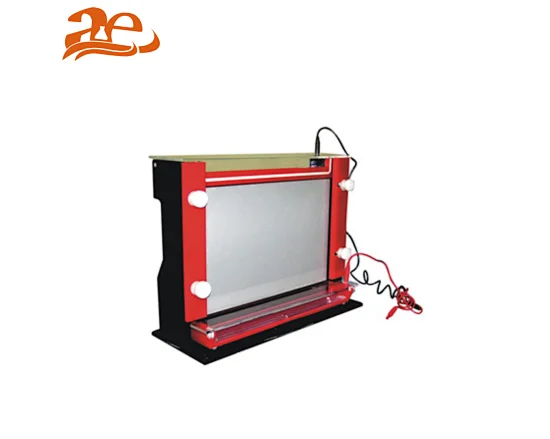

can separate DNA and RNA fragments with one nucleotide difference well. It is suitable for SSCP, microsatellite analysis, oligonucleotide separation and so on. Its unique thermal design can maintain a balanced temperature, and eliminate the phenomenon of"Smile"and the outfall located in the sealing of the upper buffer chamber can be easily discharged buffer.
Model | AE-verSEQUENCING(W) |
Gel area (W x L): | 345×300mm |
The shark-tooth comb | 0.4mm thick, 68 and 100 well (optional) |
Buffer capacity | up to 1000ml |
Recommended Power |
|
Dimensions (L×W×H) | 46×16×36cm |
AE-subMIDI(V)
Features :
• Real-time observation: Observation the nucleic acid while electrophoresis experiment
• Low heat long lift: Semiconductor light-emitting technology
• Multi-purpose device: Electrophoresis tank + visible light Transilluminator
• Multi-purpose slot: 60mm×60mm, 60mm×120mm, 120mm×60mm, 120mm×120mm
