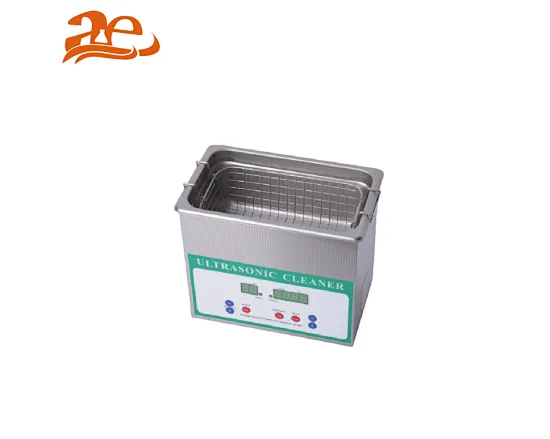

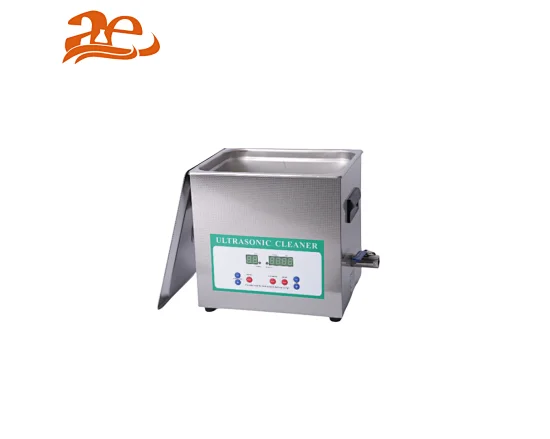

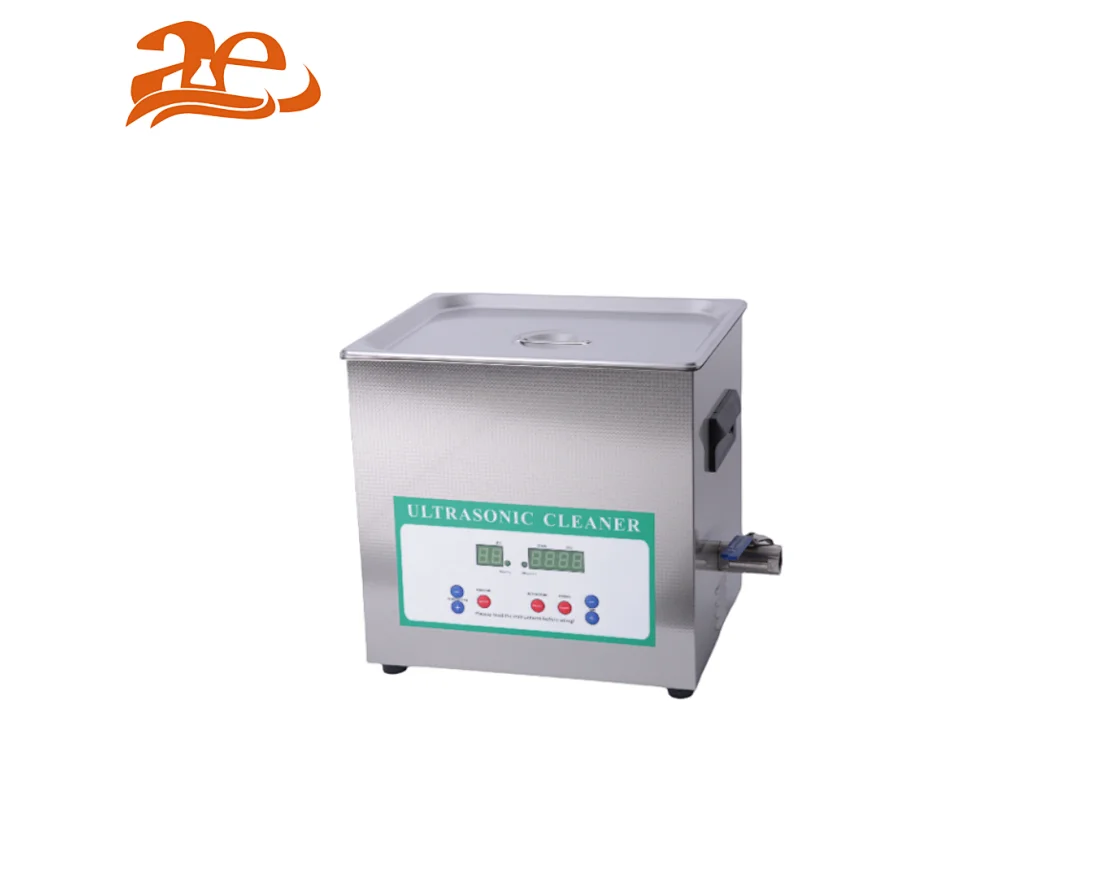

DigitalUltrasonicCleaner with 1 Frequency
AELABDigital ultrasonic cleaners are suitable to clean irregular and complex specialized instruments, components and PCBs of sundry shops, workshops, factories etc; smash, emulsify, scatter, hydrolyze, extract, degas certain analyzed stuffs in labs.
Features:
+Die casting stainless steel tank.
+1~99 minutes working time.
Technical Specifications:
Model No. | Tank Size (mm) | Overall Size (mm) | Capacity (L) | Frequency (KHz) | Ultrasonic Power (W) | Heating Power (W) | Timing (min) | Temp. (C) | Drainage |
AE-130D | 150*140*65 | 190*170*195 | 1.3 | 28 or40 | 60 | 100 | 1~99 | 0~80°C | None |
AE-200D | 150*140*100 | 190*170*230 | 2 | 28 or40 | 60 | 100 | 1~99 | 0~80°C | None |
AE-300D | 240*140*100 | 270*170*240 | 3.2 | 28 or40 | 120 | 100 | 1~99 | 0~80°C | None |
AE-400D | 300*155*100 | 312*162*240 | 4.5 | 28 or40 | 120 | 100 | 1~99 | 0~80°C | None |
AE-600D | 300*155*150 | 330*180*330 | 6.5 | 28 or40 | 180 | 300 | 1~99 | 0~80°C | Yes |
AE-1000D | 300*240*150 | 330*270*330 | 10 | 28 or40 | 240 | 300 | 1~99 | 0~80°C | Yes |
AE-1500D | 330*300*150 | 360*330*330 | 15 | 28 or40 | 360 | 400 | 1~99 | 0~80°C | Yes |
AE-2200D | 500*300*150 | 500*330*330 | 22 | 28 or40 | 480 | 500 | 1~99 | 0~80°C | Yes |
AE-3000D | 500*300*200 | 550*330*380 | 30 | 28 or40 | 600 | 500 | 1~99 | 0~80°C | Yes |
