Gel documentation systems are used in genetic engineering laboratories in colleges, genetic engineering research institutes and protein-producing pharmaceutical industries. It is also used in forensic laboratories and clinical research labs.

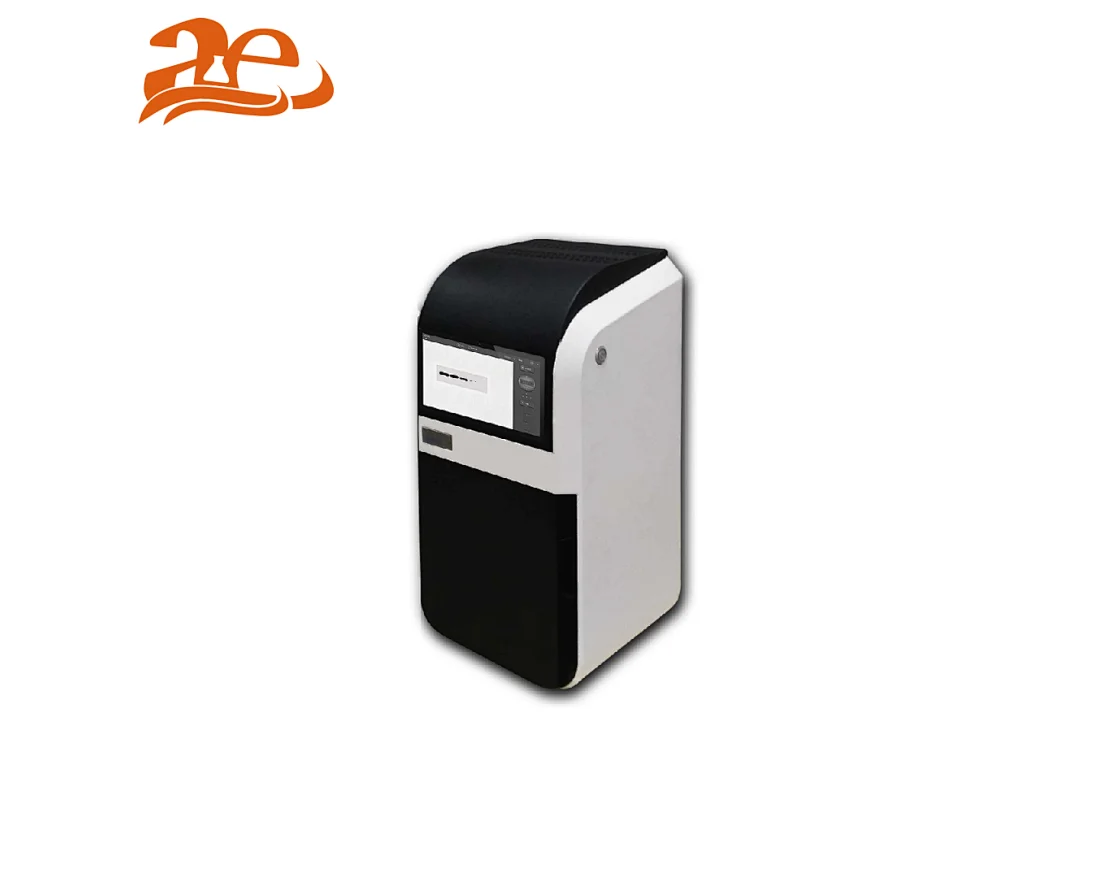

The full dynamic chemiluminescence / fluorescence imaging system is a multi-functional imaging analysis system with super sensitive scientific research grade cryogenic CCD camera and aperture lens. It is equipped with R GB fluorescent light source, IR infrared light source and UV light source. The light source can detect the imaging of chemiluminescence, fluorescence, light and other samples, meeting the experimental needs of customers.

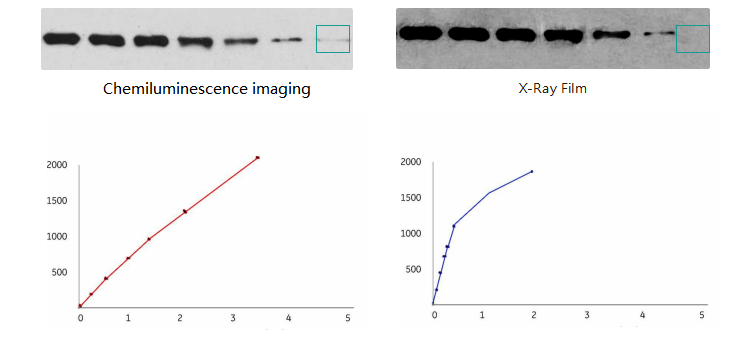

For X-ray film, the exposure time is 30 s, the linear range of o I chemiluminescence imaging is better than that of X-ray film, and has super high sensitivity, which can capture weak signals.

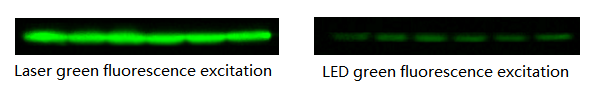

CY 3 fluorescent antibody labeling, exposure time 100 ms, it can be seen from the pair that the excitation efficiency of laser LD e is many times stronger, and the coherence of the whole band is stronger than that of LED. It mainly depends on the strong penetration and linearity of the laser. The LED light source is dispersive and medium strong. It will weaken with the distance in a short distance, and the laser stray light is less.

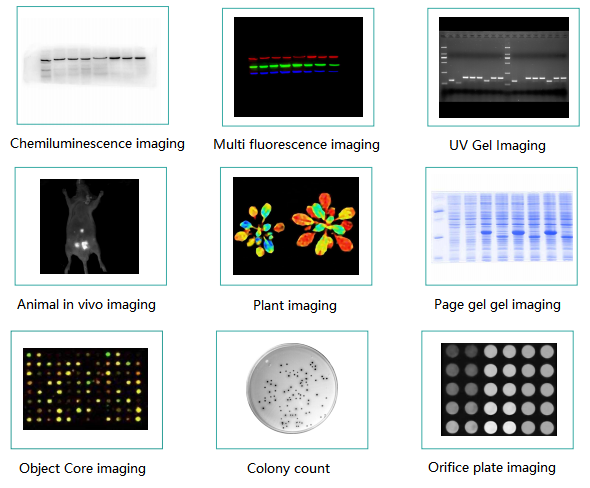

Imprinted films: C biomedicine, EC L, EC l plus, C DP star, Su per signal, CSPD, Lu miglo, cy 2, cy 3, CY 5, cy 5.5, cy 7, FITC, a LexA dyes, d y light dyes, pro Q diamond, pro Q emerald 300, pro Q Emerald 488, IR dye 680, IR dye 780, etc.
Nucleic acid detection: EB, sy brgold, SYBRGREEN, sybrsafe, GelRed, GelGreen, flu orescein, etc
DNA / RNA detection of various dyes.
Egg testing: Coomassie brilliant blue glue, silver staining glue, and various dyeable marking glue / film, etc;
Others: various hybrid membranes, egg transfer membrane, culture colony count, enzyme label plate, dot hybridization, egg core, TLC plate
High QE: >75%
1×1 2x2 4x4 ·· 8x8
16 bit（0 - 65535 color）
F = 0.95f 25mm, optionaF = 0.8,25mm
RGB light source
Optional laser 470nm (blue light) 520nm (green light) 650nm (red light)
LR light source
Optional infrared laser 680nm, 780nm (optional IR, RGB not optional)
Led 312nm, optional transmission blue light
White light reflection
LED light (cold light)
Led UV 312nm
Optional 5-7-bit filter wheel
590nm standard configuration, 520nm, 570nm, 670nm, 720nm and 820nm optional
Shooting volume: 25 × 26cm
1 ~ 60 minutes
Optional 13 inch touch built-in system
