Automatic Chemiluminescence Gel Imaging System-AELAB

Automatic Chemiluminescence Gel Imaging System

Gel documentation systems are used in genetic engineering laboratories in colleges, genetic engineering research institutes and protein-producing pharmaceutical industries. It is also used in forensic laboratories and clinical research labs.

AE-GEL600,AE-GEL900

Minimum order quantity: 1

Quantity:

AutomaticChemiluminescenceGelImagingSystem

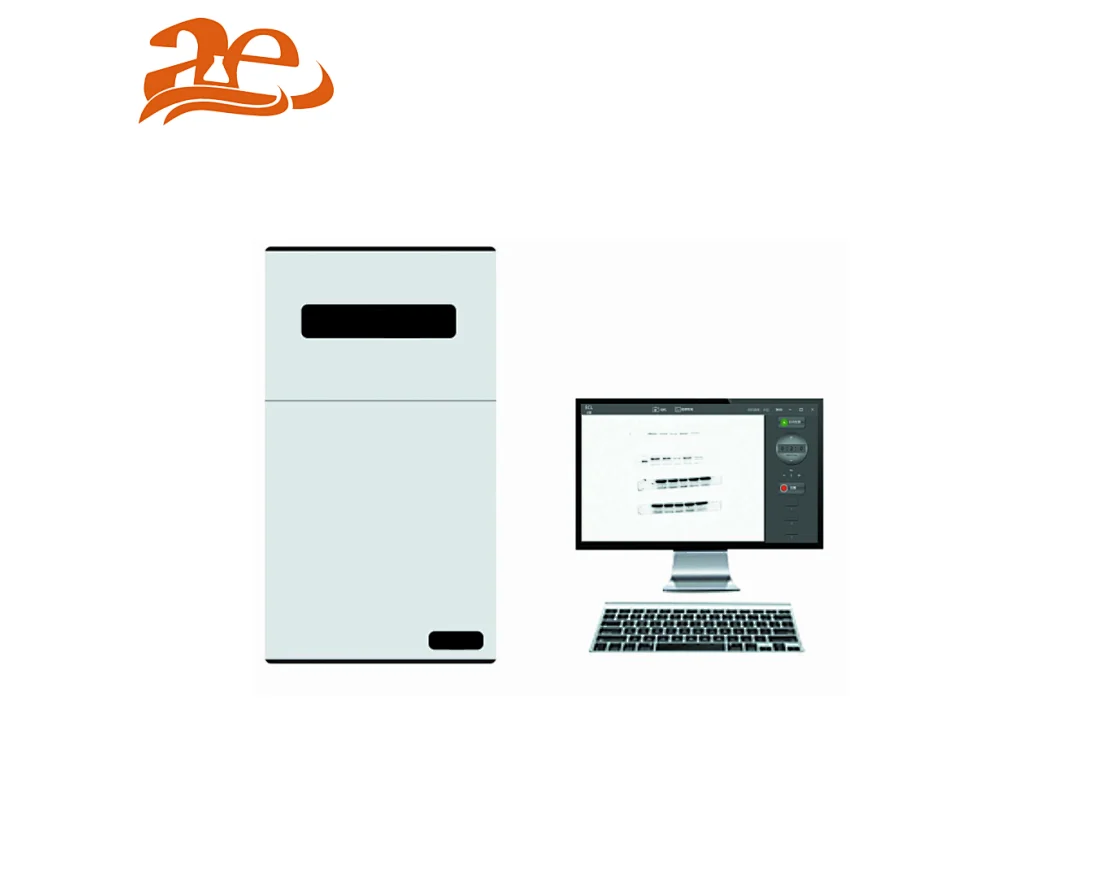

Is fully automatic Chemiluminescence geI imaging system is highly integrated Cryogenic scientific research ultrasensitive CCD camera and wide aperture lens, it is with high sensitivity and very easy to operate.

Technical Specifications:

Model	AE-GEL600	AE-GEL900
Pixel	6.0MP	9.0MP
Cool	-65°C
QE	High QE: >75%	High QE: >79%
Pixel size	4.54umX4.54um
Binning	1X12x2 4x4 ・・8x8
Exposure	lms-120min
Bit	16 bit (0-65535)
OD	N4.8OD
Lens	F = 0.95f 25mm, optionaF = 0.8,25mm
Uv transmission	302nm, Area21x21cm
Lighting	LED
Uv reBection	NO
Filter whee	Optional!,5 position filterwheel
Filter	Opt i ona1 590nm, Other opt i ona1
Imaging area	20X20cm
APP Timer shut down	1 ~ 60min

Features:

+Fully automatic control ofthe lens and light source

+Precise automatic exposure in calculate, no need to repeat calculation the exposure time

+One button shooting, marker and Chemiluminescence image automatic stacking

+Cryogenic scientific research ultrasensitive

+CCD camera , wide aperture Lens

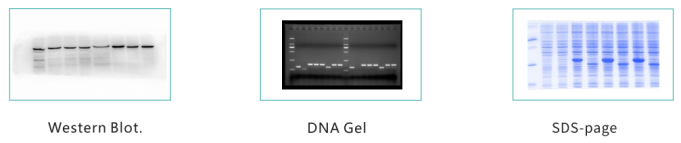

NucleicAcidDetection: EB,SYBRGold, SYBRGreen, SYBRSafe, GelRed, GelGreen, Fluorescein.

ProteinTest: Silver dyeing, SDS-page.Visible light imaging ...

luminescenceDetection: Western Blot.Western Lightning^ ECL、ECLplus ...

Performance :

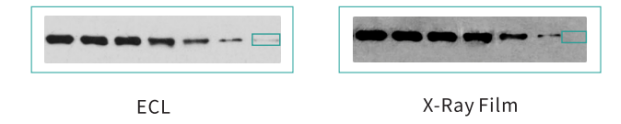

Chemiluminescence imaging compared with X-Ray Film, exposure time 30s, 01 Chemiluminescence imaging1 s linear range is better then X-Ray Film, and it has ultra- high sensitivity, you can capture the weak signal.
