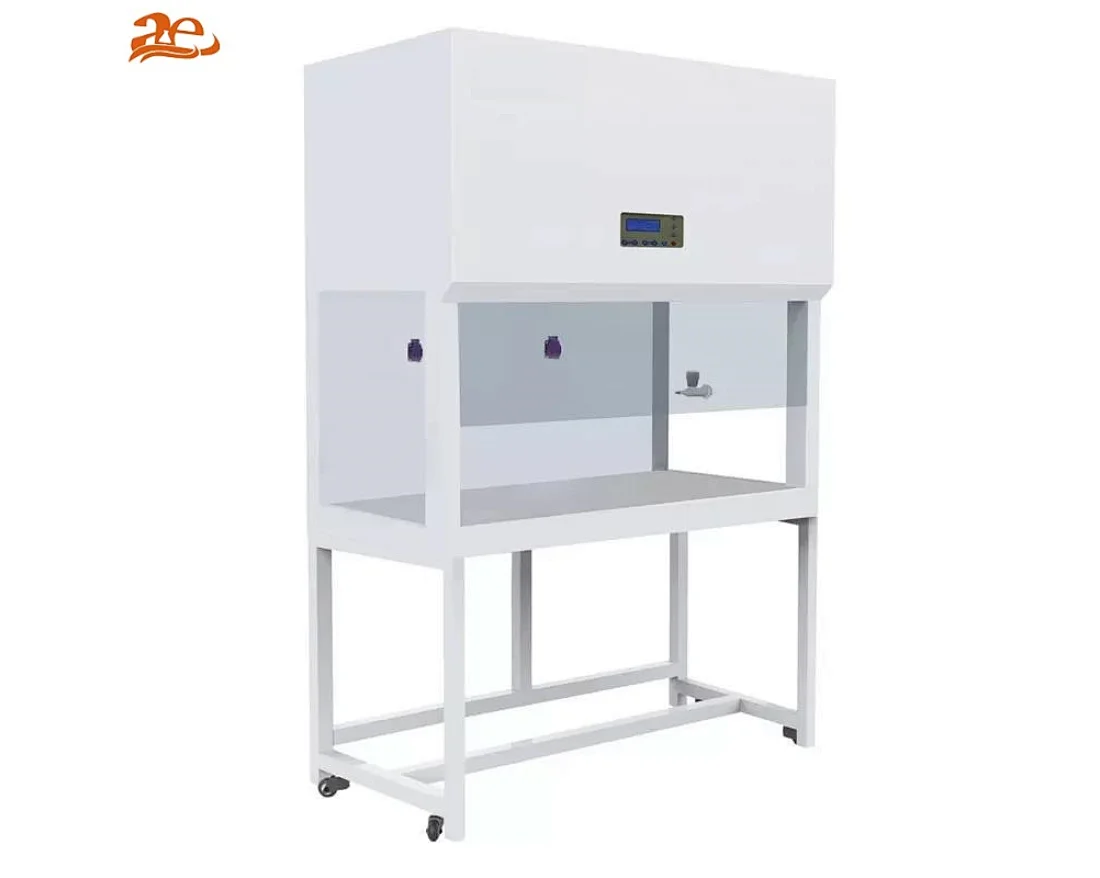

AELAB Vertical Laminar Flow Cabinet AE-V1300 AE-V1800
They are used in the pharmaceutical, medical, electronic, and industrial sectors and vary in size to suit the application. These cabinets generally comprise a structure housing a fan unit, high efficiency particulate air (HEPA) filter and a work surface.
AE-V1300 AE-V1800
Quantity:
AELAB Vertical Laminar Flow Cabinet AE-V1300 AE-V1800
They are used in the pharmaceutical, medical, electronic, and industrial sectors and vary in size to suit the application. These cabinets generally comprise a structure housing a fan unit, high efficiency particulate air (HEPA) filter and a work surface.
+ Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particles-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
+ The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
+ Laminar flow cabinet is widely used in medical research laboratories, hospital, manufacturing facilities and other research and production environments.
Technical Parameter
| Model | AE-V1300 | AE-V1800 |
| External Size (WxDxH) | 1310x750x2040mm | 1800x750x2040mm |
| Internal Size (WxDxH) | 1200x645x610mm | 1700x645x610mm |
| Work surface height | 750mm | |
| Display | LCDdisplay | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main body: cold-rolled steel with anti-bacteris powder coating Work table: 304 stainless steel Side and front windows: 5mm toughened glass anti-UV | |
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3um | |
| Noise | <60dB | |
| Front window | motorized | |
| Max opening | 430mm | |
| Fluorescent lamp | 28Wx1 | 36Wx1 |
| UV Lamp | 30Wx1 | 40Wx1 |
| Emission of 253.7 nanometers | ||
| Consumption | 400W | 450W |
| Waterproof socket | Two, total load≤500W | |
| Cater | Universal caster with leveling feet | |
| Power supply | AC220V±10%, 50/60Hz, 110V±10%, 60Hz | |
| Standard accessory | Fluorescent lamp, UV lamp x2, base stand, Gas Tap, Waterprrof socketx2 | |
| Gross weight | 228kg | 306kg |
| Packing size (WxDxH) | 1460x1070x1650mm | 1960x970x1600mm |
