AELAB Vortex Mixers AVT-502
+ Speed adjustable from 0-2500rpm (AVT-501).
+ Fixed speed of 2500rpm (AVT-502).
+ Standard configuration with an adapter for Ø30mm tube or smaller.
+ 3 position power switch with touch/continuous modes of operation.
+ Wide range of accessories available.
+ Shaded pole motor for less maintenance.
+ Good corrosion resistant aluminum alloy casing exterior.
+ Small rubber vacuum grippers hold the unit during operation.
+ LED indicator of power.
+ Fixed speed of 2500rpm (AVT-502).
+ Standard configuration with an adapter for Ø30mm tube or smaller.
+ 3 position power switch with touch/continuous modes of operation.
+ Wide range of accessories available.
+ Shaded pole motor for less maintenance.
+ Good corrosion resistant aluminum alloy casing exterior.
+ Small rubber vacuum grippers hold the unit during operation.
+ LED indicator of power.
AVT-502
1
Quantity:

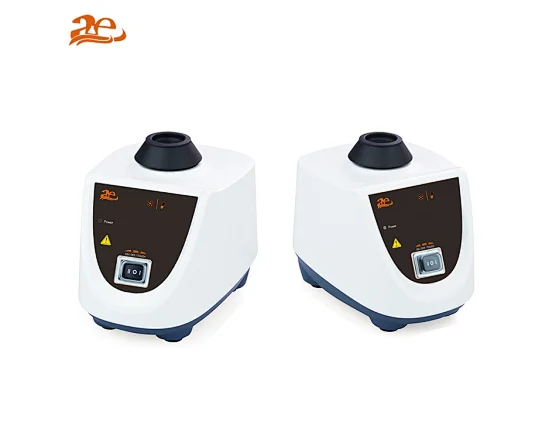

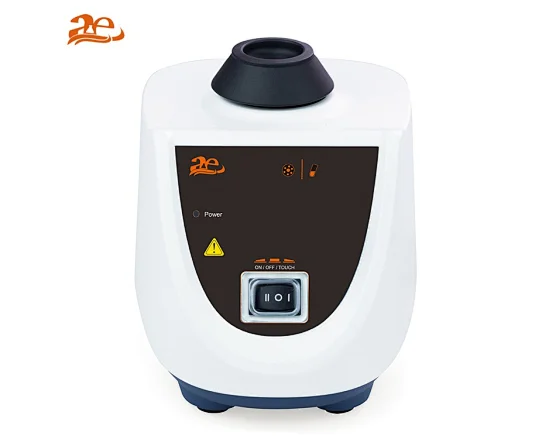

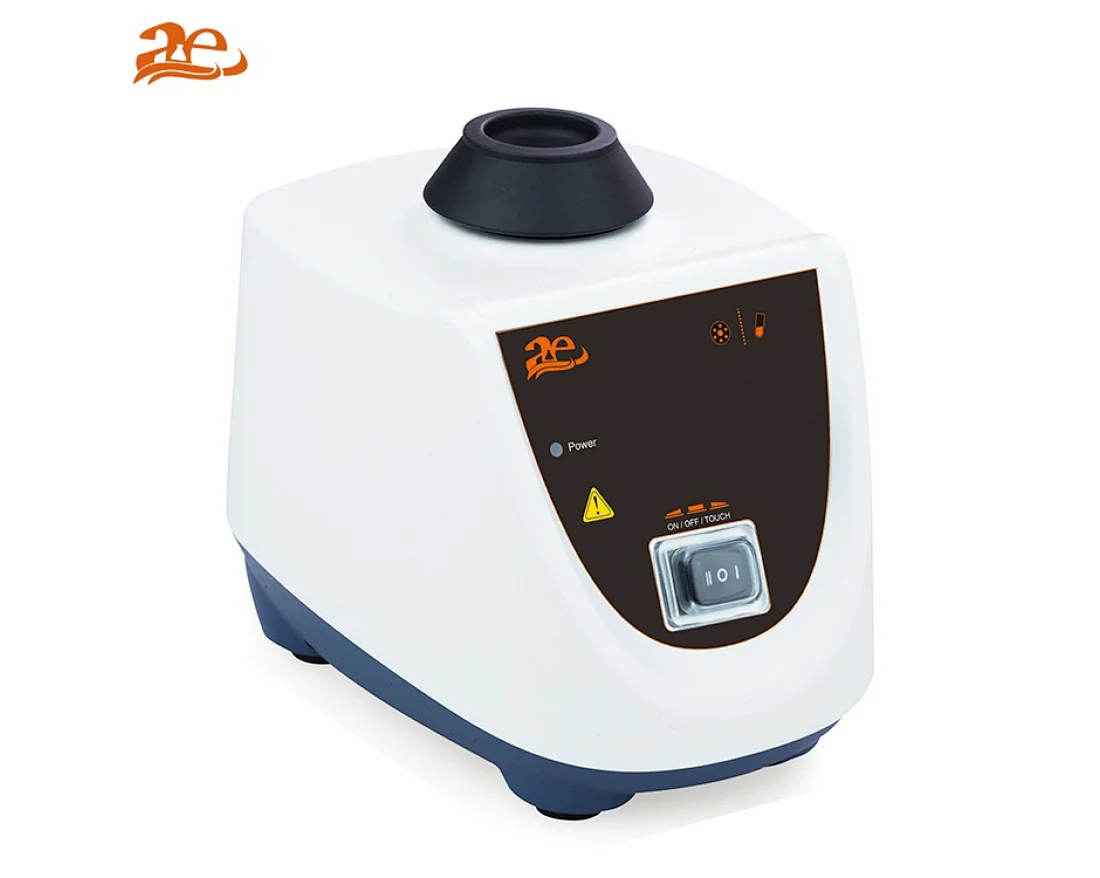

AELAB Vortex Mixers
Vortex mixer is used in most bioscience laboratories for mixing liquids in tubes. In a biochemical or analytical laboratory they may be used to mix the reagents of an assay or to mix the experimental samples.
Features:
+ Speed adjustable from 0-2500rpm (AVT-501).
+ Fixed speed of 2500rpm (AVT-502).
+ Standard configuration with an adapter for Ø30mm tube or smaller.
+ 3 position power switch with touch/continuous modes of operation.
+ Wide range of accessories available.
+ Shaded pole motor for less maintenance.
+ Good corrosion resistant aluminum alloy casing exterior.
+ Small rubber vacuum grippers hold the unit during operation.
+ LED indicator of power.
Technical Specifications:
Vortex mixer is used in most bioscience laboratories for mixing liquids in tubes. In a biochemical or analytical laboratory they may be used to mix the reagents of an assay or to mix the experimental samples.
Features:
+ Speed adjustable from 0-2500rpm (AVT-501).
+ Fixed speed of 2500rpm (AVT-502).
+ Standard configuration with an adapter for Ø30mm tube or smaller.
+ 3 position power switch with touch/continuous modes of operation.
+ Wide range of accessories available.
+ Shaded pole motor for less maintenance.
+ Good corrosion resistant aluminum alloy casing exterior.
+ Small rubber vacuum grippers hold the unit during operation.
+ LED indicator of power.
Technical Specifications:
| Specifications | AVT-501 (Adjustable speed 0-2500rpm ) | AVT-502 (Fixed speed 2500rpm) |
| Voltage | 110-120V/220-230V,50/60Hz | 110-120V/220-230V,50/60Hz |
| Power | 60W | 60W |
| Mixing motion | Orbital | Orbital |
| Orbital diameter | 4mm | 4mm |
| Motor type | Shaded pole motor | Shaded pole motor |
| Motor rating input | 58W | 58W |
| Motor rating output | 10W | 10W |
| Speed range | 0-3200rpm | 3200rpm |
| Speed display | Scale | --- |
| Run type | Touch operation/Continuous | Touch operation/Continuous |
| Dimension[W×H×D] | 127×130×160mm | 127×130×160mm |
| Weight | 3.5kg | 3.5kg |
| Permissible ambient temperature | 5-40 °C | 5-40℃ |
| Permissible relative humidity | 80%RH | 80%RH |
| Protection class | IP21 | IP21 |
