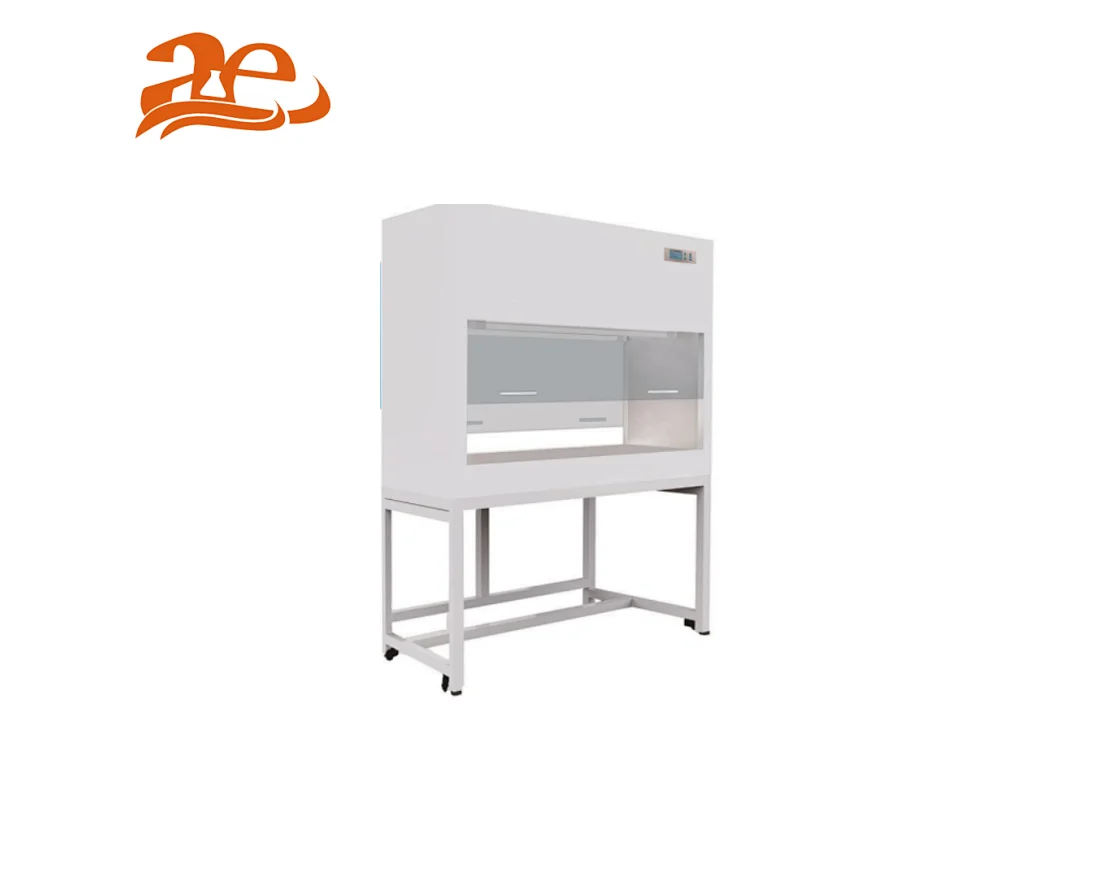

AELAB Vertical Laminar Flow Cabinet-Double Sides Type
Double sides work bench, 2-4 operators can work together.
Technical Parameters
BBS-DSC BBS-SSC
Quantity:
Vertical Laminar Flow Cabinet-Double Sides Type
Advantage
Double sides work bench, 2-4 operators can work together.
Technical Parameters

Technical parameter
ModelBBS-DSCBBS-SSC
External Size (WxDxH)1040x660x1770mm1440x660x1770mm
Internal Size (WxDxH)940x560x545mm1340x560x545mm
Work Surface Height750mm
DisplayLED display
Airflow VelocityAverage of 0.3-0.5m/s
MaterialMain body: cold-rolled steel with anti-bacteria powder coating
Work table: 304 stainless steel
Pre-filterPolyester fiber, washable
HEPA Filter99.999% efficiency at 0.3um
Noise<60dB
Front windowManual, 5mm toughened glass, anti-UB
Max opening350mm
UV lamp18Wx130Wx1
Emission of 253.7 nanometers
Fluorescent lamp21Wx128Wx1
Consumption350W600W
CasterUniversal caster with leveling feet
Power supplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard accessoryFluorescent lamp, UV lamp*2, Base stand
Gross weight150kg174kg
Package size (WxDxH)1190x890x1340mm1590x890x1340mm
