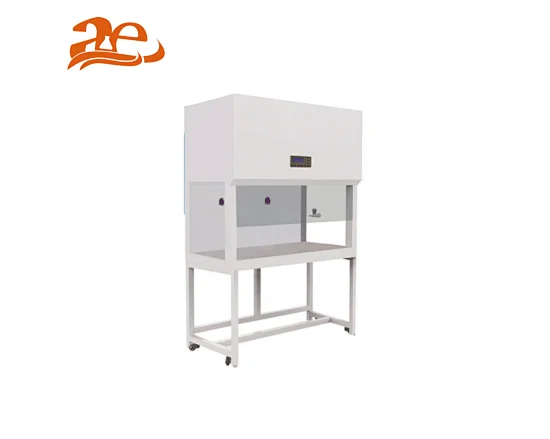

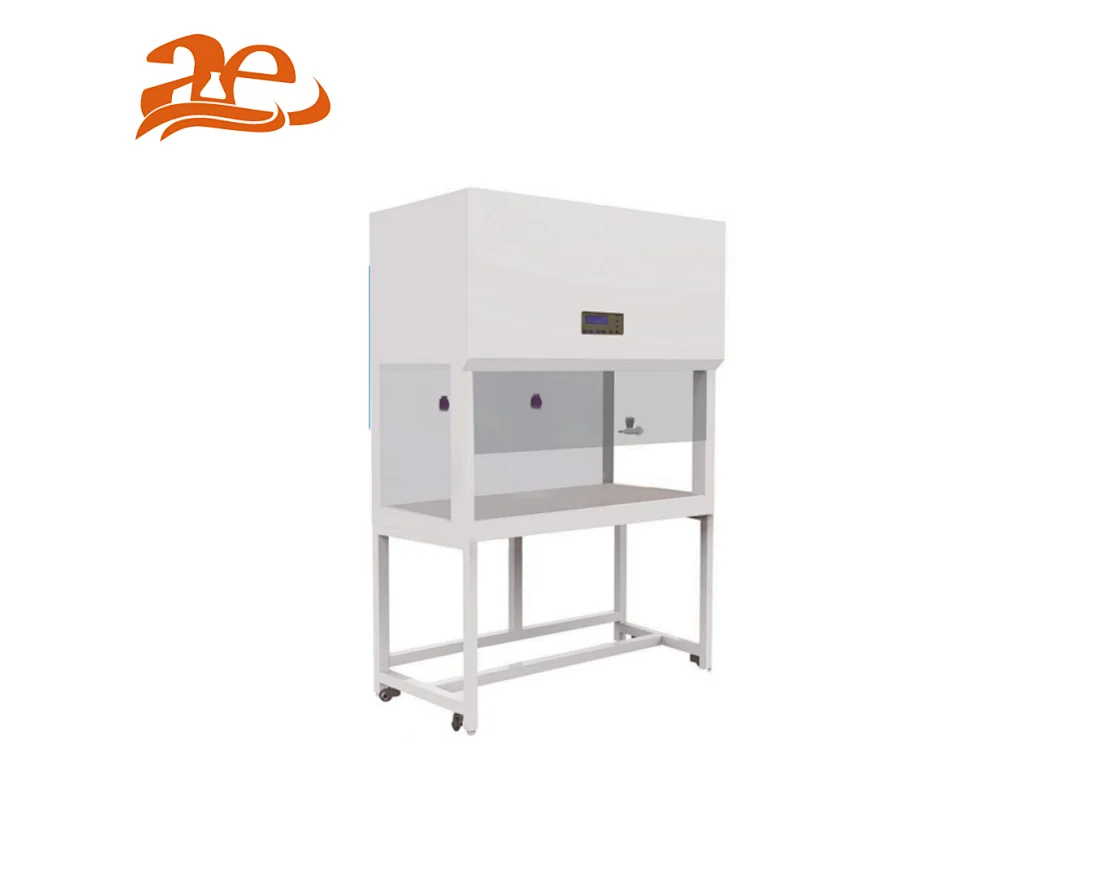

AELAB Vertical Laminar Flow Cabinet
Laminar flow cabinet is a work bench or similar enclosure, which creates a particles-free working environment by taking air though a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated roon air.
BBS-V1300 BBS-V1800
1
Quantity:
Vertical Laminar Flow Cabinet
Technical Parameter
#vertical laminar flow cabinet
Technical Parameter
| Model | BBS-V1300 | BBS-V1800 |
| External Size (WxDxH) | 1310x750x2040mm | 1800x750x2040mm |
| Internal Size (WxDxH) | 1200x645x610mm | 1700x645x610mm |
| Work surface height | 750mm | |

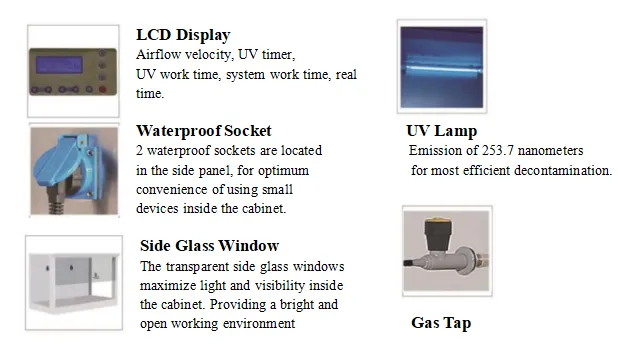

| Display | LCDdisplay | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main body: cold-rolled steel with anti-bacteris powder coating Work table: 304 stainless steel Side and front windows: 5mm toughened glass anti-UV | |
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3um | |
| Noise | <60dB | |
| Front window | motorized | |
| Max opening | 430mm | |
| Fluorescent lamp | 28Wx1 | 36Wx1 |
| UV Lamp | 30Wx1 | 40Wx1 |
| Emission of 253.7 nanometers | ||
| Consumption | 400W | 450W |
| Waterproof socket | Two, total load≤500W | |
| Cater | Universal caster with leveling feet | |
| Power supply | AC220V±10%, 50/60Hz, 110V±10%, 60Hz | |
| Standard accessory | Fluorescent lamp, UV lamp x2, base stand, Gas Tap, Waterprrof socketx2 | |
| Gross weight | 228kg | 306kg |
| Packing size (WxDxH) | 1460x1070x1650mm | 1960x970x1600mm |
