AELAB Vertical Laminar Flow Cabinet
Laminar flow cabinet is a work bench or similar enclosure, which creates a particles-free working environment by taking air though a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated roon air.
BBS-V680 BBS-V800 BBS-DDC BBS-SDC
Quantity:
Laminar Flow Cabinet/Clean Bench
Laminar Flow Cabinet-sample protection only

Laminar flow cabinet is a work bench or similar enclosure, which creates a particles-free working environment by taking air though a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated roon air.

Laminar flow cabinet is widely used in medical research laboratories, hospital, manufacturing facilties and other research and production enviroments.

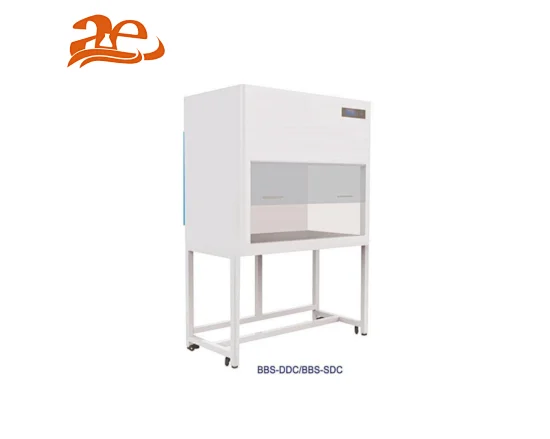

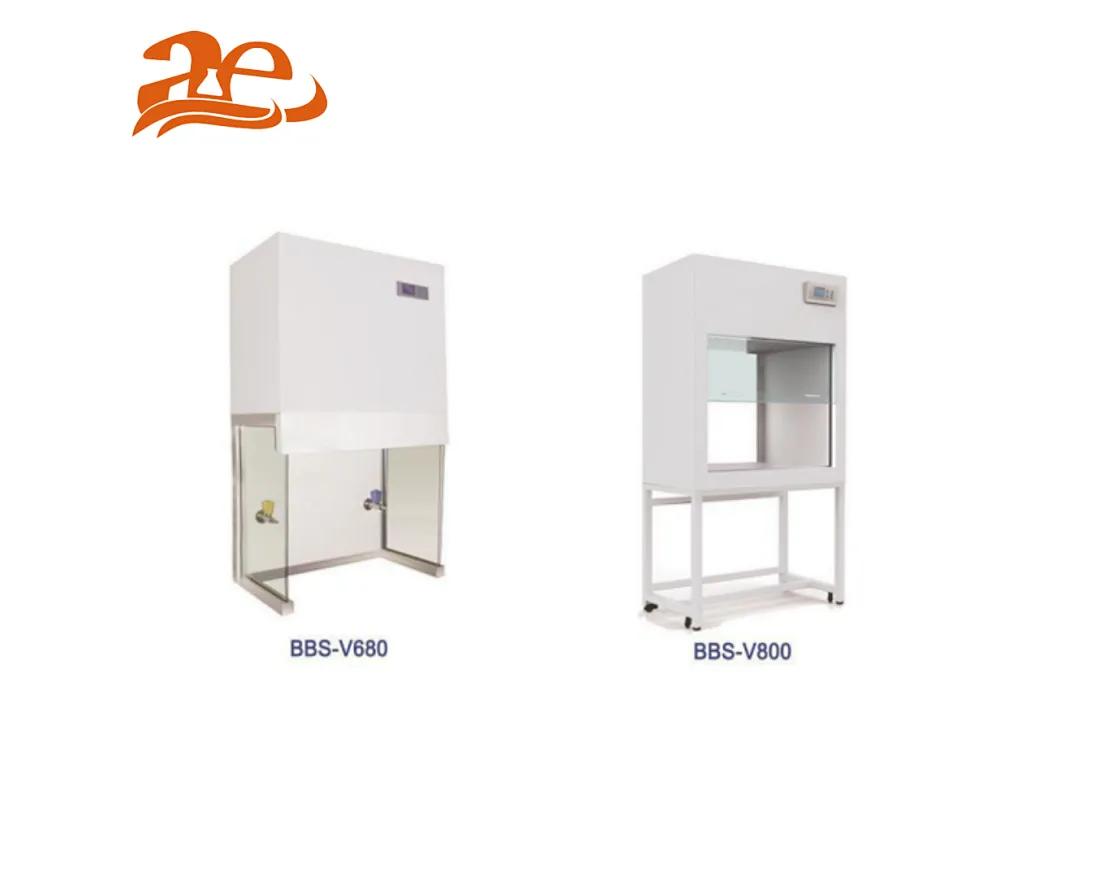

Vertical Laminar Flow Cabinet
Technical Parameter
ModelBBS-V680BBS-V800BBS-DDCBBS-SDC
External size (WxDxH)680x410x1160mm802x650x1550mm1040x615x1770mm1440x615x1770mm
Internal Size (WxDxH)630x374x615mm800x600x540mm940x540x545mm1340x540x545mm
Work Surface Height/660mm750mm750mm
DisplayLED display
Airflow velocityAverage of 0.3-0.5m/s, air speed adjustable.
MaterialMain body: cold-rolled steel with anti-bacteria powder coating
Work table: 304 stainless steel
Pre-filterPolyester fiber, washable
HEPA filter99.999% efficiency at 0.3um
Noise<60dB
Front window/Manual, 5mm toughened glass, anti-UV
Max opeing/490mm350mm350mm
Fluorescent lamp14Wx114Wx121Wx128Wx1
UV Lamp15Wx120Wx118Wx130Wx1
Emission of 253.7 nanometers
Consumption160W350W350W600W
Caster/Universal wheel with leveling feet
Power supplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard accessoryFluorescent lamp, UV lamp x2 (for all models)
Water & gas tap (for model BBS-V680)
Base stand (Except model BBS-V680)
Gross weight50kg116kg150kg174kg
Package size (WxDxH)840x560x1380mm860x800x1800mm1190x890x1340mm1590x890x1330mm
