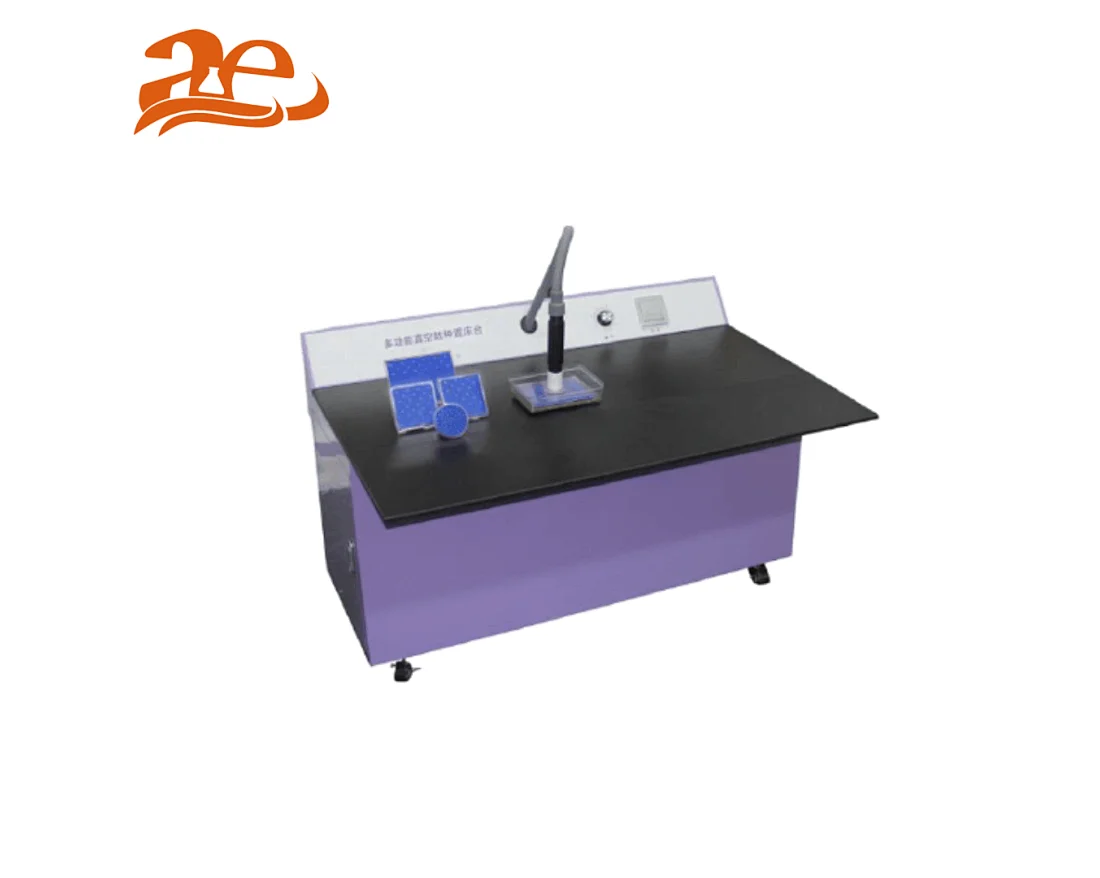

AELAB Vacuum Seed Counter & Placing apparatus SZC-50
Vacuum seed Counter is specially used for seed germination test in the process of several species, seed suction, seed placement. It mainly consists of three parts: workbench, extension pipette and suction head.
SZC-50
1
Quantity:
Vacuum Seed Counter & Placing apparatus SZC-50
Introduction
Vacuum seed Counter is specially used for seed germination test in the process of several species, seed suction, seed placement. It mainly consists of three parts: workbench, extension pipette and suction head.
Characteristics
+Adopt High-speed vacuum axial flow fan, with strong suction, and low noise.
+Built-in dirt isolation bag of the fuselage can easily remove the debris and moisture sucked into the fuselage.
+Extension pipette is connected to the plug-in handle at one end and has a vent through hole, which causes the seeds to fall down quickly and smoothly.
+Set the bottom of the bed table with pulleys and move flexibly.
+Equipped with a key control switch and 5 suction heads, which are of the same size and specification as the domestic common germination box.To meet the needs of different seed germination tests.
Technical parameter
Sucker configuration: 5 pieces (1 large, 3 small, 1 round)
Motor power: 1440W
Working power supply: 220V 50Hz
Power regulation range: 300W-1400W
The aperture of 100 holes: 6mm/3mm/1.5mm/0.7mm
#placing
#seed counter
#vacuum counter
#boom placing
Introduction
Vacuum seed Counter is specially used for seed germination test in the process of several species, seed suction, seed placement. It mainly consists of three parts: workbench, extension pipette and suction head.
Characteristics
+Adopt High-speed vacuum axial flow fan, with strong suction, and low noise.
+Built-in dirt isolation bag of the fuselage can easily remove the debris and moisture sucked into the fuselage.
+Extension pipette is connected to the plug-in handle at one end and has a vent through hole, which causes the seeds to fall down quickly and smoothly.
+Set the bottom of the bed table with pulleys and move flexibly.
+Equipped with a key control switch and 5 suction heads, which are of the same size and specification as the domestic common germination box.To meet the needs of different seed germination tests.
Technical parameter
Sucker configuration: 5 pieces (1 large, 3 small, 1 round)
Motor power: 1440W
Working power supply: 220V 50Hz
Power regulation range: 300W-1400W
The aperture of 100 holes: 6mm/3mm/1.5mm/0.7mm
| Sort | Sucked Seed | Sucked amount | Figure | Incubation | utensil |
| A | Corn/bean/Cotton seed/big | 25 | Rectangle | PL18 | PH18 |
| B | rice/wheat/barley/sorghum | 100 | Rectangle | PL18 | PH18 |
| C | rice/wheat/barley/sorghum | 100 | Square | PL12 | PH12 |
| D | Rape seed and middle or small | 100 | Square | PL12 | PH12 |
| E | small granule vegetable seed | 100 | roundness | φ9mm glass utensil | |
