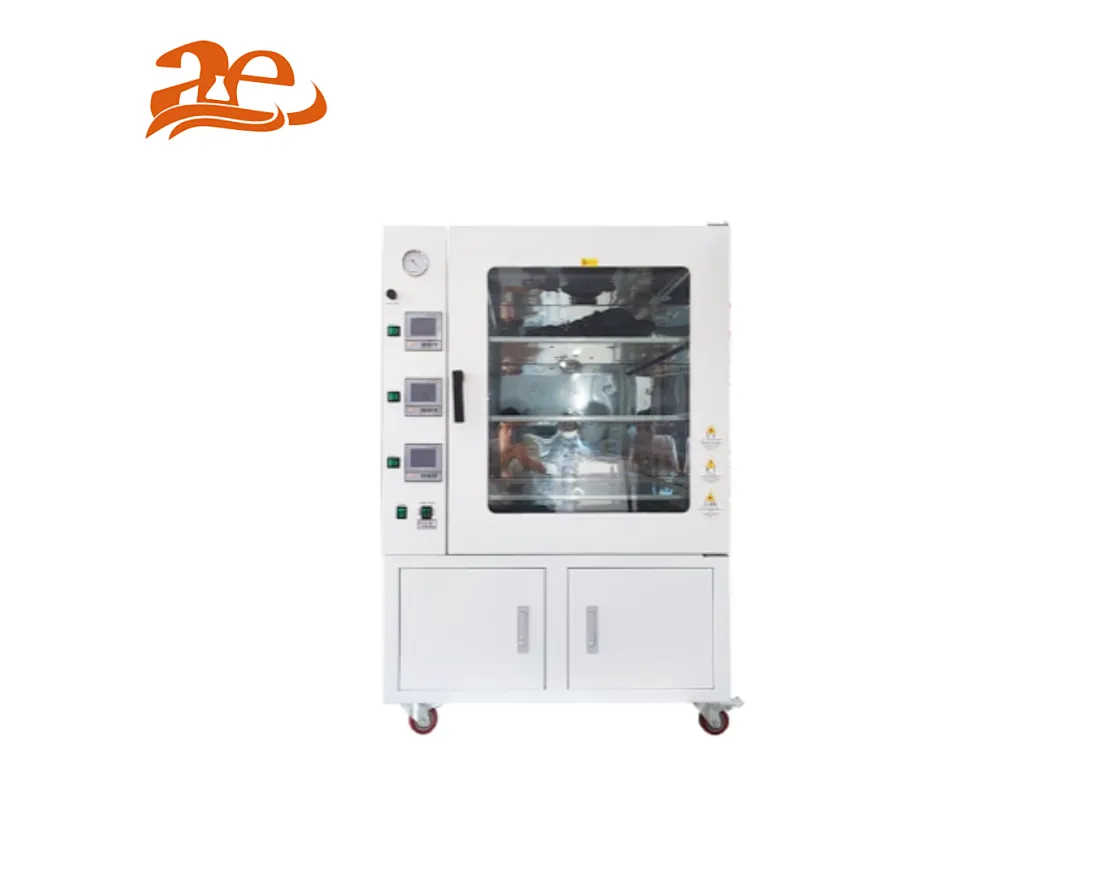

AELAB Vacuum Oven AE-DF Series
The vacuum drying oven is designed especially for drying material which is thermo-sensitive, easy-decomposable and easy-oxidative.
AE-DF6020 AE-DF6050 AE-DF6090 AE-DF6210 AE-DF6500
1
Quantity:

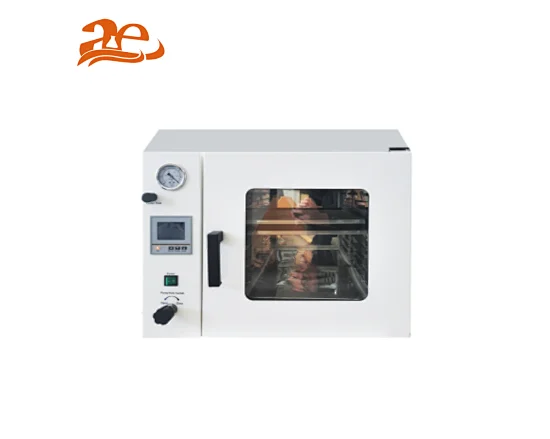

Vacuum Oven (Analogue Display Vacuum)
The vacuum drying oven is designed especially for drying material which is thermo-sensitive, easy-decomposable and easy-oxidative.
Features:
Options:
Specifications:
#oven series
#dzf series vacuum oven
#oven series oven series
#oven vacuum
The vacuum drying oven is designed especially for drying material which is thermo-sensitive, easy-decomposable and easy-oxidative.
Features:
+Fahrenheit/Celsius free conversion, to meet different customer needs.(DF-6050 has this function).
+Hyperbolic temperature calibration system, more accurate temperature measurement.
+Standard with large LCD color screen, multiple groups of data a screen display, menu type operation interface, easy to understand, easy to operate.
+Adopt overtemperature deviation protection, microprocessor PID fuzzy processing controller, quickly reach the preset temperature stable operation.
+304 mirror stainless steel inner tank, four corners semi-arc design, easy to clean.
+The sealing design of the new synthetic silicon sealing strip effectively prevents heat loss, and can prolong the energy saving of each component on the basis of 30% Service life.
+Aluminum separator made of special stamping process, with high temperature, no oxidation, fast thermal conductivity.Minimize heat loss.
+Double bulletproof glass observation window, observe objects in the working room, at a glance.
+The tightness of the door closure is completely adjusted by the user. The silicone rubber door sealing ring formed as a whole ensures the high vacuum degree in the box.
+Imported vacuum valve, avoid the traditional vacuum valve long time use caused by the drop problem.
Options:
+Independent temperature limit alarm system -- when the temperature exceeds the limit, the heating source will be forcibly stopped to ensure the safety of your laboratory.
+RS485 interface and special software - connect computer, export experimental data.
+Intelligent program controller -- can set up 30 steps of programming procedures to meet all kinds of complex experiments.
Specifications:
| Model | AE-DF6020 | AE-DF6050 | AE-DF6090 | AE-DF6210 | AE-DF6500 |
| Power Requirement | AC220V 50HZ | ||||
| Temperature Range | RT+10～250℃ | ||||
| Temperature Stability | ±1℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Vacuum Degree | 133Pa | ||||
| Timing Range | 1～9999min | ||||
| Standard Shelves | 3pcs (Adjustable) | 3pcs (Adjustable) | 2pcs (Independent heating and temperature control, fixed) | 3pcs (Independent heating and temperature control, fixed) | 4pcs (Independent heating and temperature control, fixed) |
| Power Consumption | 450W | 1200W | 1400W | 2200W | 3000W |
| Interior Dimension (W×D×H mm) | 320×320×300 | 415×370×350 | 450×455×450 | 510×600×640 | 630×810×845 |
| External Dimension (W×D×H mm) | 615×450×495 | 720×500×545 | 760×590×1085 | 880×740×1270 | 790×1030×1853 |
| Volume | 20L | 50L | 90L | 210L | 430L |
