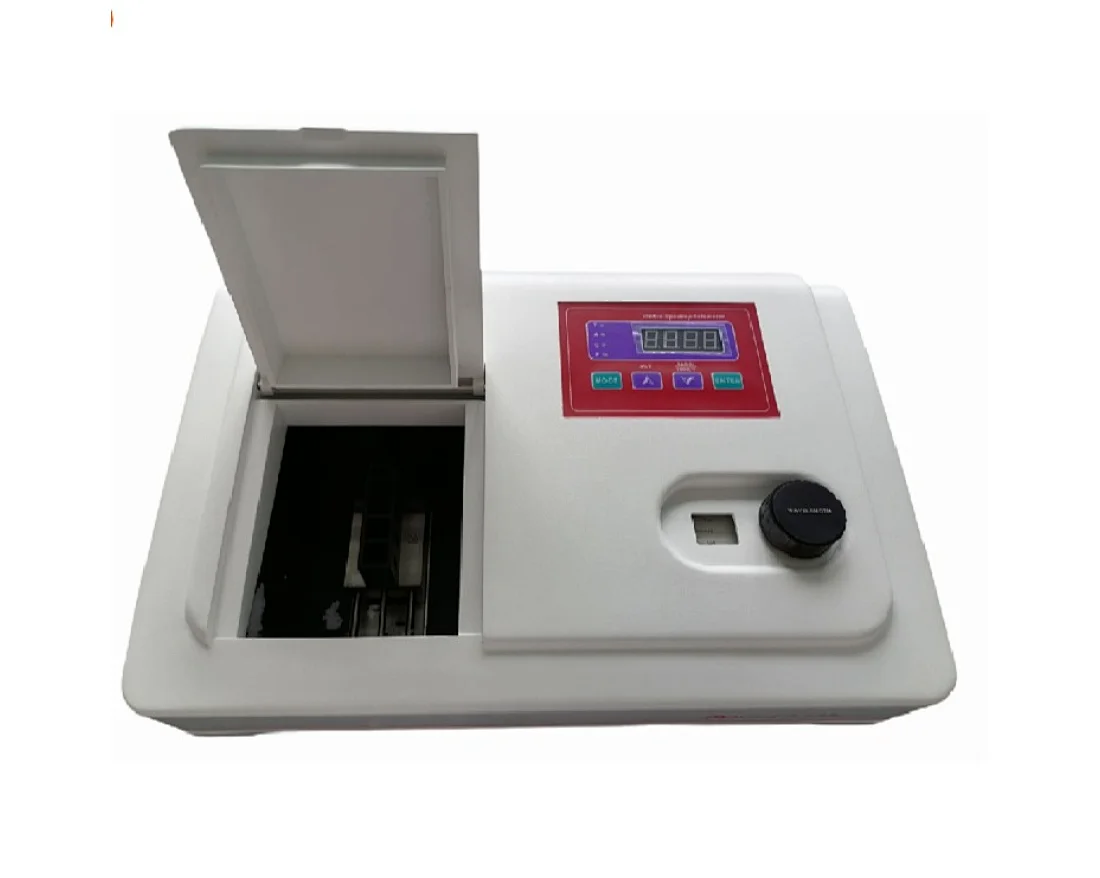

AELAB VIS Spectrophotometer Single Beam AE-S50-4V
AE-S50-4V Series spectrophotometers have the most attractive cost performance. It is widely used in colleges and enterprises for general quantitative analysis and experiments.

AELAB VIS Spectrophotometer Single Beam AE-S50-4V

* With microprocessor controlled, it can realize auto zero and auto 100% adjustment with one push-button.
* 1200 line grating which ensures high resolution, low stray light and high parameters accuracy.
* Equipped with USB port which can be connected to PC and edit data via software. Data can print while connect with a micro-printer.
* Four display mode: Absorption, transmittance, concentration and coefficient directly by different mode switching.
* Compact design, easy to carry.

+ Visible spectrophotometer with highly stable optics.
+ Extremely versatile with full functionality from 325 to 1000nm.
+ Spectral bandwidth 4nm.
+ Integrated user interface.
+ USB port for data storage.
+ Extensive range of accessories available.

Ordering Models:


Order CodeDescription
AE-S50-4VLCD Display, Single Beam,Visible Spectrophotometer, 325-1000nm, Bandwith: 4nm.

Technical Specifications:

Wavelength Range325-1000nm
Wavelength Accuracy±2nm
Wavelength Repeatability1nm
Band Width4nm/2nm
Photometric Accuracy±0.5%T
Photometric Repeatability0.3%T/0.2%T
Photometric Display RangeT. A. C. F
Stability0.002A/h @ 500nm
Stray Light≤0.3%T@220nm,Touch≤0.1%T, 360nm
Data Output PortUSB
Printer PortParallel Port
DisplayLCD Display/Touch Screen
LampsTungsten Halogen Lamp
DetectorSilicon Photodiode
SoftwareVIS software (Optional)
Packing Size & Gross WeightAE-S50-4V  570×450×330mm - 9kg
AE-S50-4V TOUCH  580x460x345mm - 12.5kg
