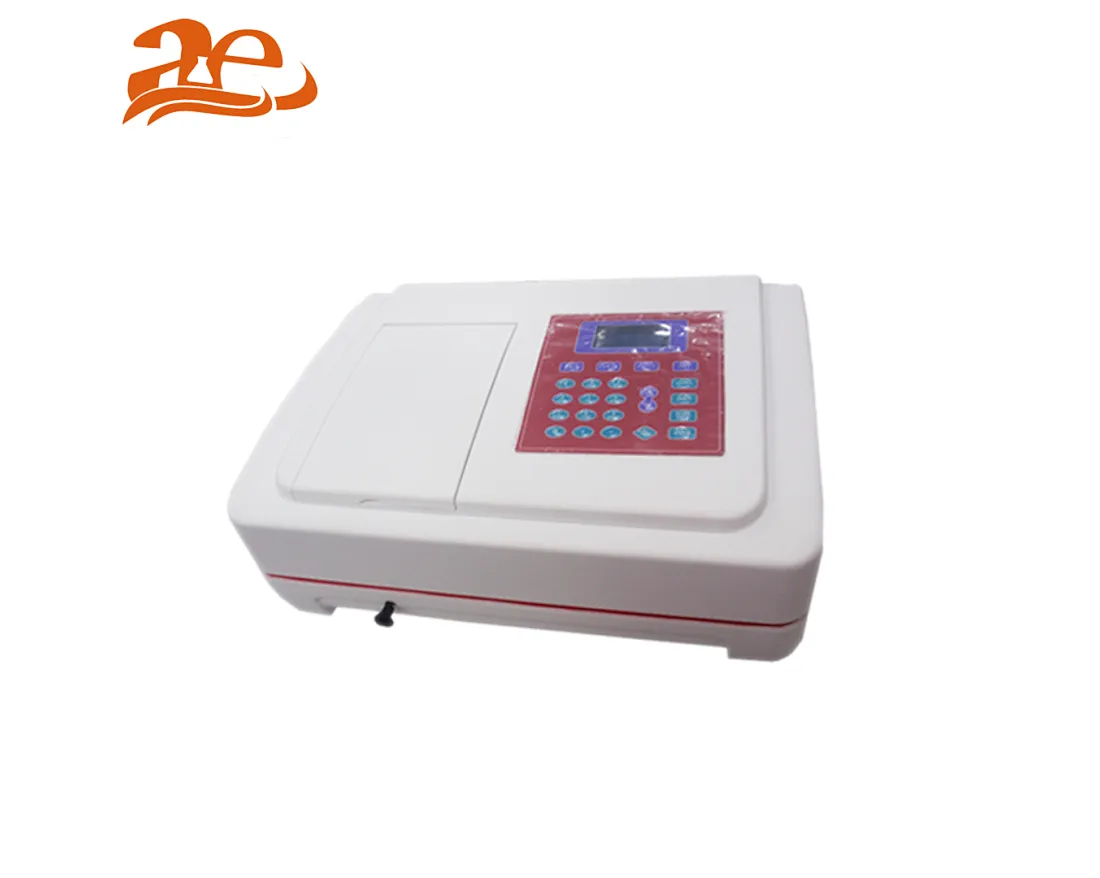

AELAB UV-VIS Spectrophotometer
AE-S70 Series spectrophotometers have the most attractive cost performance. It is widely used in colleges and enterprises for general quantitative analysis and experiments.
AE-S70-1U AE-S70-2U AE-S70-2V
1
Quantity:
UV-VIS Spectrophotometer S70 Series
AE-S70 Seriesspectrophotometers have the most attractive cost performance. It is widely used in colleges and enterprises for general quantitative analysis and experiments.
+The instrument use a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.
+8mm thick optical base: the instrument use a rigid die-cost aluminum base as its optical mount to ensure instrument stability and reliability.
Features:
+Single beam spectrophotometer with highly stable optics.
+Extremely versatile with full functionality
+UV range: 190 to 1100nm, VIS range:320-1100nm.
+Spectral bandwidth 1.8 & 2nm.
+6 inches & compact LCD display. Integrated user interface.
+USB port for data storage.
+ISO/CE Certificate passed.
+A & E Lab PC software available.
+Extensive range of accessories available .
Order Model:
Technical Specifications:
AE-S70 Seriesspectrophotometers have the most attractive cost performance. It is widely used in colleges and enterprises for general quantitative analysis and experiments.
+The instrument use a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.
+8mm thick optical base: the instrument use a rigid die-cost aluminum base as its optical mount to ensure instrument stability and reliability.
Features:
+Single beam spectrophotometer with highly stable optics.
+Extremely versatile with full functionality
+UV range: 190 to 1100nm, VIS range:320-1100nm.
+Spectral bandwidth 1.8 & 2nm.
+6 inches & compact LCD display. Integrated user interface.
+USB port for data storage.
+ISO/CE Certificate passed.
+A & E Lab PC software available.
+Extensive range of accessories available .
Order Model:
| Order Code | Description | |
| AE-S70-1U | Single beam,UV-VIS Spectrophotometer,LCD display | 4 cell holder, Wavelength range 190-1100nm, Bandwith: 1.8nm. |
| AE-S70-2U | 4 cell holder, Wavelength range 190-1100nm, , Bandwith: 2nm. | |
| AE-S70-2V | Single beam,Visible Spectrophotometer,LCD display | Wavelength range 320-1100nm, ,Bandwith: 2nm, wavelength accuracy: ±0.5nm. |
Technical Specifications:
| Wavelength | |
| Wavelength Range | UV Range: 190-1100nm Visible Range: 320-1100nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ±0.2nm |
| Band Width | 1.8nm/2nm |
| Wavelength Setting | Auto |
| Photometric | |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Display Range | 0-200%T, -0.3-3.0A, 0-9999C |
| Stability | 0.002A/h @ 500nm |
| Baseline Flatness | ±0.002A/±0.0015A |
| Noise | ±0.001A |
| Stray Light | ≤0.05%T @220nm, 360nm |
| Others | |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Optical System | Single Beam (1200 lines/mm grating) |
| Display | LCD (320x240/128x64 Dots ) |
| Lamps | Deuterium & Tungsten Halogen Lamp |
| Detector | Silicon Photodiode |
| Software | UV or VIS software |
| Power Supply | AC 220V/50Hz, 110V/60Hz. |
| Packing Size & Gross Weight | 700x610x440mm & 25kg |
