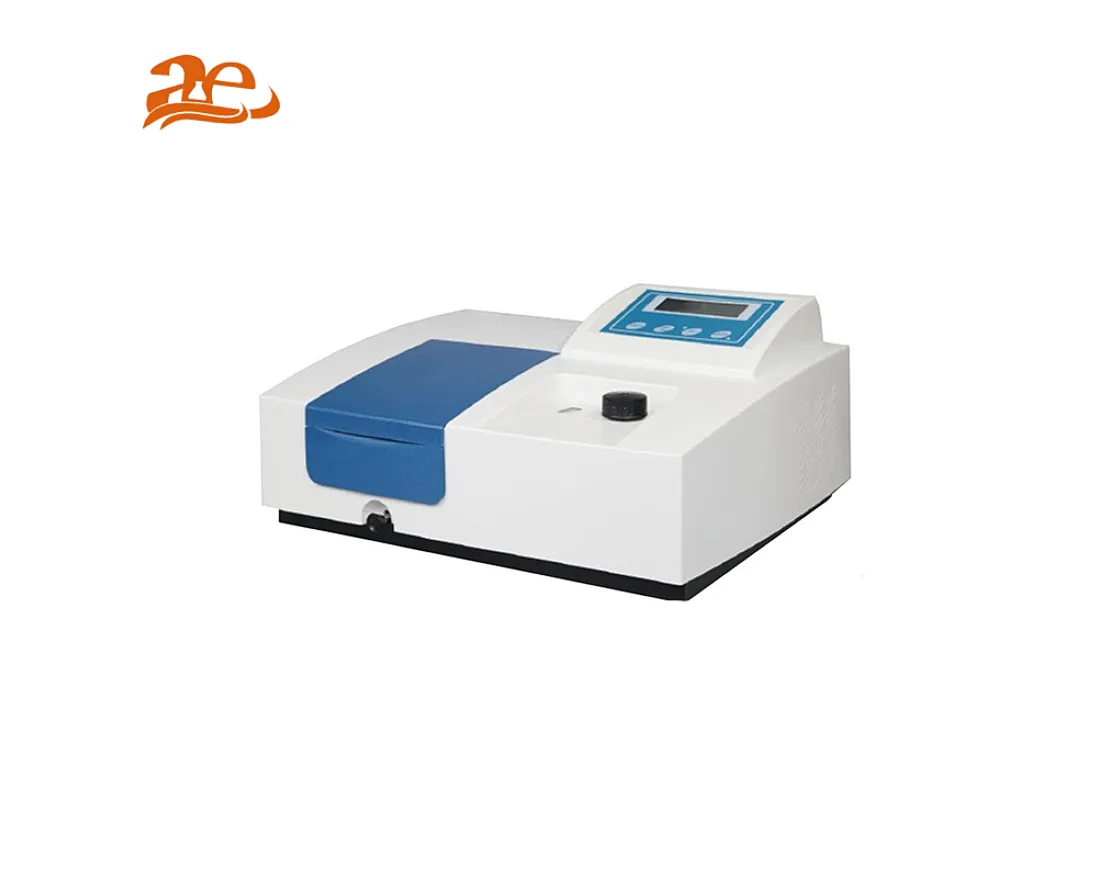

AELAB UV-VIS Spectrophotometer AE-752G /ViS Spectrophotometer AE-722G/721G
G series economic spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in Absorbance measurements.
AE-752G AE-722G AE-721G
1
Quantity:
AELABUV-VIS Spectrophotometer AE-752G/ViS Spectrophotometer AE-722G/721G
G series economic spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in Absorbance measurements.
Applications:
+Automatic zero and full scale adjustment
+Direct concentration read-out and concentration fator setting function
Technical Specifications:
Standrad Accessories Optional Accessories
G series economic spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in Absorbance measurements.
Applications:
+Sample compartment for 5-100nm cuvettes
+Equipped with RS232 port
+Precise automatic T/A changeover
+Automatic zero and full scale adjustment
+Direct concentration read-out and concentration fator setting function
+Software optional+Dedicated printer optional
Features:+High quality sillicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
+Backlit LCD display for an easy readout.
+Automatic 0A and 100%T.
+Easy switching of transmittance,absorbance and concentration modes,just by pressing one key.
+Direct concentration read-out and concentration factor setting function.
+Large sample compartment, for 5-mm path length cuvettes with optional holders.
+Easy to change the halogen lamp or deuterium lamp by the user himself.
Technical Specifications:
| Model | AE-752G | AE-722G | AE-721G-100 | AE-721G |
| Photometry | Single beam | |||
| Monochromator type | Czerny-Tuner | |||
| Wavelength setting | Manual Turn Knob | |||
| Detector | Silicon Photocell | |||
| Wavelength Range | 200-1000nm | 325-1000nm | 340-1000nm | |
| Wavelength Accuracy | ±2nm | |||
| Wavelength Repeatability | ≤1nm | |||
| Spectrum Bandwidth | 4nm | 5nm | ||
| Stray Light | ≤0.3%T(at 220nm Nal,360nm NaNO₂ ) | ≤0.5%T(at 360nm NaNO₂ ) | ||
| Photometric Range | 0.0 ~ 100.0% T / 0 ~ 1.999A / 0 ~ 1999C | |||
| Photometric Accuracy | ±0.5%T | |||
| Photometric Repeatability | ≤0.2%T | |||
| Noise | 100%(T) noise ≤ 0.3% (T), 0% (T) noise ≤ 0.2% (T) | |||
| Cuvette holder size | 50nm | 50mm | 100mm | 50mm |
| Standard Accessory | PC Software | PC Software | PC Software | PC Software |
| Power | AC220v±22v,50Hz±1Hz, 130W | AC220v±22v,50Hz±1Hz, 50W | ||
| Packing size | 560mm*490*285mm, 0.8㎥ | |||
| Gloss weight | 16kg | 14kg | ||
Standrad Accessories Optional Accessories
+User manual 1pc +Thermal printer
+Glass cuvette 1cm 4pcs ( 721G/721G-100/722G only ) +Cuvette holder 50mm
+Quartz cuvette 1cm 2pcs +Cuvette holder 100mm(721G-100 only)
+Power cable 1pc +UV WIN7 software
+Fuse 2pcs
