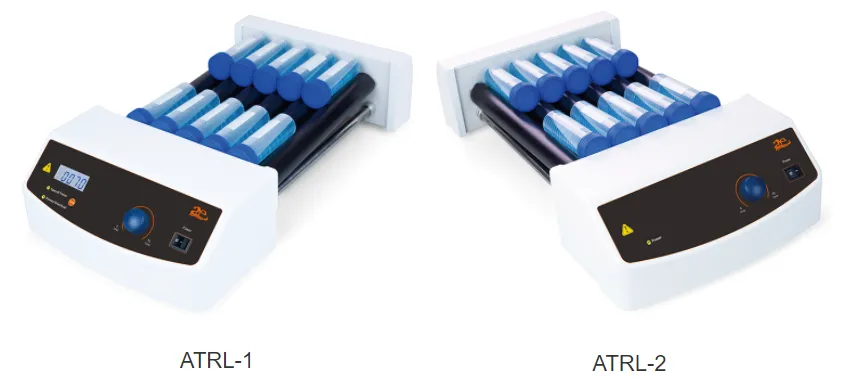

AELAB Tube Roller ATRL-1

Model NO.: ATRL-1

+ Maximum load of up to 4Kg.
+ Gentle mixing in rolling motion with a capacity of 6 tubes.
+ LCD digital display of adjustable speed and time (ATRL-1).
+ Speed adjustable from 10-70rpm and timer from 1-1199min (ATRL-1).
+ Speed adjustable from 0-70rpm (ATRL-2).
+ LED overload indicator.

Quantity:

Product Description

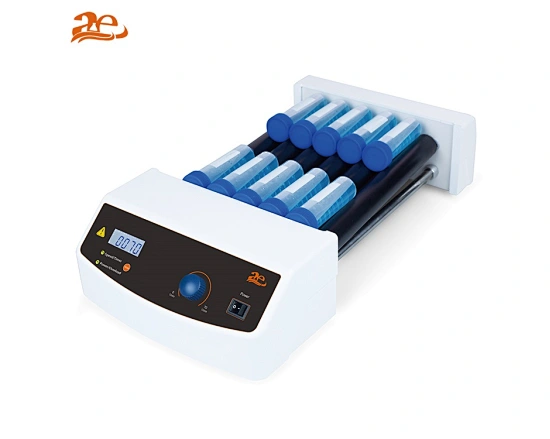

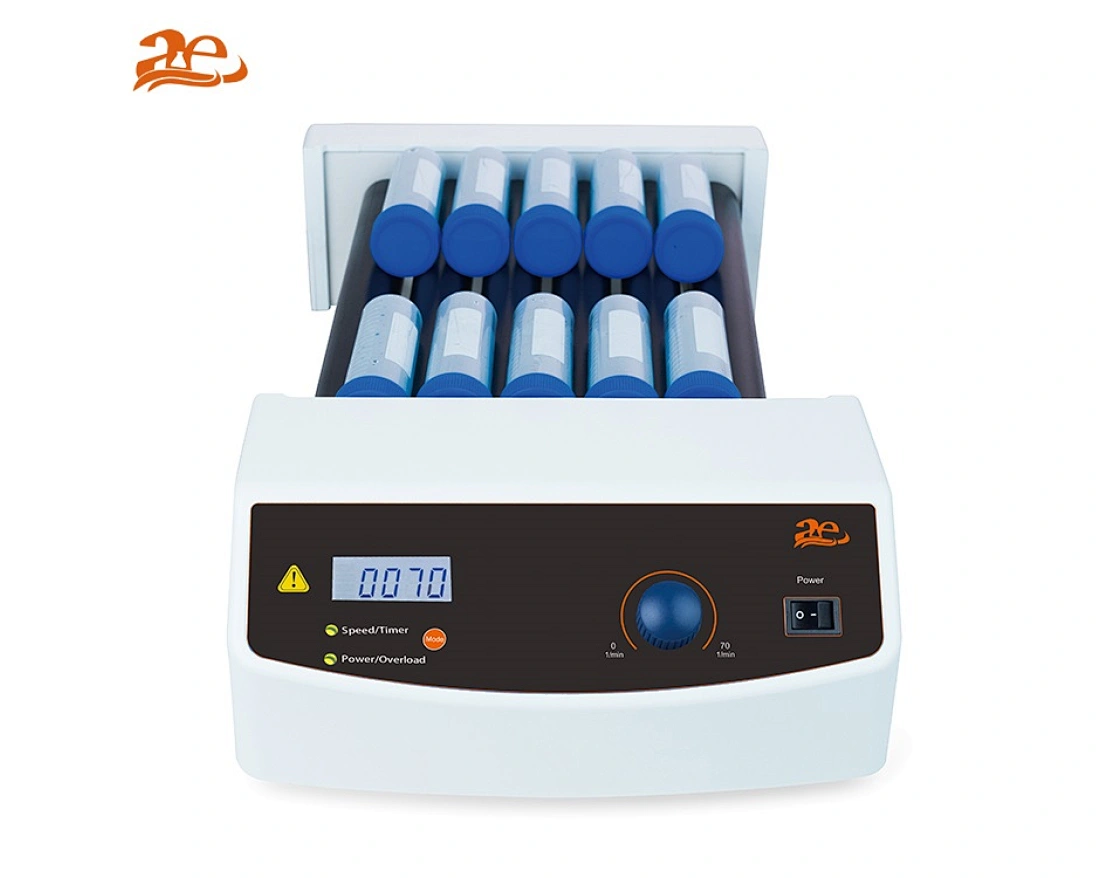

AELAB Tube Roller
Tube Rollers are used for uniform mixing of blood samples, viscous liquids, and whole blood components in the anticoagulation tubes or bottles. These rollers can mix samples in any type of liquid containers. Tube rollers are microprocessor controlled with digital timer.

Features:
+ Maximum load of up to 4Kg.
+ Gentle mixing in rolling motion with a capacity of 6 tubes.
+ LCD digital display of adjustable speed and time (ATRL-1).
+ Speed adjustable from 10-70rpm and timer from 1-1199min (ATRL-1).
+ Speed adjustable from 0-70rpm (ATRL-2).
+ LED overload indicator.

Technical Specifications:

Specifications	ATRL-1	ATRL-2
Amplitude	24mm	24mm
Motor type	DC motor	DC motor
Rocking motion	Rocking and rolling	Rocking and rolling
Amplitude	24mm	24mm
Max. load capacity	4kg	4kg
Number of rollers	6	6
Roller size[length]	280mm	280mm
Speed range	10 -70rpm	0-70rpm
Speed display	LCD	Scale
Timer	Yes	--
Timer display	LCD	--
Time setting range	1-1199min	--
Operation mode	Continuous/timer	Continuous
Voltage	100-240V,50/60Hz	100-240V,50/60Hz
Power	30W	25W
Dimension [D×W×H]	450×260×120mm	450×260×120mm
Weight	5.1kg	4.5kg
Permissible ambient temperature and humidity	5-40°C,80%RH	5-40°C,80%RH
Protection class	IP21	IP21
