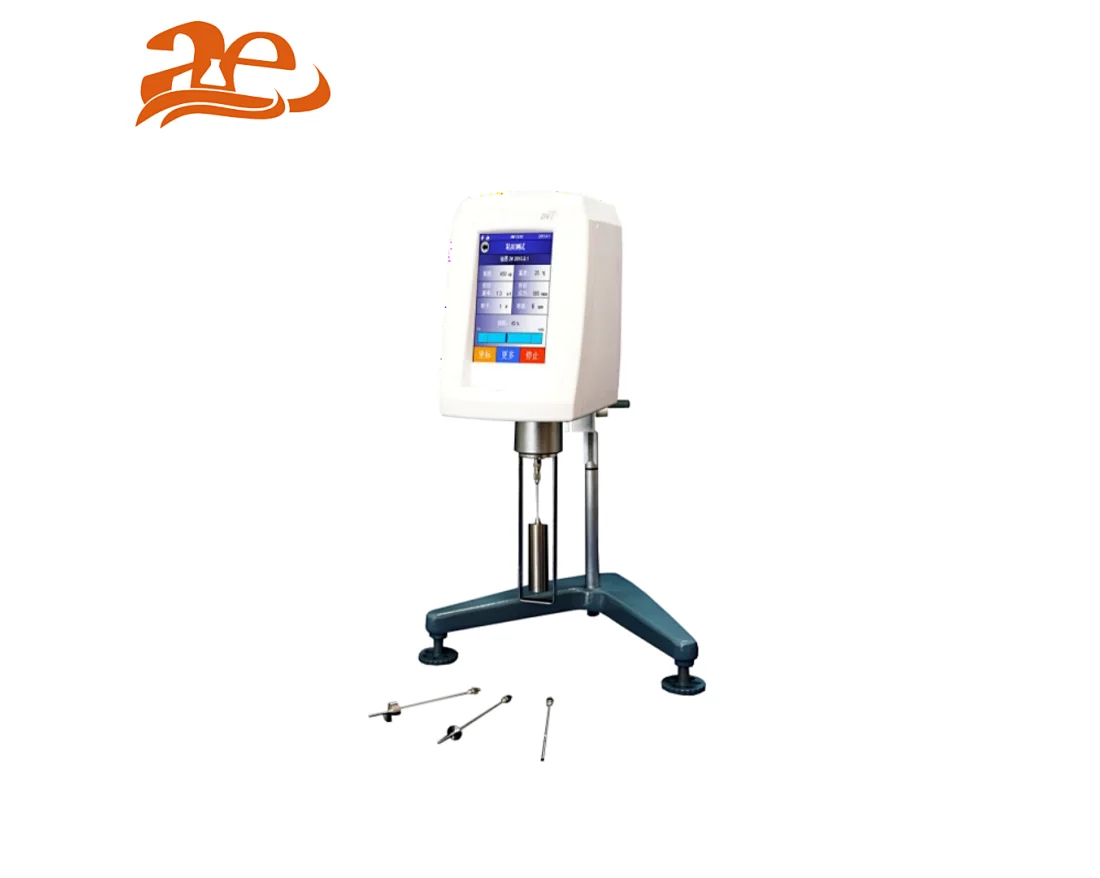

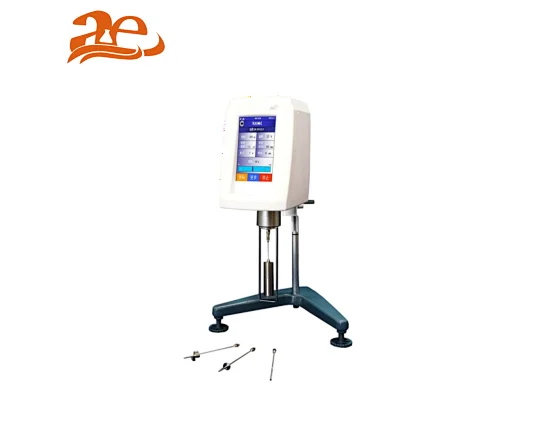

AELAB Touch Screen Rotational Viscometer
Touch Screen Rotational Viscometer with stylish and modern high technology , which can measure the viscosity quickly and accurately. With CE Certification.
AE-NDJ-5T AE-NDJ-9T AE-NDJ-8T
Quantity:
Touch Screen Rotational Viscometer
Touch Screen Rotational Viscometer with stylish and modern high technology , which can measure the viscosity quickly and accurately. With CE Certification.
Features:
Touch Screen Rotational Viscometer with stylish and modern high technology , which can measure the viscosity quickly and accurately. With CE Certification.
Features:
+ With 30pcs measuring progress, save 30pcs test result data, get the Viscosity and related data of the sample quickly and accurately.
+ inch color touch screen , shows many specifications and working condition, make the operate more easier and intuitive.
+ Using ARM technology, built-in Linux system, user interface is simple and clear, through analysis program creating and testing data analysis, quickly and easily test the viscosity.
+ Accurate, each measuring range is computer self-calibration, high precision, and avoid error.
+ Display: viscosity, temperature, shear rate, shear stress, testing value full fill measuring value percentage, measuring range overflow alarm, auto-scan, the maximum measuring range of current combined rotors speed , date, time, and it can show kinematic viscosity at a known density situation, great to meet users’ different requirements.
+ With timing Measurements function, and Temperature Probe Interface.
+ It can show the curve, printing data.
+ Prepositive level meter, level adjustment, easy and intuitive.

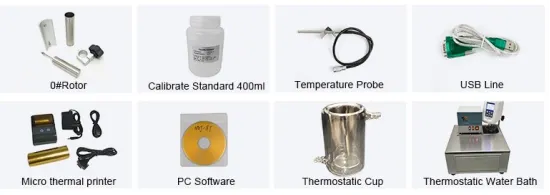

+ Optional accessories: Temperature probe, thermostatic water bath , thermostatic cups, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc.
Technical Specifications:
#rotational viscometer
#brookfield rotational viscometer
Technical Specifications:
| Model | AE-NDJ-5T | AE-NDJ-9T | AE-NDJ-8T |
| Rotating speed ( r/min ) | 3/6/12/30/60 | 0.3/0.6/1.5/ 3/6/12/30/60 | |
| Measuring range (mPa.s ) | 1~100000 | 1~2000000 | |
| optional accessory: 0# rotor for sample viscosity is less 10mPa.s | |||
| Rotor | 1-4# rotors ( Standard ) ; 0# rotors ( optional ) | ||
| Measuring error(Newtonian liquids) | ±1% | ±0.5% | ±1% |
| Repetitive error(Newtonian liquids) | ±0.5% | ±0.25% | ±0.5% |
| Timer function | yes | yes | yes |
| Data Output | RS232*2pcs, temperature probe interface*1pc | ||
| Power | 110V ~240V , 50Hz / 60Hz | ||
| Packing | 350 *350 *450mm & 7kg | ||
