AELAB Thermo Shaker AE-TSI400 Heating
+ Clear and easy-to-read TFT screen.
+ Excellent performance for temperature controlled mixing applications.
+ Up to 9 user define programs.
+ A wide range of heating blocks to accommodate tubes with different capacities.
+ Aluminum heating blocks enhance heat transfer.
+ Easily interchangeable blocks with magnetic adhesion and without any tools..
+ A transparent plastic lid is available to better preserve the temperature.
+ Excellent performance for temperature controlled mixing applications.
+ Up to 9 user define programs.
+ A wide range of heating blocks to accommodate tubes with different capacities.
+ Aluminum heating blocks enhance heat transfer.
+ Easily interchangeable blocks with magnetic adhesion and without any tools..
+ A transparent plastic lid is available to better preserve the temperature.
AE-TSI400
Quantity:

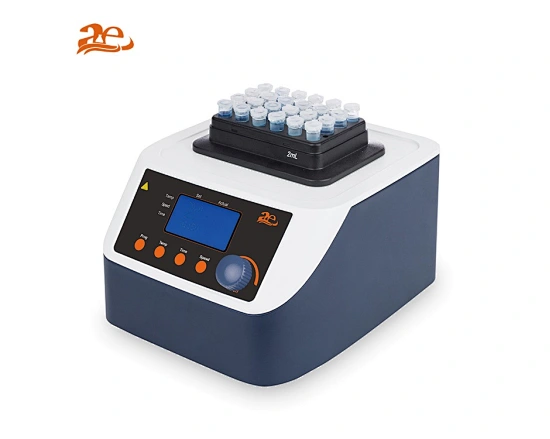

AELAB Thermo Shaker AE-TSI400 Heating
The Thermo Shakerseries allow for precise and efficient heating and mixing, as well as excellent temperature accuracy and uniformity, offering a wide range of applications, such as gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial growth, etc.
Features:
+ Clear and easy-to-read TFT screen.
+ Excellent performance for temperature controlled mixing applications.
+ Up to 9 user define programs.
+ A wide range of heating blocks to accommodate tubes with different capacities.
+ Aluminum heating blocks enhance heat transfer.
+ Easily interchangeable blocks with magnetic adhesion and without any tools..
+ A transparent plastic lid is available to better preserve the temperature.
Technical Specifications:
Block Ordering Detail:
The Thermo Shakerseries allow for precise and efficient heating and mixing, as well as excellent temperature accuracy and uniformity, offering a wide range of applications, such as gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial growth, etc.
Features:
+ Clear and easy-to-read TFT screen.
+ Excellent performance for temperature controlled mixing applications.
+ Up to 9 user define programs.
+ A wide range of heating blocks to accommodate tubes with different capacities.
+ Aluminum heating blocks enhance heat transfer.
+ Easily interchangeable blocks with magnetic adhesion and without any tools..
+ A transparent plastic lid is available to better preserve the temperature.
Technical Specifications:
| Model | AE-TSI100 | AE-TSI200 | AE-TSI300 | AE-TSI400 |
| Functions | Heating, Cooling & Mixing | Heating & Mixing | Heating & Cooling | Heating |
| Temperature range | Heating: RT ~100°C Cooling: RT~ below RT 15°C | Heating: RT~ 100°C | Heating: RT ~110°C Cooling: RT~ below RT 25°C | Heating: RT+5°C ~ 100°C |
| Temperature setting range | 0.1-100℃ | 15-100℃ | -5-110℃ | 15-100℃ |
| Temperature control accuracy | ± 0.5°C | |||
| Temperature uniformity | Max.± 0.5°C | |||
| Max. heating rate | 5.5°C/min | |||
| Max. cooling rate | 5°C /min(100°C-RT.) 0.5°C/min(below RT) | --- | 2.5°C /min(100°C-RT.) 0.5°C/min(below RT) | --- |
| Mixing frequency | 200-1500rpm | --- | ||
| Mixing orbit | 3mm | |||
| Time Setting Range | 0~99h30min | |||
| Program | 9 | |||
| Screen | TFT | |||
| Overheating protection | 150°C | |||
| Adapter block material | aluminum | |||
| Voltage, Frequency | DC12V,100–240V,50/60Hz | |||
| Power | 200W | |||
| Dimension [D×W×H] | 200×235×120mm ( without the heating block ) | |||
| Weight | 7.3kg | |||
Block Ordering Detail:
| Order No. | Speed | Capacity | Diameter x Depth | Order No. | Speed | Capacity | Diameter x Depth |
| A301 | 1500rpm | 24x0.5mL | 8.1x26mm | F306 | 800rpm | 8x15mL | 16.9x80mm |
| B302 | 1500rpm | 24x1.5mL | 10.9x30.8mm | G307 | 600rpm | 4x50mL | 29.6x80mm |
| C303 | 1500rpm | 24x2mL | 10.9x30.8mm | H308 | 1500rpm | 0.2mLx96 PCR plate | |
| D304 | 1500rpm | 8x5mL(round bottom) | 13.6x42mm | 1309 | 1500rpm | microplate | |
| E305 | 1400rpm | 8x5mL(cone bottom) | 17x51.5mm |
