Model NO.
AE-TSI300
+ Clear and easy-to-read TFT screen.
+ Excellent performance for temperature controlled mixing applications.
+ Up to 9 user define programs.
+ A wide range of heating blocks to accommodate tubes with different capacities.
+ Aluminum heating blocks enhance heat transfer.
+ Easily interchangeable blocks with magnetic adhesion and without any tools..
+ A transparent plastic lid is available to better preserve the temperature.
Quantity:
AELAB Thermo Shaker AE-TSI300 Heating , Cooling

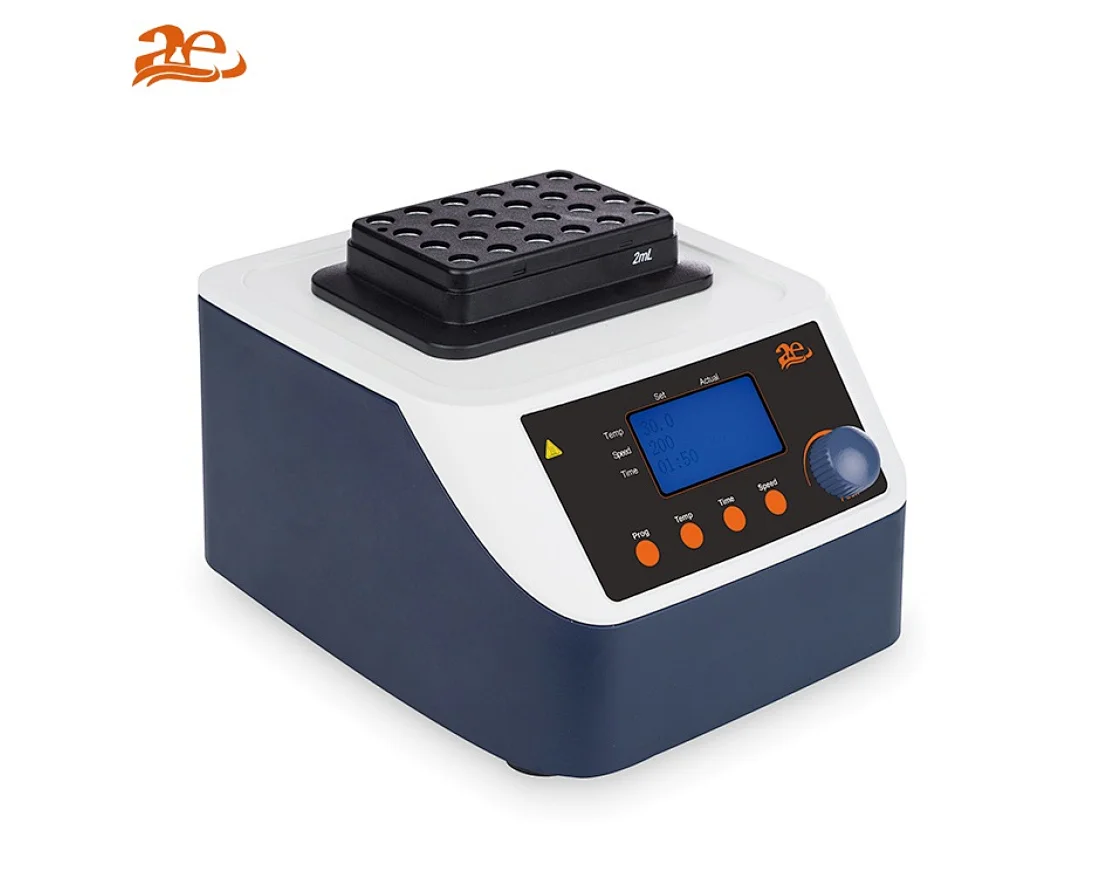

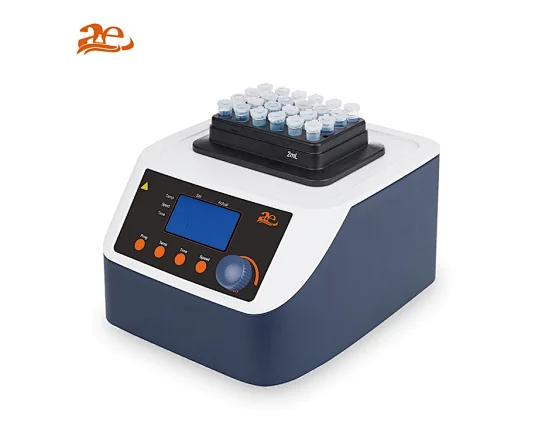

The Thermo Shakerseries allow for precise and efficient heating and mixing, as well as excellent temperature accuracy and uniformity, offering a wide range of applications, such as gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial growth, etc.

Features:
+ Clear and easy-to-read TFT screen.
+ Excellent performance for temperature controlled mixing applications.
+ Up to 9 user define programs.
+ A wide range of heating blocks to accommodate tubes with different capacities.
+ Aluminum heating blocks enhance heat transfer.
+ Easily interchangeable blocks with magnetic adhesion and without any tools..
+ A transparent plastic lid is available to better preserve the temperature.


Technical Specifications:

ModelAE-TSI100AE-TSI200AE-TSI300AE-TSI400
FunctionsHeating, Cooling & MixingHeating & MixingHeating & CoolingHeating
Temperature rangeHeating: RT ~100°C
Cooling: RT~ below RT 15°C
Heating: RT~ 100°CHeating: RT ~110°C
Cooling: RT~ below RT 25°C
Heating:
RT+5°C ~ 100°C
Temperature setting range0.1-100℃15-100℃-5-110℃15-100℃
Temperature control accuracy± 0.5°C
Temperature uniformityMax.± 0.5°C
Max. heating rate5.5°C/min
Max. cooling rate5°C /min(100°C-RT.)
  0.5°C/min(below RT)
---2.5°C /min(100°C-RT.)
0.5°C/min(below RT)
---
Mixing frequency200-1500rpm---
Mixing orbit3mm
Time Setting Range0~99h30min
Program9
ScreenTFT
Overheating protection150°C
Adapter block materialaluminum
Voltage, FrequencyDC12V,100–240V,50/60Hz
Power200W
Dimension [D×W×H]200×235×120mm ( without the heating block )
Weight7.3kg

Block Ordering Detail:

Order No.SpeedCapacityDiameter x DepthOrder No.SpeedCapacityDiameter x Depth
A3011500rpm24x0.5mL8.1x26mmF306800rpm8x15mL16.9x80mm
B3021500rpm24x1.5mL10.9x30.8mmG307600rpm4x50mL29.6x80mm
C3031500rpm24x2mL10.9x30.8mmH3081500rpm0.2mLx96 PCR plate
D3041500rpm8x5mL(round bottom)13.6x42mm13091500rpmmicroplate
E3051400rpm8x5mL(cone bottom)17x51.5mm


  • AELAB Thermo Shaker AE-TSI100.pdf:Downloads
