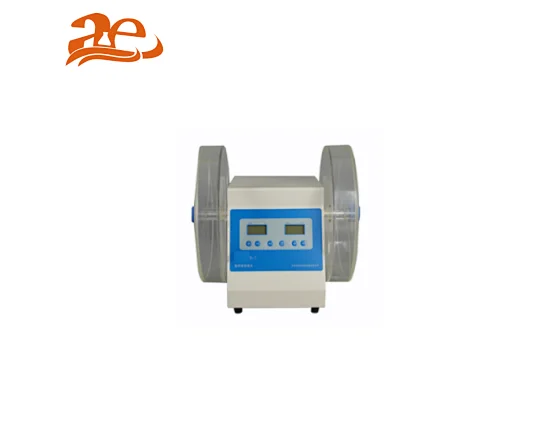

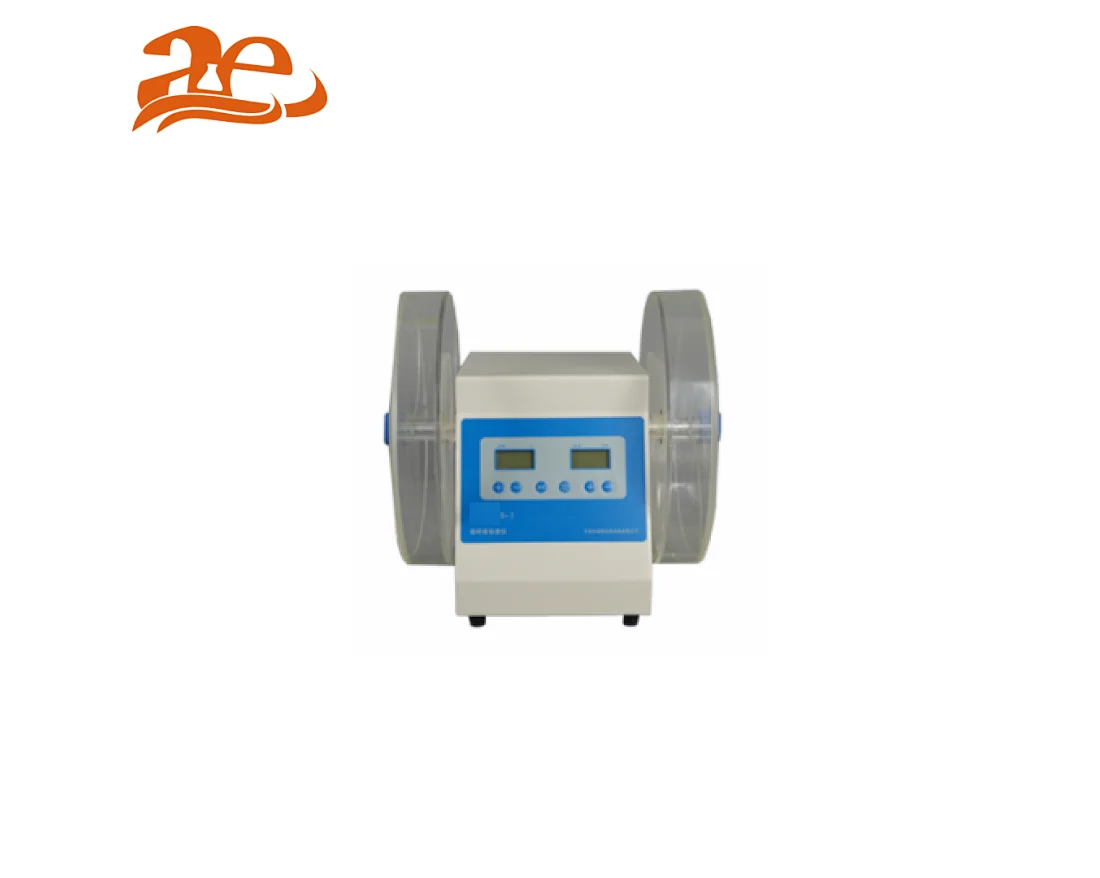

AELAB Tablet Friability Tester
It is used for detecting friability/abrasion of tablet.
AE-CS-I AE-CS-II AE-CS-III AE-CS-IV
Quantity:
Tablet Friability Tester
It is used for detecting friability/abrasion of tablet.
Features:
+ Automation: auto-test, auto-diagnose, auto-alarm.
+ Intelligently control the rotating speed of cylinder and revolutions.
+ One drum runs synchronously. Auto stop at timing point. (only for AE-CS-IV)
+ Single path and double cylinder, synchronous operation and automatic stop.
+ The revolution of the drum can be preset at any time, either preset or real data is displayed on the LCD.
+ Microprocessor unit is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Model | AE-CS-I | AE-CS-II | AE-CS-III | AE-CS-IV |
Cylinder Number | 2 | 1 | ||
Cylinder Radius | Φ286 | |||
Cylinder Depth | 39mm | |||
Tablet Fall Height | 156mm | |||
Rotating Speed | 20~100rpm | 25 rpm | ||
Rotation Count | 5~900 turns | 100 turns | 5~900 turns | 20-900 turns |
Consumption | 40W | 20W | 40W | |
Power Supply | AC110 /220V±10%, 50/60Hz | |||
External Size(W*D*H) mm | 370*300*340 | 300*200*340 | ||
Package Size(W*D*H) mm | 440*400*525 | 410*295*430 | ||
Gross Weight (kg) | 12 | 8 | ||
