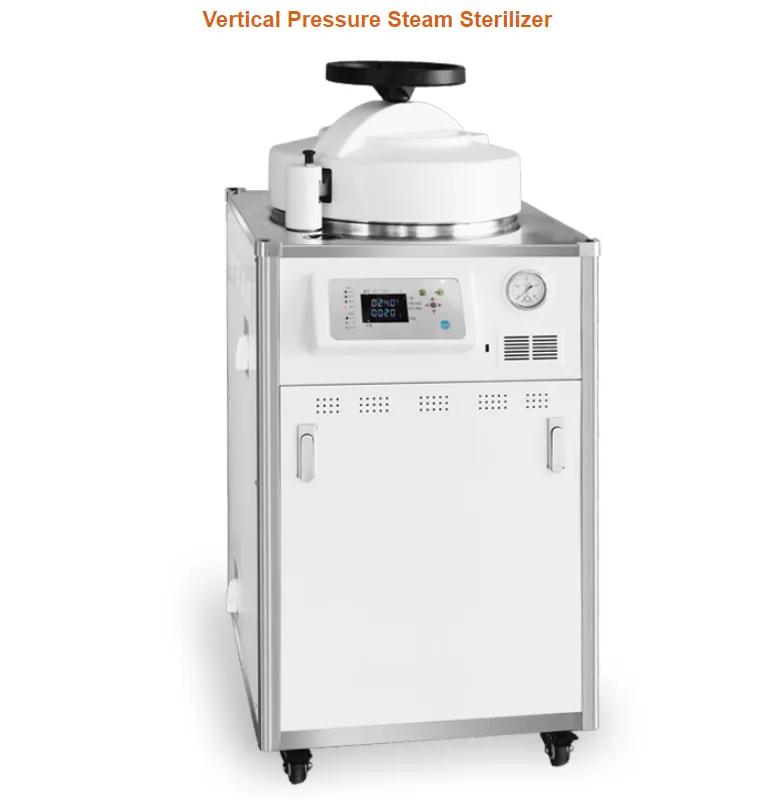

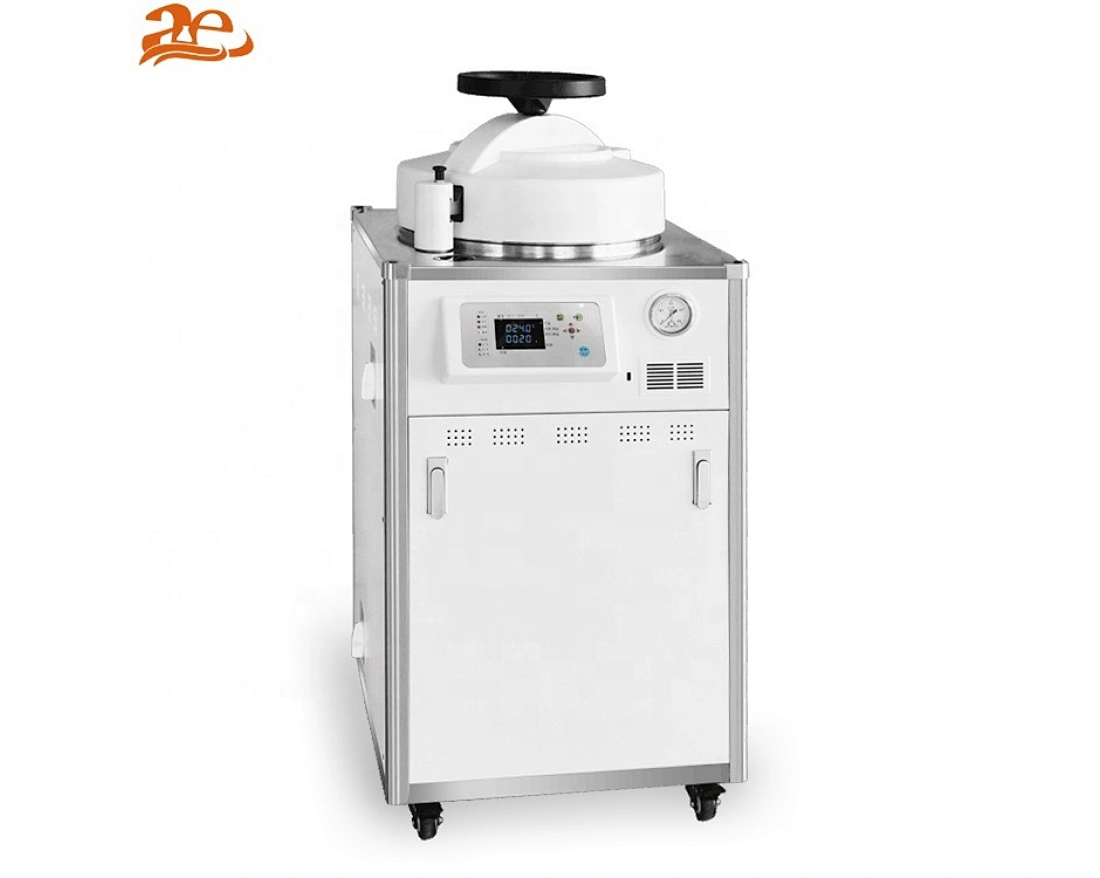

AELAB Steam Sterilizer Autoclave Sterilization AE-VD30 AE-VD50 AE-VD75
AELAB Steam Sterilizer Autoclave Sterilization AE-VD30 AE-VD50 AE-VD75

AELAB Steam Sterilizer Autoclave Sterilization AE-VD30 AE-VD50 AE-VD75

Model NO.
AE-VD30 AE-VD50 AE-VD75
+ The shell case is made of high temperature thermoplastic material with outstanding impact resistance and stainless steel.
+ The pot body of sterilizer is made of food grade stainless steel(304).
+ The lid opening and closing device adopts the lever type multi-link synchronous telescopic structure, which makes the lid and the pot body open and close flexible and light, safe and reliable.
Quantity:
AELAB Steam Sterilizer Autoclave Sterilization  AE-VD30 AE-VD50 AE-VD75

Features :
+ The shell case is made of high temperature thermoplastic material with outstanding impact resistance and stainless steel.
+ The pot body of sterilizer is made of food grade stainless steel(304).
+ The lid opening and closing device adopts the lever type multi-link synchronous telescopic structure, which makes the lid and the pot body open and close flexible and light, safe and reliable.


Control and operation

The console uses the LCD window graphic dynamic display, the function settings are all selected by scrolling graphic and text, the whole sterilization phase is monitored by micro-computer graphic display and automatic cycle control, and the automatic shutdown is initiated when sterilization phase ends(with an alarm).
Function description
  1. It has a one-button sterilization function selection, which can make a quick and clear choice based on different items.
  2. With air-cooled chilling device to ensure that the pot body is quickly cooled at the end of sterilization, thus reducing the time to open the lid.
  3. It has the function of preheating and melting of sterilized items and has time and temperature selection for the items to be dissolved.
  4. A USB interface is available for the convenience if monitoring process with connection to a computer and of collecting data.
  5. Sterilization reservation function is available so that users can start itat a set time.
  6. Automatic fault detection and judgment system is in place.
  7. The full-automatic control model has the function of discharging the low temperature air and exhausting steam when sterilization procedure ends.
Safety devices
1.It has a safety Interlocking device structure of which is featured by electronic and mechanical interaction, thus ensuring that it automatically locks the lid when there is pressure in the pot and avoid any danger resulted from improper operations.
2. Double protection system with the mechanical safety relief valve and electronically controlled overvoltage protective device.
3. It has heater anti-drying protection function and leakage protection system.
4. The full-automatic control model has the function of discharging the low temperature air and exhausting steam when sterilization procedure ends.

Safety devices
  1. It has a safety Interlocking device structure of which is featured by electronic and mechanical interaction, thus ensuring that it automatically locks the lid when there is pressure in the pot and avoid any danger resulted from improper operations.
  2. Double protection system with the mechanical safety relief valve and electronically controlled overvoltage protective device.
  3. It has heater anti-drying protection function and leakage protection system.
Technical Specifications:
Parameter/ModelAE-V30KBS/V50KBS/V75KBSAE-VD30/VD50/VD75
ConfigurationSemi-automatic ControlFull-automatic control,Automatic Exhaust
The main materialStainless steelStainless steel
Volume/GW30L/50L/75L
93/96/101kg
30L/50L/75L
93/96/101kg
Voltage/Power220V/3.5Kw220V/3.5Kw
Packing size (L x W x H mm)760 x 650 x 1270 (30L/50L)
760 x 650 x1430 (75L)
760 x 650 x 1270 (30L/50L)
760 x 650 x1430 (75L)
Sterilization chamber volume (D x H mm)370x400(30L)
370x550(50L)
370X700(75L)
370x400(30L)
370x550(50L)
370X700(75L)
Basket size(D x H mm)335x190(30L)
335x360(50L)
350x190x3pcs (75L)
335x190(30L)
335x360(50L)
350x190x3pcs (75L)
Time setting range0-99 h0-99 h
Rated working pressure0.142MPa0.142MPa
Sterilization temperature setting range50126℃50126℃
