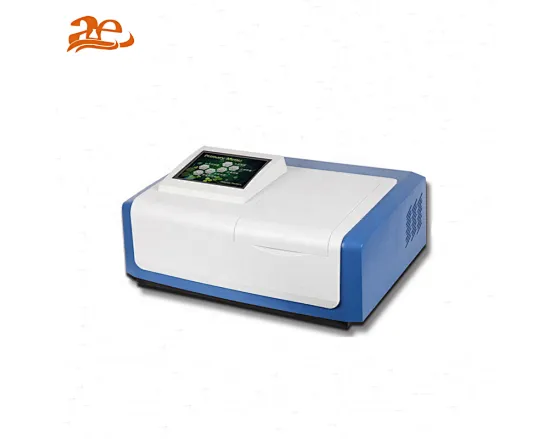

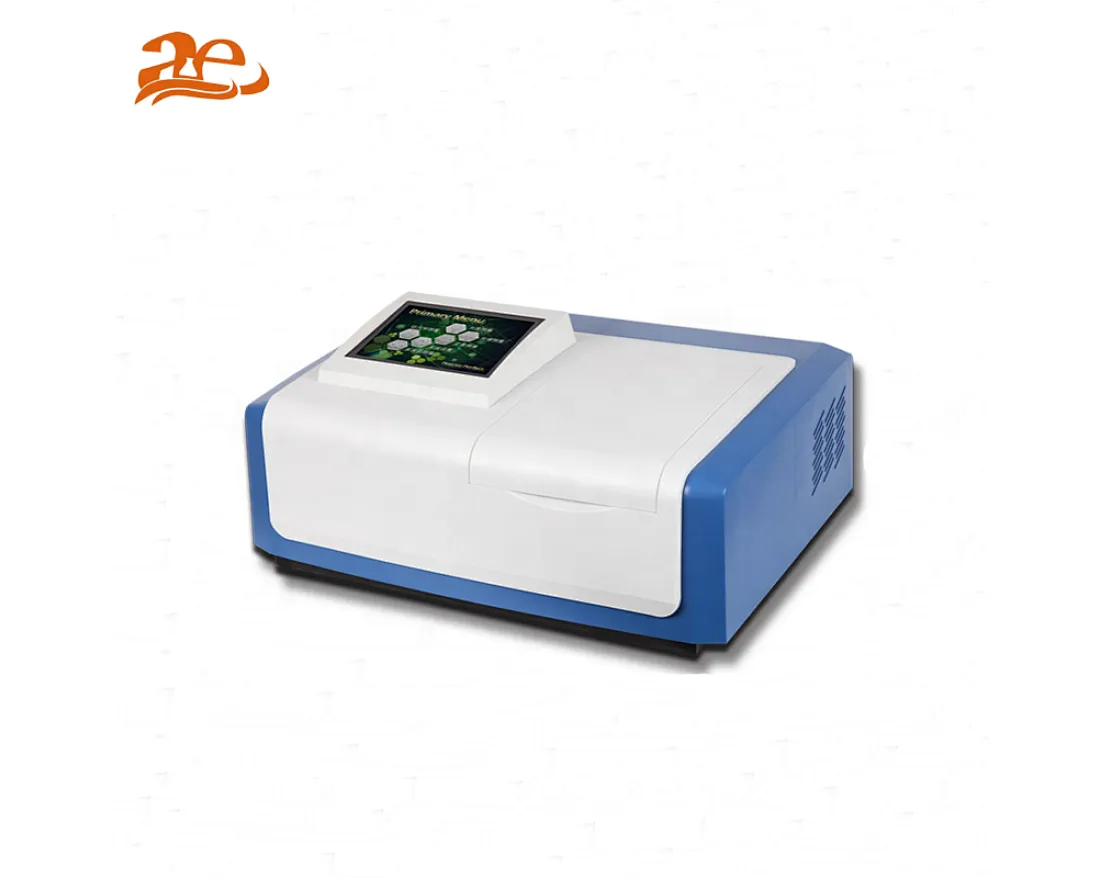

AELAB Split Beam UV-VIS Spectrophotometer
Split Beam UV-VIS Spectrophotometer survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices. and blazed holographic gratings.
AE-L6s AE-L6 AE-L3S AE-L3
1
Quantity:
AELABSplit Beam UV-VIS Spectrophotometer AE-L6s/AE-L6/AE-L3S/AE-L3
Split Beam UV-VIS Spectrophotometer survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices. and blazed holographic gratings.
They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
With powerful functions, the equipmen,such as:
Features:
Technical Specifications:
Standrad Accessories Optional Accessories
Split Beam UV-VIS Spectrophotometer survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices. and blazed holographic gratings.
They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
With powerful functions, the equipmen,such as:
+Full-spectrum scanning
+Linear regression
+Detailed spectrum scanning
+Detailed spectrum scanning
+Concentration direct reading
+Tibased kinetics determination
+Peak / Valley detecting
+GOTO λ
+Multi-wavelength measurement
Features:
+Split beam optical system
+Automatic wavelength settings
+8-inch multi color touch-screen
+8-inch multi color touch-screen
+Automatic 8 position cuvette holder
+Automatic zero and full scale adjustment
+Equipped with USB port
+Thermal plotter optional Software optional
Technical Specifications:
| Model | AE-L6S | AE-L6 | AE-L3S | AE-L3 |
| Photometry | Split Beam | |||
| Monochromator Type | Czerny-Turner | |||
| Focal Length | 160mm | |||
| Grating | 1200 lines/mm | |||
| Detector | Silicon Photocell | |||
| Spectrum Bandwidth | 2nm | |||
| Wavelength Range | 190-1100nm | 325-1100nm | ||
| Wavelength Accuracy | ± 0.5nm | |||
| Wavelength Repeatability | ≤ 0.2nm | |||
| Photometric Range | 0.0 ~ 200.0% T; -0.301 ~ 4.000A; 0.000 to 9999C | |||
| Photometric Accuracy | ± 0.3% T ;± 0.002Abs (0 - 0.5A) ± 0.004Abs (0.5 - 1A) | ± 0.5% T | ||
| Photometric Repeatability | ≤ 0.15% T; 0.001Abs (0 - 0.5A) 0.002Abs (0.5 - 1A) | ≤ 0.2% T | ||
| Scanning Speed | Fast, medium, slow | --- | Fast, medium, slow | --- |
| Baseline Flatness | ≤ ± 0.002A(200-1090nm) | --- | ≤±0.002A(335-1090nm) | --- |
| Stray Light | ≤ 0.03% , NaI at 220 nm NaNO2 at 360 nm | ≤0.05% , NaI at 220 nm NaNO2 at 360 nm | ≤ 0.05% NaNO2 at 360 nm | |
| Noise | 100%(T) noise ≤ 0.15% (T), 0% (T) noise ≤ 0.1% (T) | 100%(T) noise ≤ 0.2% (T), 0% (T) noise ≤ 0.1% (T) | ||
| Baseline Drift | ± 0.0009 Abs / h (250nm and 500nm after preheat warm up for 2 hours ) | ± 0.0009 Abs / h ( 500nm after preheat warm up for 2 hours ) | ||
| Power | AC220v± 22v, 50Hz± 1Hz, 200W | AC220v± 22v, 50Hz± 1Hz, 120W | ||
| COM Port | USB | |||
| Packing Size | 740mm*630mm*450mm, 0.21m³, 35kg. | |||
| Standard accessory | User manual 1pc ; Power cable 1pc ; Fuse 2pcs; Glass cuvette 1cm 4pcs ; Quartz cuvette 1cm 2pcs ( L6, L6S only ) | |||
| Optional accessory | Thermal plotter ; Cuvette holder 50mm; Cuvette holder 100mm ; UV WIN8 Spectrum data processing software | |||
Standrad Accessories Optional Accessories
+Operation manual 1 +UV WIN8 Spectrum data processing software
+Glass cuvette 1cm 4pcs +Thermal Plotter
+Quartz cuvette 1cm 2pcs +Cuvette holder 100mm
+Power cable 1 +Cuvette holder 50mm
+Cuvette holder 10mm
+Fuse 2pcs
