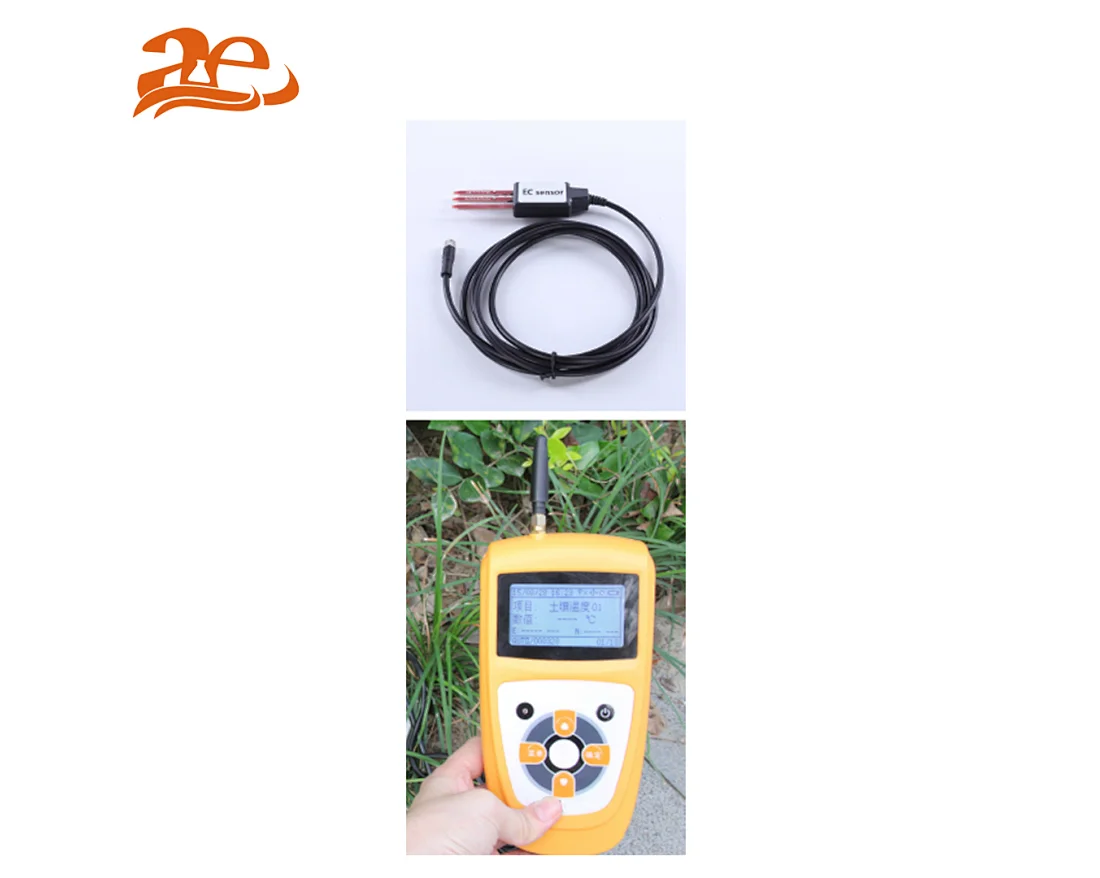

AELAB Soil moisture, temperature, and salinity recorder TZS-ECW
Detect soil moisture content temperature, and salinity same time
TZS-ECW
1
Quantity:
Soil moisture, temperature, and salinity recorder TZS-ECW
Function
Detect soil moisture content temperature, and salinity same time
Characteristic:
Handset:
+Small and exquisite, easy to carry and LCD display;
+Collect settings: working unattended can be set to timing or manual collect data,recording and save data automatically;
+Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function:charging protection, low voltage prompt. Also can be placed for a long time to record location;
+Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
+Data can be read on handset and also import to PC.
+Power-off memory function: data already saved in SD card won’t lose when lose power.
+Probe to probe Consistency, handset can connect different kinds sensor by concentratorwithout influence on accuracy.
+Auto detection: when sensor connects to handset, you can search different sensor.
+Synchronous detection: 32 channels to detect same time as you combine.
+RS485 wire communication, sensor communication cables could reach about 100 meters.
+Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
Software：
+Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
+Coloring the overrun area function which is visual display.
+Save the data in EXCEL format as a copy.
+Be able to view period of parameter or graph, and can be printed.
+All curvilinear coordinates can be set and move, which make analysis easier.
Handset technical parameters:
+Storage capacity: almost up to 30,000 groups in handset, and equipped with 4G Micro SD.
+Data-collection interval: 5min~99hour
+Working power supply: 8.4V lithium battery
+Working current: stand-by power consumption 10mA, working power consumption according to the configuration.
Sensor technical parameter
| Soil Temperature | Unit:°C Range: -40°C~100°C Accuracy:±0.5°C Resolution: 0.1°C |
| Soil moisture content | Unit: %(m³) Range: 0~100% Response time: ≤2s Relative error: ≤3% |
| Soil salinity | Range: 0~19.99ms/cm Sensors can be buried into soil. |
