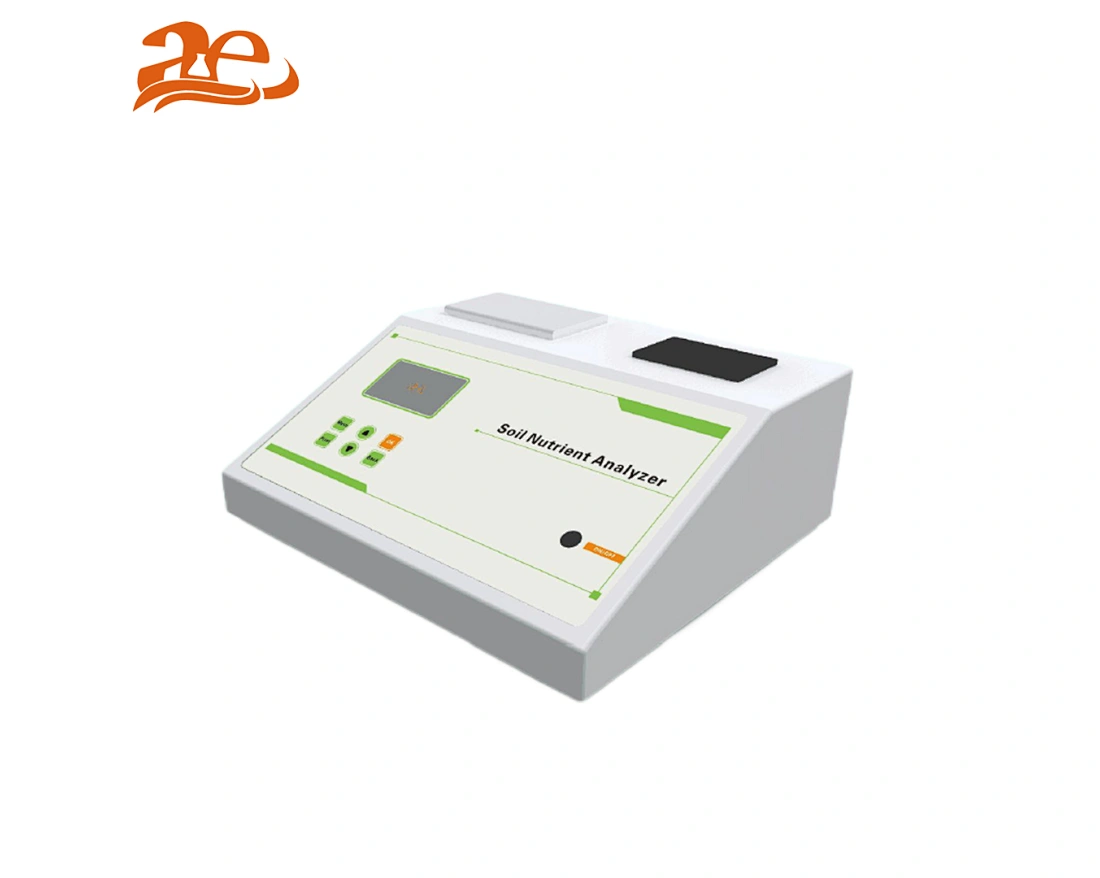

AELAB Soil Nutrient Tester TPY series
1. Quickly test the N, P, K, organic matter, salinity, and pH in soil
2. With the function of time display, can automatically record and save the time of tested sample.
3. Large capacity storage (time, place, fertilizers), datum can be checked at any time
4. Print testing date, sample number, sample items, sample contents, variety and so on
5. Big-screen LCD shows, and will guide you how to operate.
AELAB Soil Nutrient Tester TPY series
Quantity:
Soil Nutrient Tester TPY series
Characteristics
1. Quickly test the N, P, K, organic matter, salinity, and pH in soil
2. With the function of time display, can automatically record and save the time of tested sample.
3. Large capacity storage (time, place, fertilizers), datum can be checked at any time
4. Print testing date, sample number, sample items, sample contents, variety and so on
5. Big-screen LCD shows, and will guide you how to operate.
6. Can set crop variety, crop yield, fertilizer variety, and automatically count the fertilizing amount.
7.The reagent included: low requirement to the storage condition, last longer, and low test cost

Specification
1 Soil Nutrient technical parameter
1.1 Stability: Absorbency of light drift0.003
1.2 Repeatability: Absorbency of light0.005
1.3 Linearity errors: red light for Copper sulfate, and blue light forpotassium bichromate3.0%
1.4 Sensitivity: Red light≥4.5x10-5
Blue light≥3.17*10-3
1.5 Wavelength range: Red light 620±5nm; Blue light440±5nm
1.6 Anti-Knocking performance: qualified

2. pH technical parameter
Testing range: 1-14
Error: ±0.1

3. Salinity technical parameter
Testing range: 0.01% -1.00%
Error: ±5%

4. Soil moisture technical parameter (TPY-7PC)
Moisture unit: % (m³/m³)
Accuracy: ±2%
Moisture content rate testing range: 0-100%

5. Instrument technical parameter
Display mode: LCD display
Interface: USB
Working environment: 0~40℃ 35~85%RH
Alternating current (AC): 220V-240V, 50Hz, adapter: 12V/3A
Size: 32*28*11cm

Model
ModelFunction
TPY-IV1. Test N, P, K, Organic Matter;
2. with storage function;
3. built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs;
4. Without printing function
TPY-6A1. Test N,P,K, organic matter, soil pH, soil salinity;
2. with storage function;
3. built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs;
4. with printing function
TPY-6PCBased on TPY-6A, with a software, be able to connect to computer for data storage
TPY-7PCOn the basis of TPY-6PC, but add one more parameter: soil moisture.
