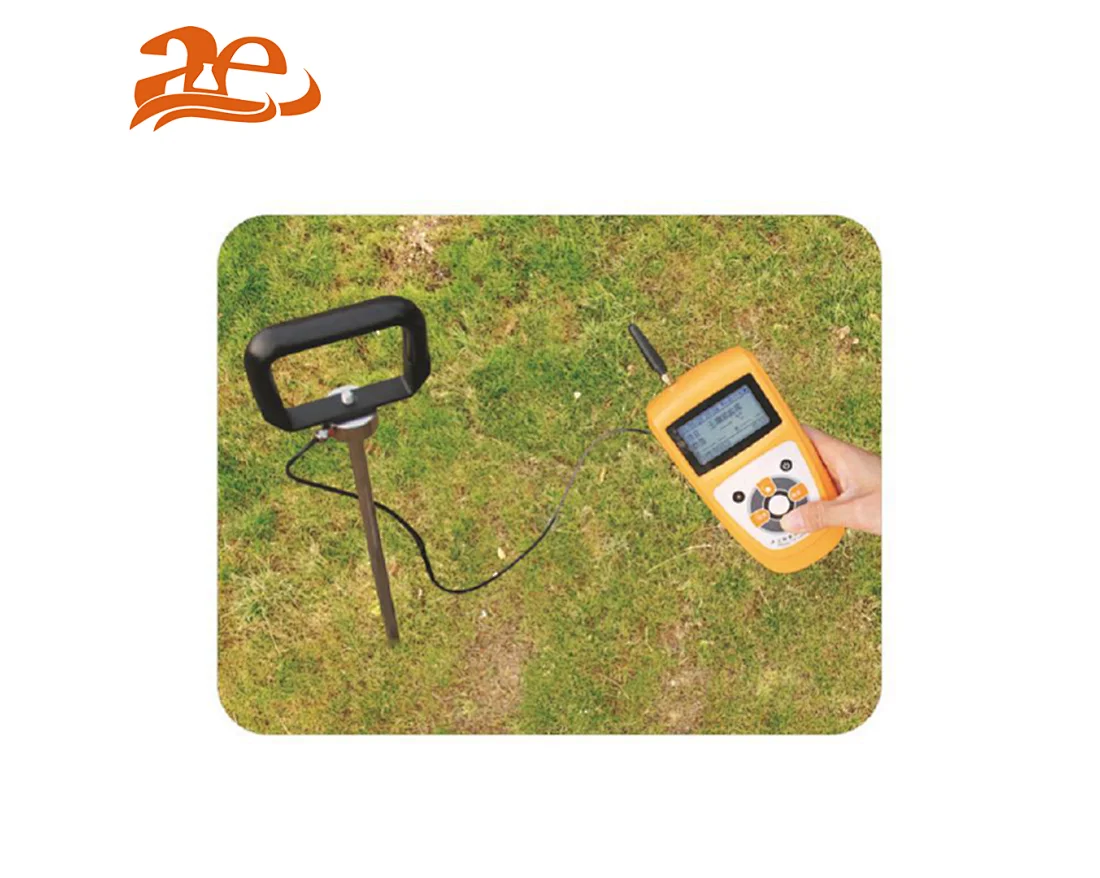

Soil Compaction Meter TJSD-750-II
Soil Compaction meters are used to determine the density of soil and other material.
TJSD-750-II
1
Quantity:
Soil Compaction Meter TJSD-750-II
Soil Compaction meters are used to determine the density of soil and other material.
Characteristic:
Handset:
+Small and exquisite, easy to carry and LCD display;
+Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
+Both AC and DC available, internal lithium battery: 8.4v 1500m Ah, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
+Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
+Data can be read on handset and also import to PC.
+Power-off memory function: data already saved in SD card won’t lose when lose power.
+Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
+Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
Software：
+Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
+Coloring the overrun area function which is visual display.
+Save the data in EXCEL format as a copy.
+Be able to view period of parameter or graph, and can be printed.
+All curvilinear coordinates can be set and move, which make analysis easier.
Handset parameters:
+Storage capacity: almost up to 30,000 groups in handset, and equipped with 4G Micro SD.
+Data-collection interval: 5min~99hour
+Working power supply: 8.4V lithium battery
+Working current: stand-by power consumption 10mA, working power consumption according to the configuration.
Handset:
+Small and exquisite, easy to carry and LCD display;
+Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
+Both AC and DC available, internal lithium battery: 8.4v 1500m Ah, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
+Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
+Data can be read on handset and also import to PC.
+Power-off memory function: data already saved in SD card won’t lose when lose power.
+Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
+Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
Software：
+Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
+Coloring the overrun area function which is visual display.
+Save the data in EXCEL format as a copy.
+Be able to view period of parameter or graph, and can be printed.
+All curvilinear coordinates can be set and move, which make analysis easier.
Handset parameters:
+Storage capacity: almost up to 30,000 groups in handset, and equipped with 4G Micro SD.
+Data-collection interval: 5min~99hour
+Working power supply: 8.4V lithium battery
+Working current: stand-by power consumption 10mA, working power consumption according to the configuration.
| Model | Function |
| TJSD-750-II | General type, display soil compaction(KPa, kg/c ㎡, N/c ㎡) directly, with data saving function |
| Range | 0~10,000KPa; 0~100kg/c ㎡; 0~1,000N/c ㎡(switchable) |
| Depth | 0~375mm(measuring rod is 400mm) |
| Accuracy | ±0.5‰ FS |
| Position accuracy | Three decimal ±0.05(≤50m) |
