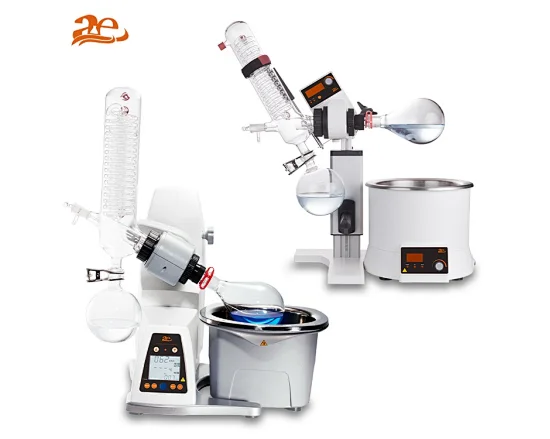

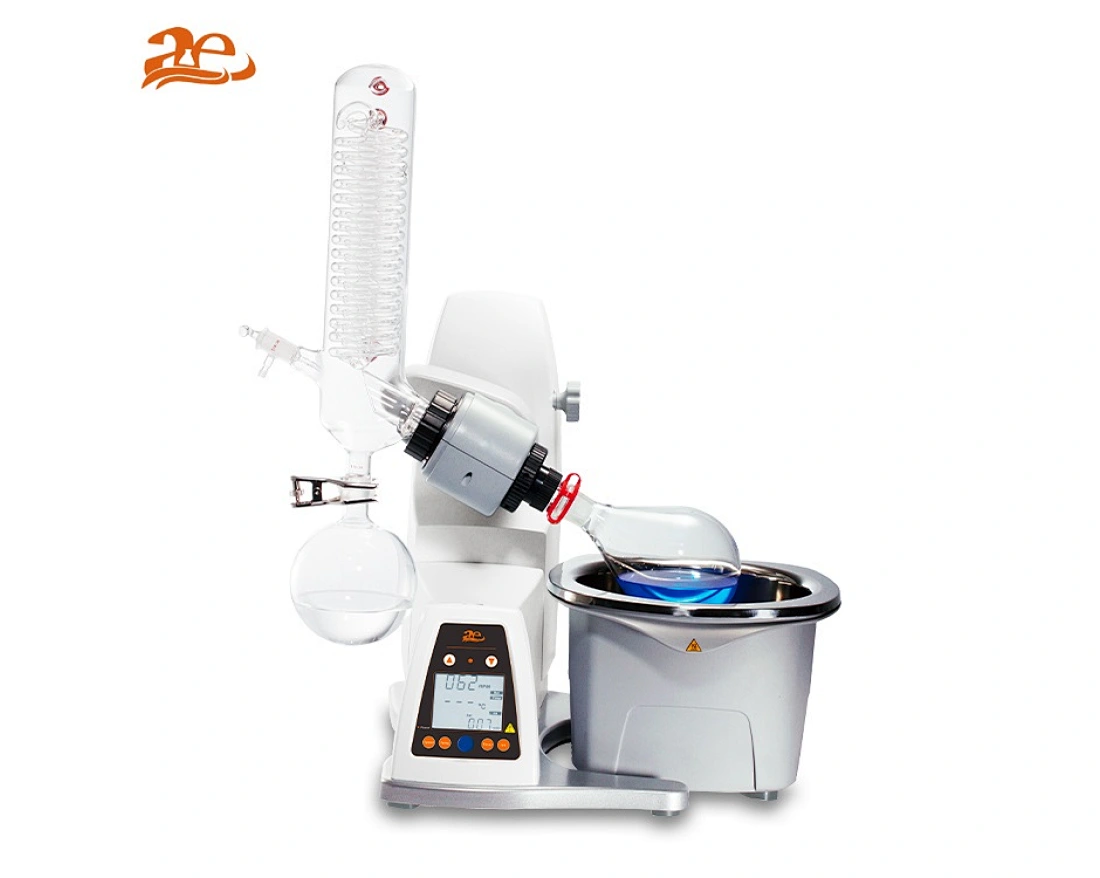

AELAB Rotary Vacuum Evaporator Horizontal AE-RE2-H
+ Large LCD digital display indicates rotation speed, heating temperature and time.
+ User friendly operation with automatic motor lift.
+ Automatically lift the evaporation flask out of the bath in case of accidental power failure.
+ 5L flask capacity heating bath with stainless steel interior, compatible with both water and oil bath.Water/oil heating mode can be changed only through a switch.
+ Safety circuits prevent overheating at 220°C and these can be used for high temperature evaporation.
+ Chemically resistant PTFE sealing ring designed to be vacuum tight.
+ USB interface for data documentation and control through PC.
+ Vertical condenser with large surface area of 1700 cm2 provides excellent cooling effect.
+ Wide variety of glassware suitable for various applications.
+ User friendly operation with automatic motor lift.
+ Automatically lift the evaporation flask out of the bath in case of accidental power failure.
+ 5L flask capacity heating bath with stainless steel interior, compatible with both water and oil bath.Water/oil heating mode can be changed only through a switch.
+ Safety circuits prevent overheating at 220°C and these can be used for high temperature evaporation.
+ Chemically resistant PTFE sealing ring designed to be vacuum tight.
+ USB interface for data documentation and control through PC.
+ Vertical condenser with large surface area of 1700 cm2 provides excellent cooling effect.
+ Wide variety of glassware suitable for various applications.
AE-RE2-H
1
Quantity:
AELAB Rotary Vacuum Evaporator Horizontal AE-RE2-H
Features:
+ Large LCD digital display indicates rotation speed, heating temperature and time.
+ User friendly operation with automatic motor lift.
+ Automatically lift the evaporation flask out of the bath in case of accidental power failure.
+ 5L flask capacity heating bath with stainless steel interior, compatible with both water and oil bath.Water/oil heating mode can be changed only through a switch.
+ Safety circuits prevent overheating at 220°C and these can be used for high temperature evaporation.
+ Chemically resistant PTFE sealing ring designed to be vacuum tight.
+ USB interface for data documentation and control through PC.
+ Vertical condenser with large surface area of 1700 cm2 provides excellent cooling effect.
+ Wide variety of glassware suitable for various applications.
Technical Specifications:
Features:
+ Large LCD digital display indicates rotation speed, heating temperature and time.
+ User friendly operation with automatic motor lift.
+ Automatically lift the evaporation flask out of the bath in case of accidental power failure.
+ 5L flask capacity heating bath with stainless steel interior, compatible with both water and oil bath.Water/oil heating mode can be changed only through a switch.
+ Safety circuits prevent overheating at 220°C and these can be used for high temperature evaporation.
+ Chemically resistant PTFE sealing ring designed to be vacuum tight.
+ USB interface for data documentation and control through PC.
+ Vertical condenser with large surface area of 1700 cm2 provides excellent cooling effect.
+ Wide variety of glassware suitable for various applications.
Technical Specifications:
| Specifications | AE-RE2 | AE-RE2-H | AE-RE2S |
| Type | Vertical | Horizontal | Vertical |
| Motor Type | Brushless DC motor | ||
| Speed Range | 20-280rpm | 20-200rpm | |
| Display | LCD (speed,temperature,time) | LED (speed, temperature, time) | |
| Clockwise and Anti-clockwise | Yes | Yes | |
| Heating Temperature Range | Room temp. to 180℃ | Room temp. to 180℃ | |
| Control Accuracy | water: ±1℃,oil: ±3℃ | water: ±1℃ oil: ±3℃ | |
| Heating Power | 1300W | 1200 W | |
| Stroke Displacement | automatic 150mm | Manual 110mm + auxiliary100mm | |
| Timer | Yes | Yes | |
| Time Setting Range | 1-999min | 1~999s | |
| Dimension[D×W×H] | 465×457×583mm | Main Unit: 440×320×450mm Heating Bath: 300x300x240mm | |
| Weight | 15kg | Main Unit: 7kg Heating Bath: 3kg | |
| Permissible Ambient Temperature | 5-40℃ | 5~40 ℃ | |
| Permissible Relative Humidity | 80%RH | 80%RH | |
| Protection Class | IP20 | IP20 | |
| USB Interface | Yes | ||
| Voltage/Frequency | 100-120/200-240V 50/60Hz | ||
| Power | 1400W | ||
