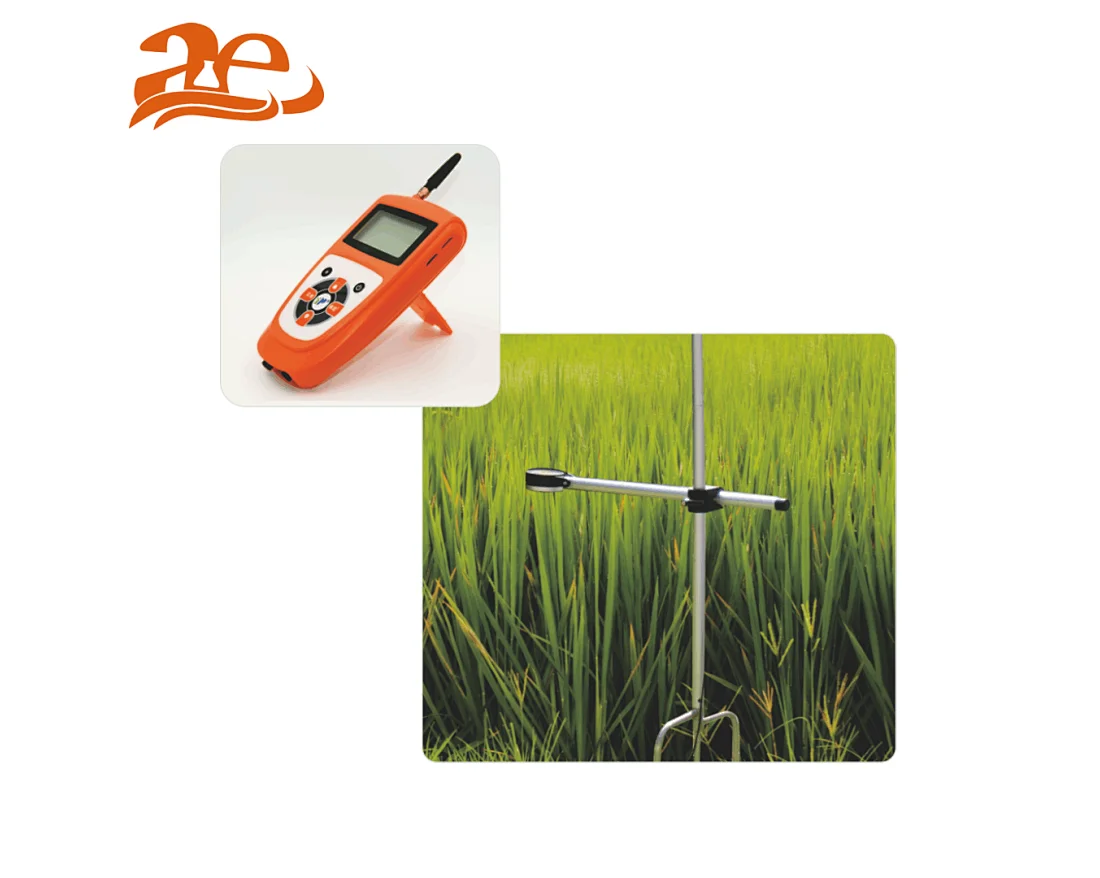

AELAB Plant Canopy analyzer TOP-1200
TOP-1200 Plant Canopy Analyzer is widely applied for farming production and agricultural research,canopy energy resource investigation, measure the light interception among plant canopy, and research the relation between plant growth & development, production quality and light utilization.
TOP-1200
1
Quantity:
Plant Canopy analyzer TOP-1200
Features:
TOP-1200 Plant Canopy Analyzer is widely applied for farming production and agricultural research,canopy energy resource investigation, measure the light interception among plant canopy, and research the relation between plant growth & development, production quality and light utilization.
Characteristic:
+High waterproof grade: all aluminum alloy, waterproof grade IP67.
+Using visible/near-infrared light reflection spectrum technology and multi-channel spectral information scanning technology. The vegetation surface parameters, plant canopy information, plant nutrient information, soil nutrient information, environmental parameters,plant pests and diseases can be quickly determined.
+Many software analysis functions: it can analyze the vegetation index RVI,NDVI,nitrogen content in the crop leaf layer, nitrogen accumulation, LAI, leaf dry weight, etc.
Host function:
+With GPS positioning.
+With voice broadcast
Technical Parameter:
Working environment: 0~ 60 ℃, 0 ~ 100% RH (no condensation of water vapor)
Storage environment:-10 ~ 80℃, 0 ~ 40% RH
Power supply: 8 ~ 12VDC
Light Source: LED
NDVI Range：-1~1
LAI Range：＞0
Center Wavelength: 680nm, 800nm
Spectral bandwidth: <8nm FWHM
View angle: 30 °
Acquisition area: 0.23 ~ 0.38 ㎡
Channel: 2
