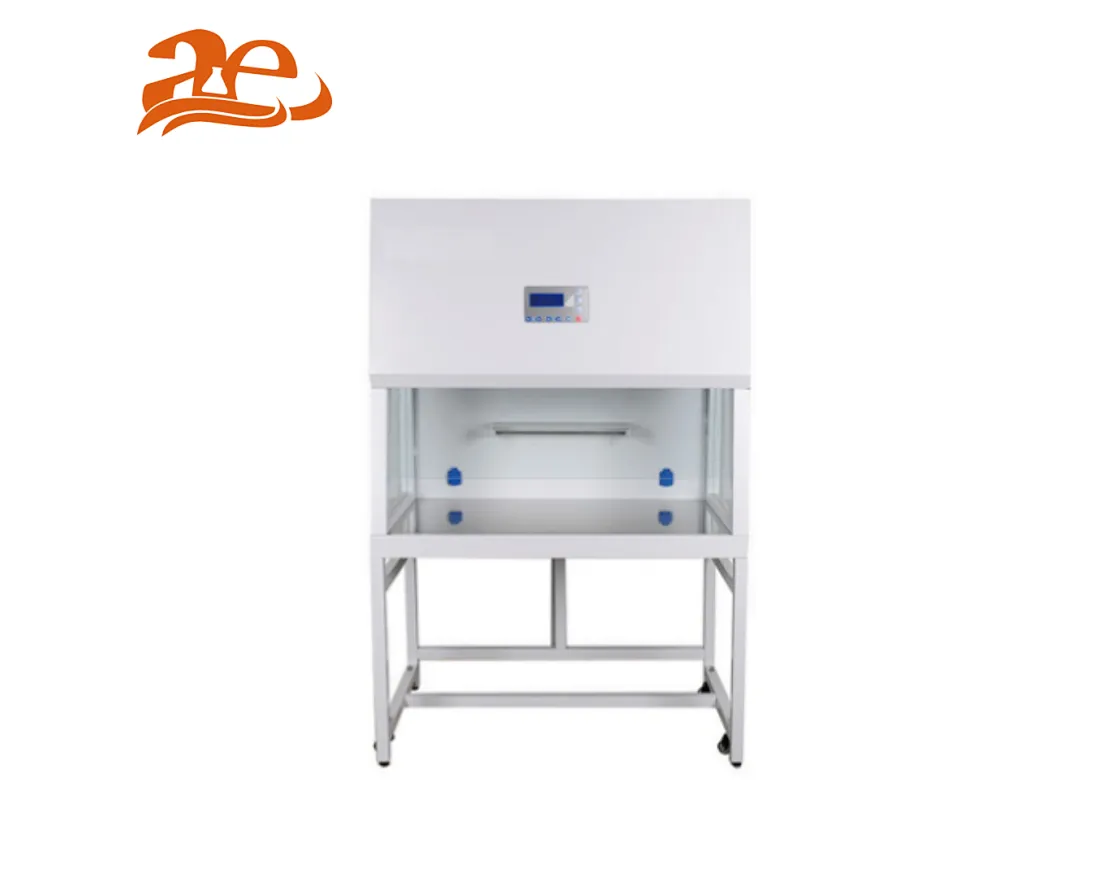

AELAB PCR Cabinet
+LED display (LED display for AE-PCR1000).
+UV sterilization system.
+HEPA filter efficiency 99.999% at 0.3μm.
+Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
+UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.
+UV sterilization system.
+HEPA filter efficiency 99.999% at 0.3μm.
+Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
+UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.
AE-PCR800 AE-PCR1000 AE-PCR1200 AE-PCR1300 AE-PCR1500
1
Quantity:
PCR Cabinet
Features:
+LED display (LED display for AE-PCR1000).
+UV sterilization system.
+HEPA filter efficiency 99.999% at 0.3μm.
+Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
+UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.
Technical Specifications:
#pcr
#pcr tyre pcr tyre
#equipment pcr
Features:
+LED display (LED display for AE-PCR1000).
+UV sterilization system.
+HEPA filter efficiency 99.999% at 0.3μm.
+Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
+UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.
Technical Specifications:
| Model | AE-PCR800 | AE-PCR1000 | AE-PCR1200 | AE-PCR1300 | AE-PCR1500 |
| External Size (W*D*H) | 800*700 | 1000*705 | 1200*700 | 1300*700 | 1500*700 |
| *1770mm | *1770mm | *1770mm | *1770mm | *1770mm | |
| Internal Size (W*D*H) | 700*595 | 900*595 | 1100*595 | 1200*595 | 1400*595 |
| *550mm | *560mm | *550mm | *550mm | *550mm | |
| Work Surface Height | 750mm | ||||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
| Work Table: 304 stainless steel | |||||
| Front & Side Windows | 5mm toughened glass , anti-UV | ||||
| Motorized | Manual | Motorized | Motorized | Motorized | |
| Max Opening | 300mm | 320mm | 300mm | 300mm | 300mm |
| Pre-Filter | Polyester fiber, Washable | ||||
| HEPA Filter | 99.999% efficiency at 0.3μm. | ||||
| Airflow Velocity | 0.3-0.5m/s, speed adjustable | ||||
| Noise | ≤65dB | ||||
| UV Lamp | 20W*1 | 20W*2 | 30W*1 | 30W*1 | 40W*1 |
| Emission of 253.7 nanometers, with UV timer | |||||
| Illumination Lamp | LED 8W*2 | 40W*1 | LED 12W*2 | ||
| Illumination | ≥1000Lux | ||||
| Shelf with IV bar | Stainless steel, 502*150*50mm (W*D*H) | ||||
| caster | Universal caster with leveling feet | ||||
| Consumption | 400W | 300W | 600W | 600W | 600W |
| Waterproof Socket | Two, total load≤500W | ||||
| Power Supply | AC 220V±10%, 50/60Hz;110V±10%,60Hz | ||||
| Standard Accessory | UV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar | ||||
| Gross Weight | 168kg | 178kg | 220kg | 231kg | 250kg |
| Package Size (W*D*H) | 960*940 *1450mm | 1150*930 *1450mm | 1350*930 *1450mm | 1450*930 *1450mm | 1650*930 *1450mm |
