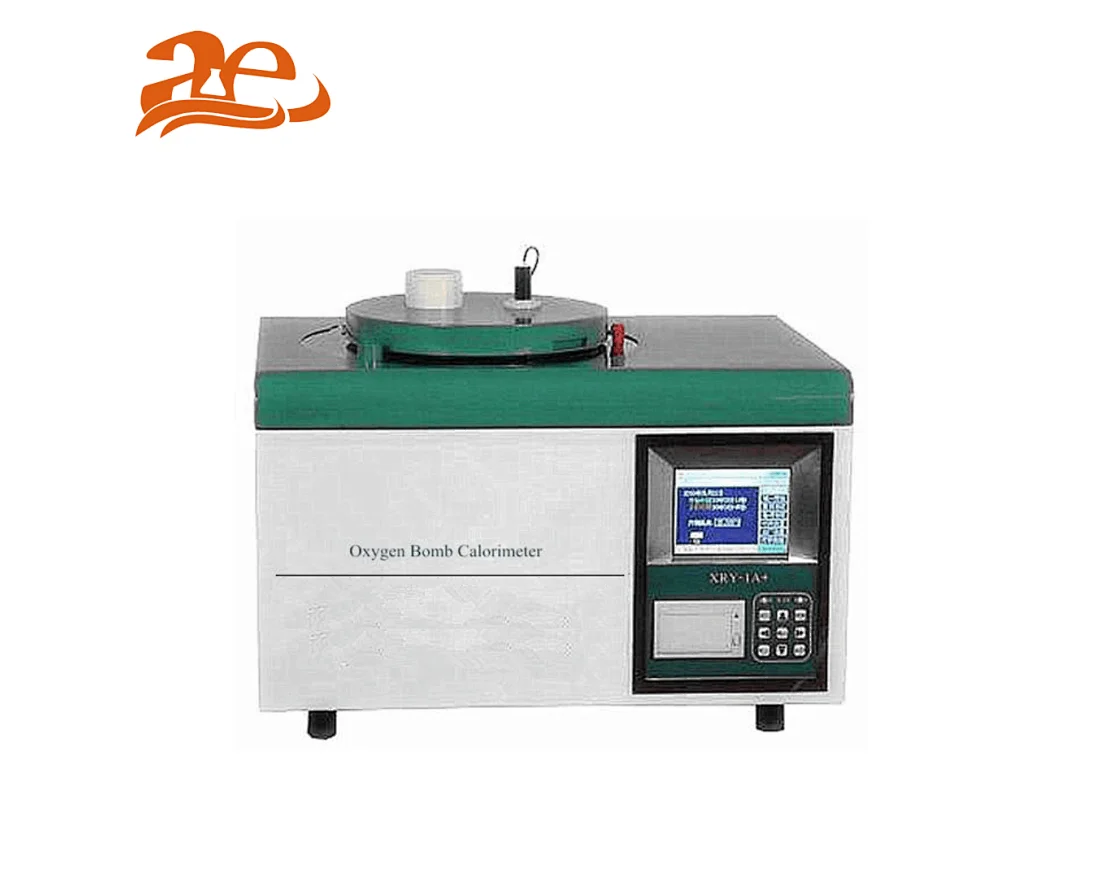

AELAB Oxygen Bomb Calorimeter XRY-1A+
The instrument is designed and made as per the National Standard of People’s Republic of China GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People’s Republic of China JJG672-2001 Oxygen Bomb Calorimeter, as well as Company Standard of Shanghai Q/YXYY 10 XRY Series Oxygen Bomb Calorimeter.
XRY-1A+
Quantity:
XRY-1A+ Oxygen Bomb Calorimeter
Summary
The instrument is designed and made as per the National Standard of People’s Republic of China GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People’s Republic of China JJG672-2001 Oxygen Bomb Calorimeter, as well as Company Standard of Shanghai Q/YXYY 10 XRY Series Oxygen Bomb Calorimeter.
I. Main technical features
1.The instrument adopts technology of single chip machine, LCD screen, high accuracy temperature sensor and high performance A/D conversion device. It is a highly intelligent instrument.
2.The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.
3.This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.
II. Main technical specifications
1.Heat capacity: 14000 J/K～15000 J/K
2.Measuring range: (10～35)℃
3. Resolution: 0.001 K
4.Measurement accuracy: ± 60J/g
5.Repeatability error: ≤0.2% (Grade C)
6.Pressure endurance of bomb: 20 MPa
7.Temperature measurement range: 10 ℃～28 ℃
8.Relative humidity: ≤85%
9.Power supply: AC 220V±5%, 50 Hz
10. Overall dimension: 600mm×480mm×460mm
(Note: Pellet press machine is optional)
11.Packing List
#oxygen bomb calorimeter
#ika bomb calorimeter
#automatic bomb calorimeter
Summary
The instrument is designed and made as per the National Standard of People’s Republic of China GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People’s Republic of China JJG672-2001 Oxygen Bomb Calorimeter, as well as Company Standard of Shanghai Q/YXYY 10 XRY Series Oxygen Bomb Calorimeter.
I. Main technical features
1.The instrument adopts technology of single chip machine, LCD screen, high accuracy temperature sensor and high performance A/D conversion device. It is a highly intelligent instrument.
2.The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.
3.This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.
II. Main technical specifications
1.Heat capacity: 14000 J/K～15000 J/K
2.Measuring range: (10～35)℃
3. Resolution: 0.001 K
4.Measurement accuracy: ± 60J/g
5.Repeatability error: ≤0.2% (Grade C)
6.Pressure endurance of bomb: 20 MPa
7.Temperature measurement range: 10 ℃～28 ℃
8.Relative humidity: ≤85%
9.Power supply: AC 220V±5%, 50 Hz
10. Overall dimension: 600mm×480mm×460mm
(Note: Pellet press machine is optional)
11.Packing List
| No. | Name | Unit | Quantity |
| 1 | XYR-1A+ Main unit (including single chip,oxygen bomb, water jacket, water bucket, stirrer) | set | 1 |
| 2 | Oxygen bomb head holder | set | 1 |
| 3 | Oxygen bomb seat | set | 1 |
| 4 | Temperature sensor | piece | 1 |
| 5 | Thermometer（0-50℃） | piece | 1 |
| 6 | Stopper for thermometer (silica gel stopper 2 #) | piece | 1 |
| 7 | Ignition wire (Ф0.1 Nickel-Chromium wire) | meter | 10 |
| 8 | Crucible | piece | 2 |
| 9 | Discharging valve | piece | 1 |
| 10 | Oxygendecompression device | piece | 1 |
| 11 | Oxygen pipe | pair | 1 |
| 12 | O type seal ring（φ20×2.4mm） | piece | 5 |
| 13 | O type seal ring（φ8×1.9mm） | piece | 5 |
| 14 | O type seal ring（φ6×1.9mm） | piece | 5 |
| 15 | Airproof ring (largest O type) | piece | 2 |
| 16 | Benzoic acid | piece | 10 |
| 17 | Water aspirator | piece | 1 |
| 18 | Printing paper | roll | 1 |
| 19 | Stopping ring for thermometer (1#) | piece | 4 |
| 20 | Fuse 2A (Φ5×20) | piece | 2 |
| 21 | Siliconstopper (7#) | piece | 1 |
