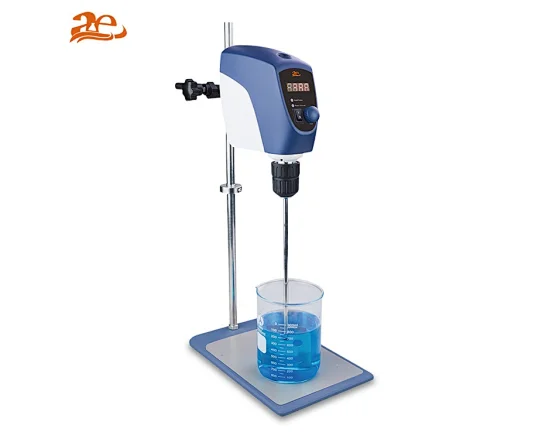

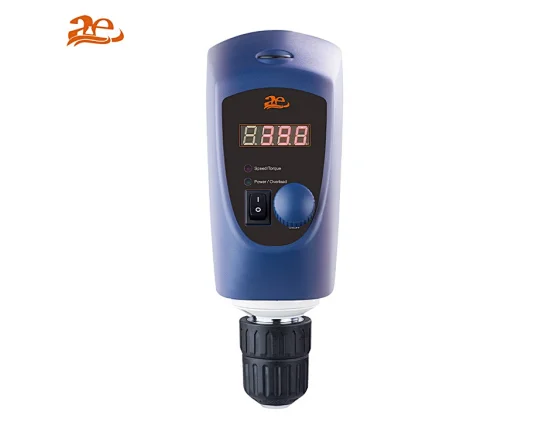

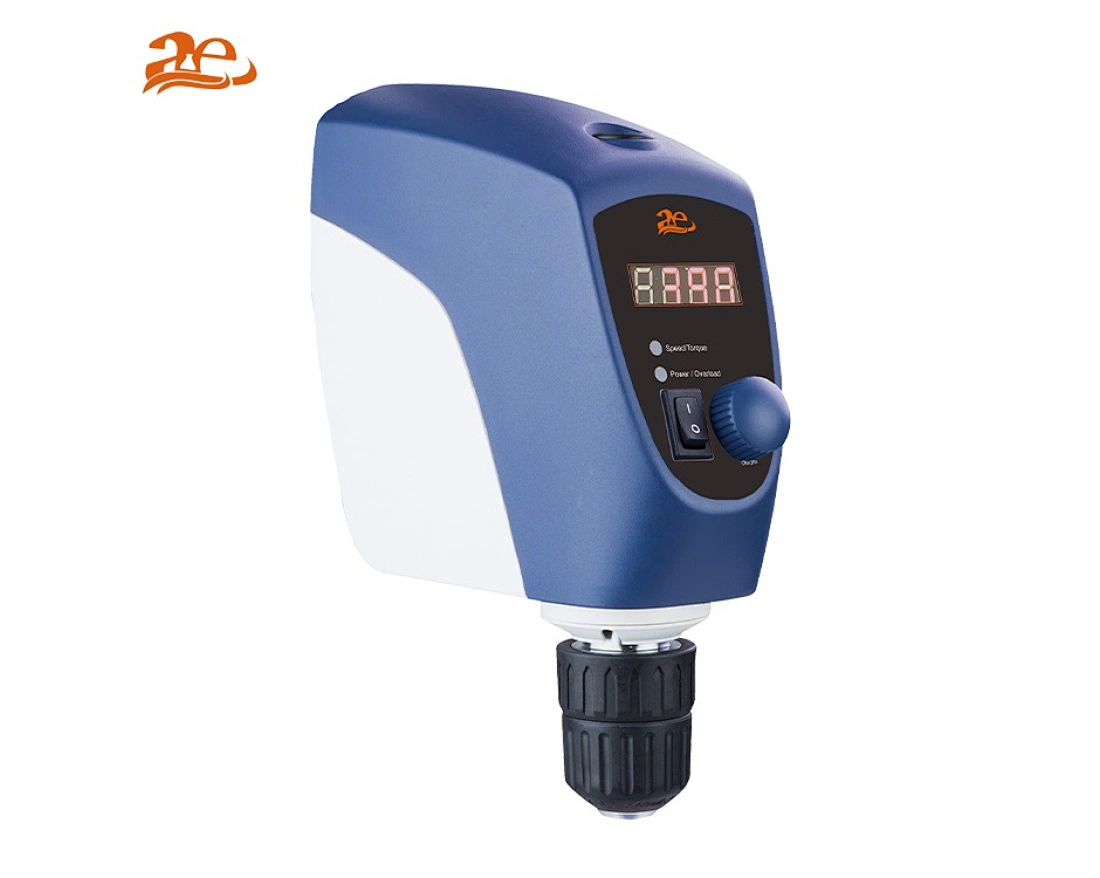

AELAB Overhead Stirrers ASHO-704 (LED-40L)

Model NO.
ASHO-704
+ Easy and user friendly operation with LCD/LED digital display of set and actual speeds.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.
+ A wide range of shaft accessories for different kinds of applications.
Quantity:
AELAB Overhead Stirrers ASHO-704  (LED-40L)
Our Overhead Stirrers are designed for high volume and high viscosity sample stirring applications. These are used in polymer processing, organic and inorganic solvent mixing, chemical synthesis and many more pharmaceutical applications.

Features:

+ Easy and user friendly operation with LCD/LED digital display of set and actual speeds.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.
+ A wide range of shaft accessories for different kinds of applications.


Technical Specifications:

 SpecificationsASHO-701ASHO-702ASHO-703ASHO-704
Max. stirring quantity[H2O]20L40L20L40L
Power70W130W70W130W
Motor typeBrush less DC motor
Motor input power60W120W60W120W
Motor output power50W100W50W100W
Speed range50-2200rpm
Speed display accuracy±3rpm
Speed displayLCDLED
Torque displayLCDLED
Voltage100-240V, 50/60 Hz
Overload protection displayLCDLED
Max. torque40Ncm60Ncm40Ncm60Ncm
Viscosity max.10000mPas50000mPas10000mPas50000mPas
Chuck range diameter0.5-10mm
Dimension[W×D×H]83x220x186mm
Weight2.8kg
Protection classIP21
Permissible ambient
temperature and humidity
5-40°C 80%RH
Data connectorRS232--- --- ---
