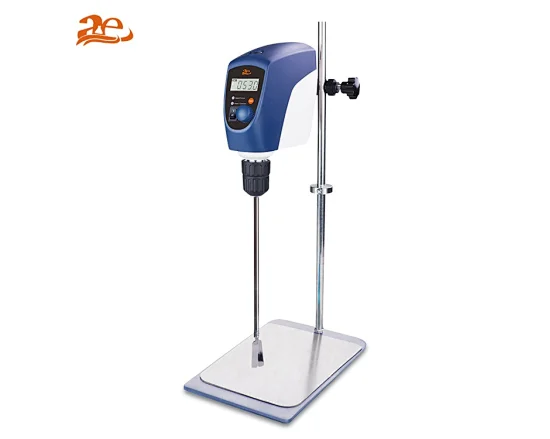

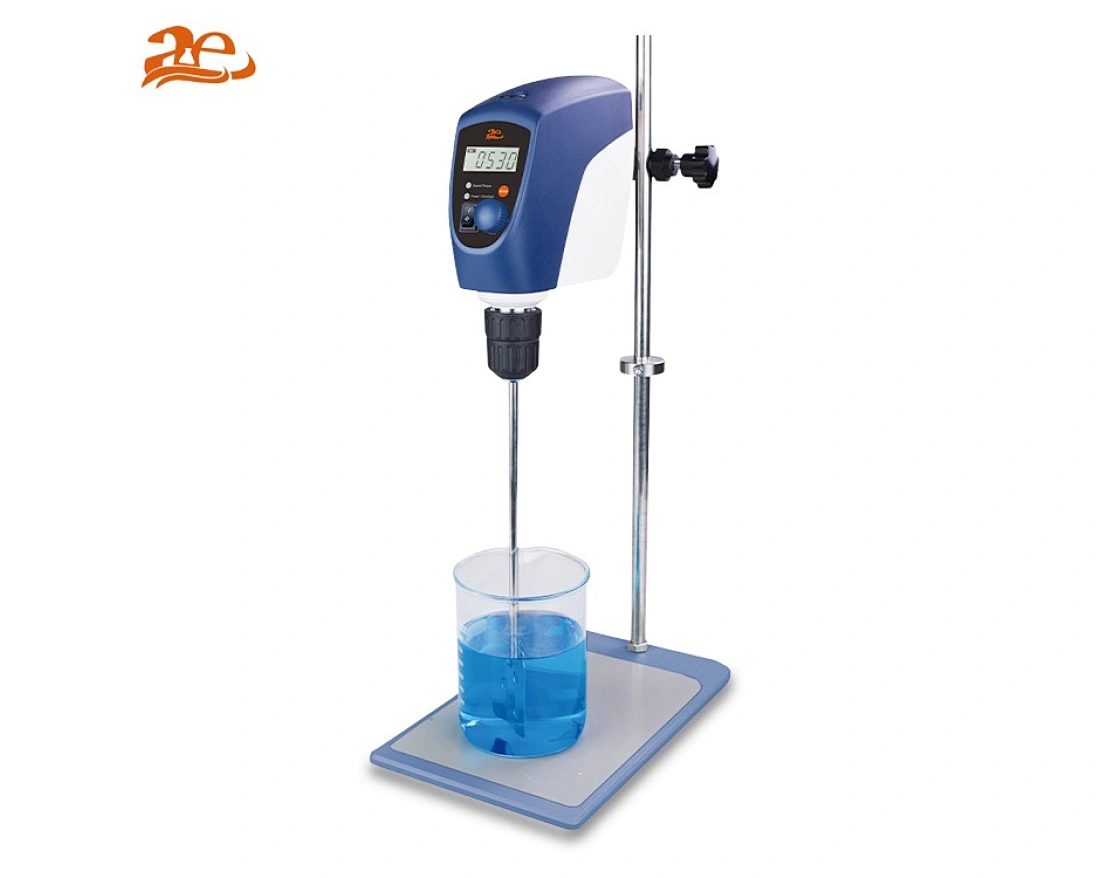

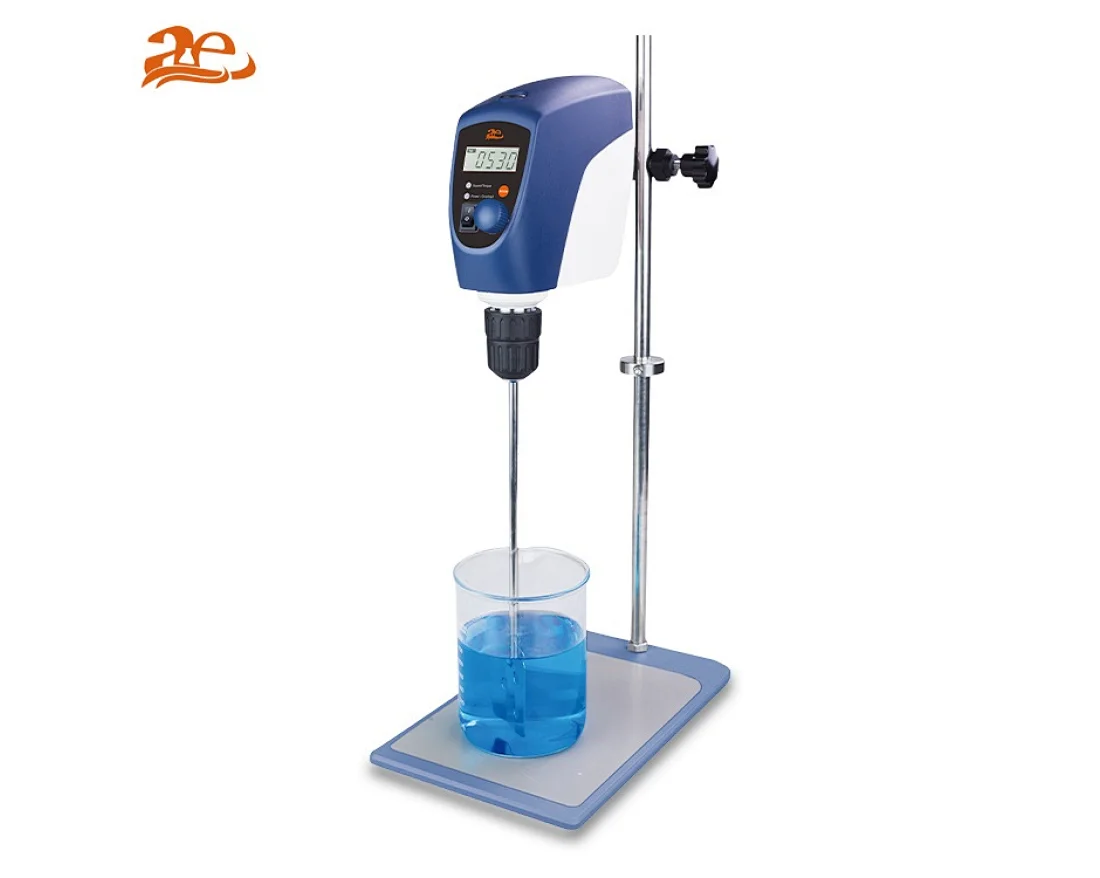

AELAB Overhead Stirrers ASHO-701 (LCD-20L）
+ Easy and user friendly operation with LCD/LED digital display of set and actual speeds.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.

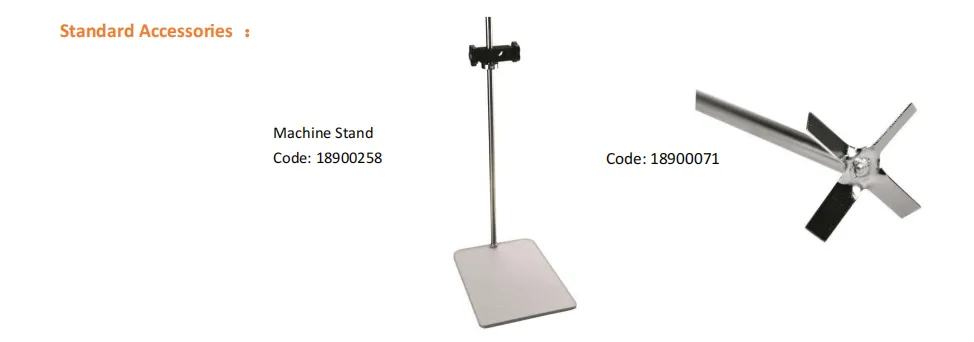

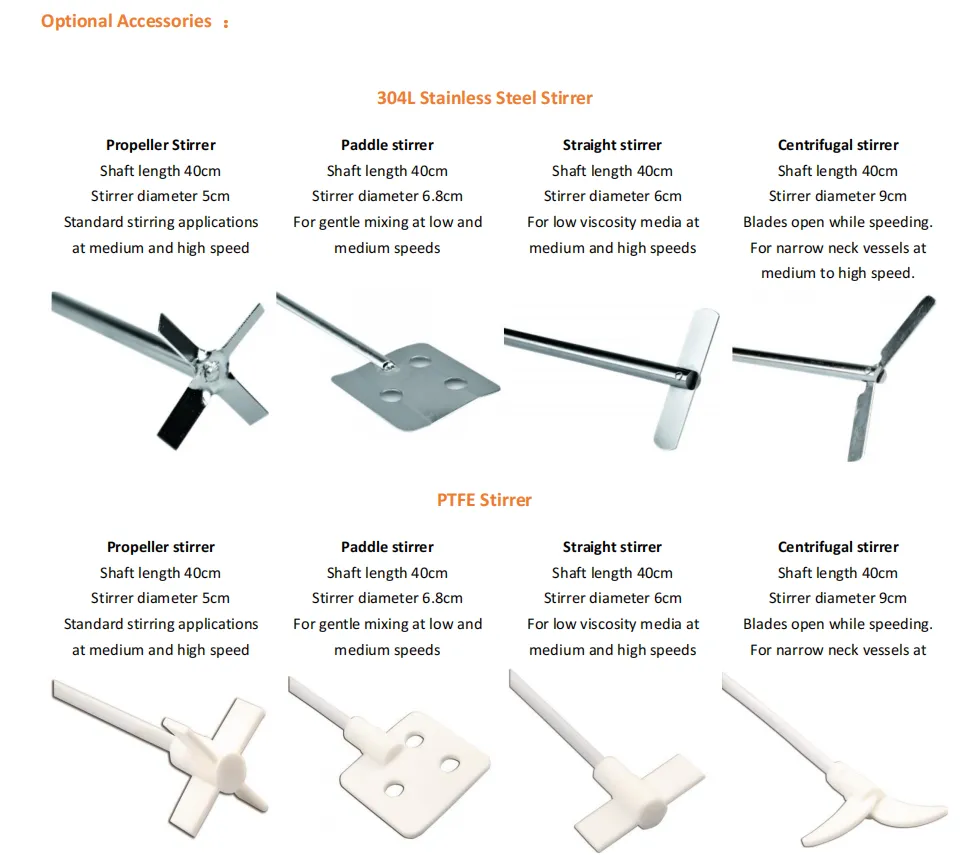

+ A wide range of shaft accessories for different kinds of applications.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.
+ A wide range of shaft accessories for different kinds of applications.
ASHO-701
1
Quantity:
AELAB Overhead Stirrers ASHO-701 (LCD-20L）
Our Overhead Stirrers are designed for high volume and high viscosity sample stirring applications. These are used in polymer processing, organic and inorganic solvent mixing, chemical synthesis and many more pharmaceutical applications.
Features:

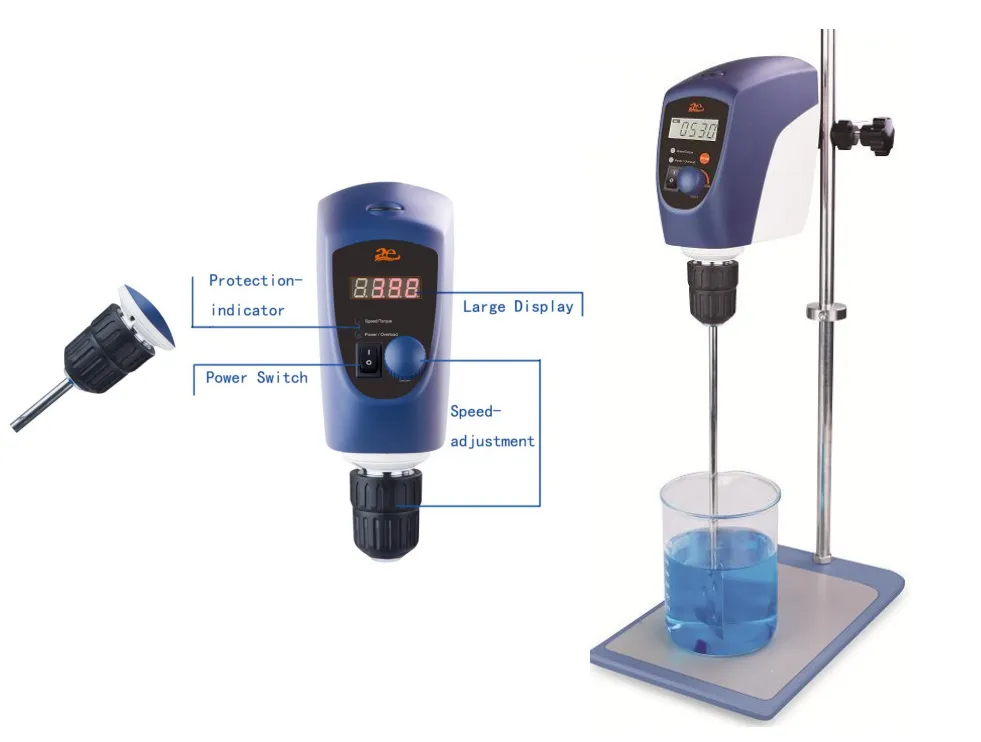

+ Easy and user friendly operation with LCD/LED digital display of set and actual speeds.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.
+ A wide range of shaft accessories for different kinds of applications.
Technical Specifications:
Our Overhead Stirrers are designed for high volume and high viscosity sample stirring applications. These are used in polymer processing, organic and inorganic solvent mixing, chemical synthesis and many more pharmaceutical applications.
Features:
+ Easy and user friendly operation with LCD/LED digital display of set and actual speeds.
+ Speed adjustable within 50-2200rpm with precise speed control.
+ High performance BLDC motor with overload protection.
+ Speed maintains as the viscosity changes.
+ RS232 interface to control and data document(ASHO-701,702).
+ Microprocessor controlled safety circuits prevent splashing.
+ Powerful torque suitable for stirring of highly viscous liquids.
+ Protection class of IP21 , IP42.
+ A wide range of shaft accessories for different kinds of applications.
Technical Specifications:
| Specifications | ASHO-701 | ASHO-702 | ASHO-703 | ASHO-704 | |
| Max. stirring quantity[H2O] | 20L | 40L | 20L | 40L | |
| Power | 70W | 130W | 70W | 130W | |
| Motor type | Brush less DC motor | ||||
| Motor input power | 60W | 120W | 60W | 120W | |
| Motor output power | 50W | 100W | 50W | 100W | |
| Speed range | 50-2200rpm | ||||
| Speed display accuracy | ±3rpm | ||||
| Speed display | LCD | LED | |||
| Torque display | LCD | LED | |||
| Voltage | 100-240V, 50/60 Hz | ||||
| Overload protection display | LCD | LED | |||
| Max. torque | 40Ncm | 60Ncm | 40Ncm | 60Ncm | |
| Viscosity max. | 10000mPas | 50000mPas | 10000mPas | 50000mPas | |
| Chuck range diameter | 0.5-10mm | ||||
| Dimension[W×D×H] | 83x220x186mm | ||||
| Weight | 2.8kg | ||||
| Protection class | IP21 | ||||
| Permissible ambient temperature and humidity | 5-40°C 80%RH | ||||
| Data connector | RS232 | --- --- --- | |||
