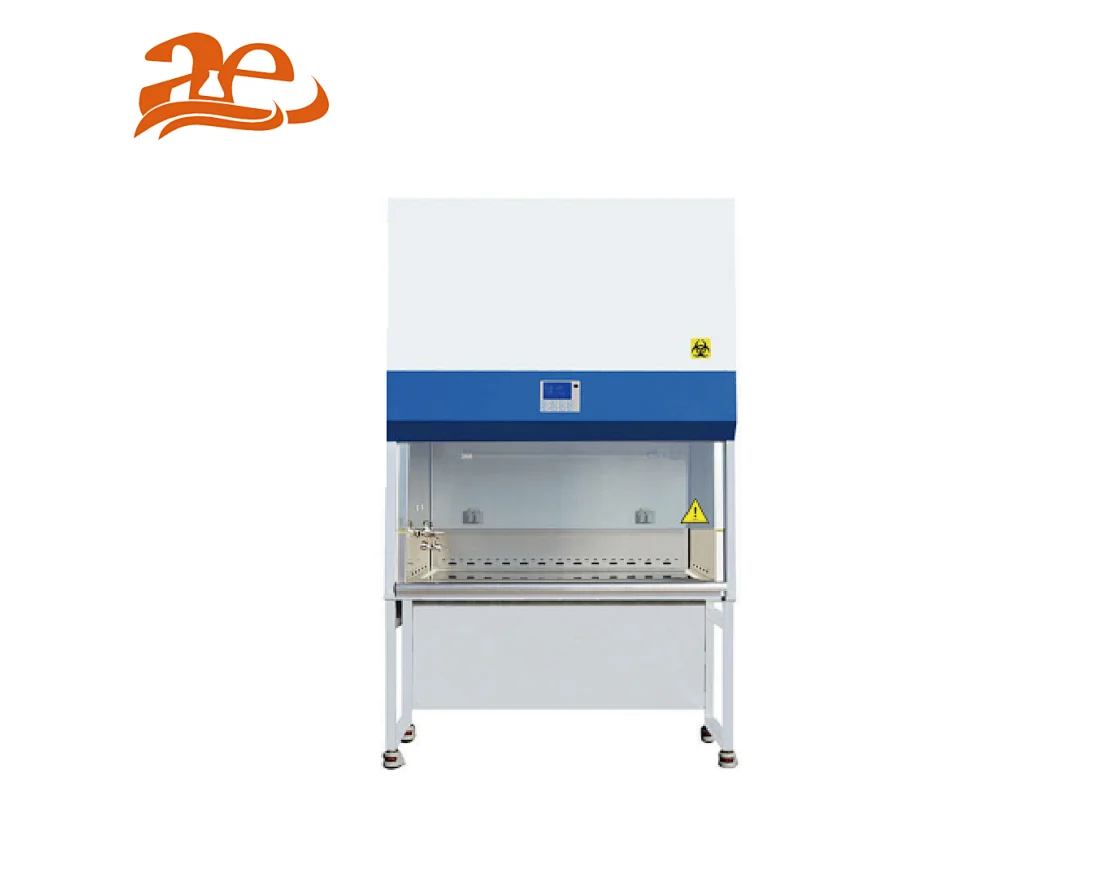

AELAB NSF Certified Class IIA2 Biological Safety Cabine
+Motorized front window.
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
AE-BSC-4FA2 Series
1
Quantity:
NSF Certified Class IIA2 Biological Safety Cabine
Features:
+Motorized front window.
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
+Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
+Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area
Technical Specifications:
#nsf certified
#biological safety cabinet class
#nsf certified supplements
#nsf certified equipment
#nsf certified refrigerator
Features:
+Motorized front window.
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
+Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
+Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area
Technical Specifications:
| Model | AE-BSC-4FA2(4") | AE-BSC-4FA2-GL(4") | AE-BSC-6FA2-GL(6') | AE-BSC-4FA2-NA(4") | AE-BSC-6FA2-NA(6") | |
| External Size(W*D*H) | 1383.775・2295mm | 1873*775*2295mm | 1383*775*2295mm | 1873*775*2295mm | ||
| Internal Size(W*D*H) | 1210*600*660 mm | 1700*600*660 mm | 1210*600-660 mm | 1700*600*660 mm | ||
| Work Surface Height | 750mm | |||||
| Max Opening | 550mm (22") | |||||
| Tested Opening | Safety height 200mm (8") | Safety height 254mm (10") | ||||
| Airflow Volume | Inflow Downflow Exhaust | 462m3/h (272cfm) | 587m3/h (346cfm) | 824m3/h (485cfm) | 587m3/h (346cfm) | 824m3/h (485cfm) |
| 60%: 863m3/h (507cfm) | 60%:863m3/h (508cfm) | 60%:1212m3/h (713cfm) | 60%:863m3/h (508cfm) | 60%:1212m3/h (713cfm) | ||
| 40%: 462m3/h (272cfm) | 40%:587m3/h (346cfm) | 40%:824m3/h (485cfm) | 40%:587m3/h (346cfm) | 40%:824m3/h (485cfm) | ||
| Front Window | Motorized. Two-layer laminated toughened glass 25mm. Anti UV. | |||||
| HEPA Filter | Two, 99.999% efficiency at 0.3um, filter life indicator | |||||
| Filter Guard Type | Aluminum alloy frame | |||||
| Noise | NSF 49^61 dB / EN 12469S58dB | |||||
| Illumination | ≥1000LUX | |||||
| Display | LCD Display | |||||
| Waterproof Socket | Two, Total consumption: ≤500W | |||||
| Tap | Water tap*1, Gas tap *1 | |||||
| Ground Resistance | ≤0.10Q | |||||
| Power Supply | AC220V±10%, 50/60HZ；110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | |||||
| Consumption | 400W | 500W | 400W | 500W | ||
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height | |||||
| DC Motor | One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption | |||||
| Material | Working area: 304stainless steel | |||||
| Frame and De(x)rative Plate: cold-rolled steel with anti-bacteria power coating. | ||||||
| UV Lamp | 30W | 40W | 30W | 40W | ||
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | ||||||
| Illuminating Lamp | 18W*2 | 22W*2 | 18W*2 | 22W*2 | ||
| LED lamp | ||||||
| Standard Accessory | Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, | |||||
| Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks | ||||||
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer.lnfrared sterilizer, | |||||
| Electric height adjustable base stand, Remote control | ||||||
| Package Size(W-D*H) | 1540*1080*1900mm | 2020*1080*1900mm | 1540*1080*1900mm | 2020*1080*1900mm | ||
| Gross Weight | 334kg | 340kg | 370kg | 340kg | 370kg | |
