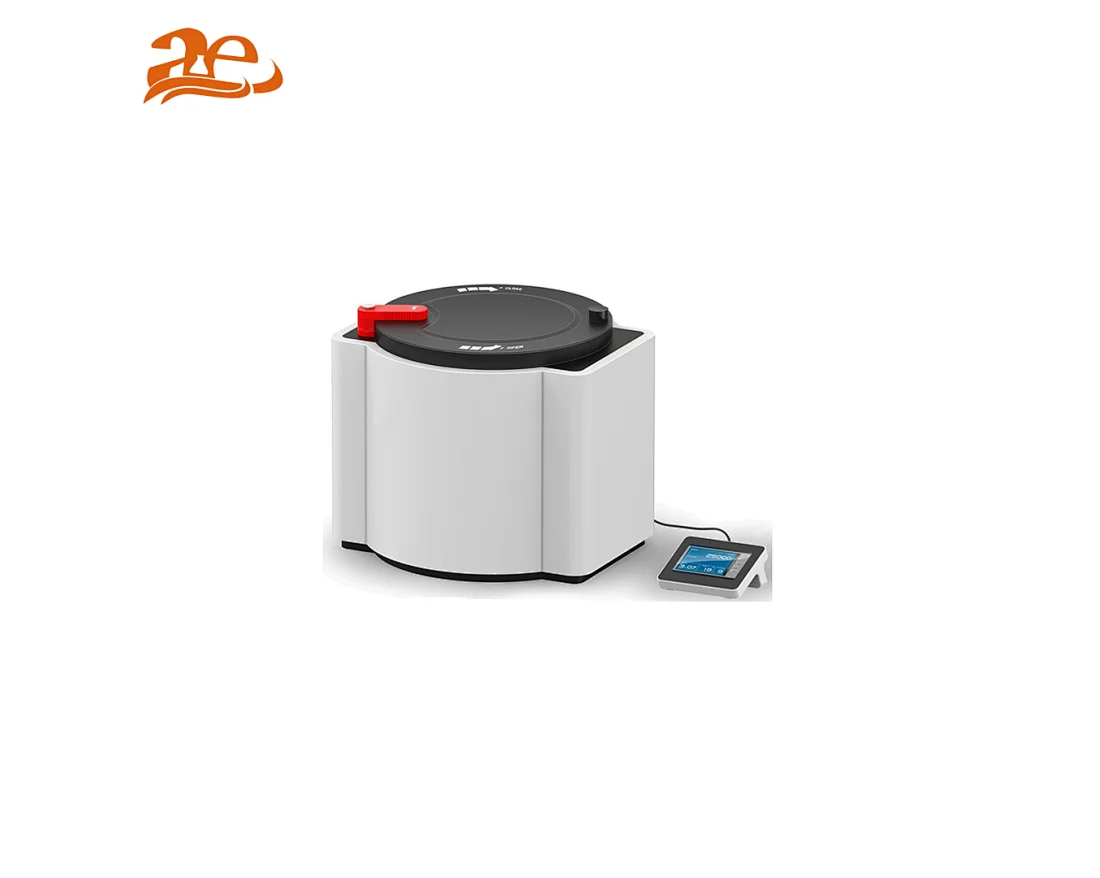

AELAB Microwave Digestion System AE-MD700/650-AE-MD850/800
Vent and Self-reseal digestion vessel: self-vent and reseal structure with patented law ensures that vessels will release pressure and instantly reseal when a sudden over-pressurization occurs. This prevents waste of batch samples and solutions, and also avoids sample vessel damage.
AE-MD700/650 - AE-MD850/800
1
Quantity:
AELABMicrowave Digestion System AE-MD700/650 -AE-MD850/800
Features:
+Multi safety protection functions: high strength double security door, temperature monitoring, high temperature prevention, pressure monitoring, high pressure prevention, instruments fault monitoring alert, innovative stopping running when opening door, instruments abnormal sound monitoring.
+Power and power regulation mode: using variable frequency resonance or non-pulse (optional) continuous rotating mode to ensure highly efficient and even microwave throughput. Users can adjust it according to users' requirement between 0-3000W.
Quality components :
Technical Specification :
#microwave digestion system
#microwave system
Features:
+Vent and Self-reseal digestion vessel: self-vent and reseal structure with patented law ensures that vessels will release pressure and instantly reseal when a sudden over-pressurization occurs. This prevents waste of batch samples and solutions, and also avoids sample vessel damage.
+Temperature-pressure monitoring/protection system: Advanced contactless temperature control technology which measures real temperature of solution in each digestion vessel. Meanwhile, it adopts multi-fiber to monitor pressure in a contactless way. This realizes isolation between temperature and pressure control system, avoids cross-contamination of all samples and also ensures temperature and pressure monitor and control for each and every vessel. All temperature and pressure data are displayed in real time during the microwave rum, allowing a visual check of digestion conditions. It prevents over-pressurization and over-heating
+Large storage capacity: can edit and store 255 programs according to user's requirements and each method program can set 10 digestion steps. Users can set parameters (temperature, pressure, time, microwave power) according to their own requirements which provides convenient operation for users.+Multi safety protection functions: high strength double security door, temperature monitoring, high temperature prevention, pressure monitoring, high pressure prevention, instruments fault monitoring alert, innovative stopping running when opening door, instruments abnormal sound monitoring.
+Power and power regulation mode: using variable frequency resonance or non-pulse (optional) continuous rotating mode to ensure highly efficient and even microwave throughput. Users can adjust it according to users' requirement between 0-3000W.
Quality components :
+360°continuous rotator: Realize continuous rotation in the same direction in cavity to ensure even and complete digestion of different vessel. The 360°continuous rotating reduces impact on rotary motor, which greatly extends the service life of rotary motor.
+Color touch-screen display:7-inch LCD touch-screen display to show real-time temperature, pressure, time and curves. It also contains a real time display for pressure and temperature of each individual vessel to give a clear check of
+digestion processing.
+Digestion vessel material: imported TFM material for inner vessel, imported PEEK and glass fiber for outer protection vessel, which prevents high temperature, high pressure and corrosion, and assures safe operation.
Display:
| Interface | Functions | Methods |
| Calibration | Self-diagnosis | Work interface |
Technical Specification :
| Model | AE-MD700 | AE-MD650 | Outer vessel pressure limit | 20MPA |
| Pressure control | 18 vessels | 12 vessels | Temperature control range | 50-400℃ |
| Temperature control | 18 vessels | 12 vessels | Maximum working temperature | 250℃ |
| Vessel volume | 100ML | Temperature control accuracy | ±0.3℃ | |
| Pressure testing | Contactless pressure sensor | Inner vessel temperature limit | 300℃ | |
| Temperature testing | Contactless IR sensor | Microwave power | 0-3000W adjustable/ 0-2000W adjustable | |
| Vessel material | Inner vessel: imported TFM Outer vessel: imported PEEK+glass fiber | Microwave frequency | 2450MHz | |
| Display | 7inches touch screen | Rotation mode | 360 continuous rotation | |
| Microwave leak | ＜5mw/ cm² | |||
| Pressure control range | 0-10MPA | Power | AC 220V, 16A, 50/60HZ | |
| Maximum working pressure | 6MPA | Dimension | 640mm*630mm*590mm | |
| Pressure control accuracy | 0.01MPA | Weight | 75KG/70KG | |
| Model | AE-MD850 | AE-MD800 | Outer vessel pressure limit | 20MPA |
| Pressure control | 50 vessels | 40 vessels | Temperature control range | 50-400℃ |
| Temperature control | Scanning control of each vessel | Maximum working temperature | 250℃ | |
| Vessel volume | 50ML | Temperature control accuracy | ±0.3℃ | |
| Pressure testing | Contactless pressure sensor | Inner vessel temperature limit | 300℃ | |
| Temperature testing | Contactless IR serson | Microwave power | 0-3000W adjustable | |
| Vessel material | Inner vessel: imported TFM Outer vessel: imported PEEK+glass fiber | Microwave frequency | 2450MHz | |
| Display | 7inches touch screen | Rotation mode | 360 continuous rotation | |
| Microwave leak | ＜5mw/ cm² | |||
| Pressure control range | 0-10MPA | Power | AC220V, 16A, 50/60HZ | |
| Maximum working pressure | 6MPA | Dimension | 640mm*630mm*590mm | |
| Pressure control accuracy | 0.01MPA | Weight | 78KG | |
