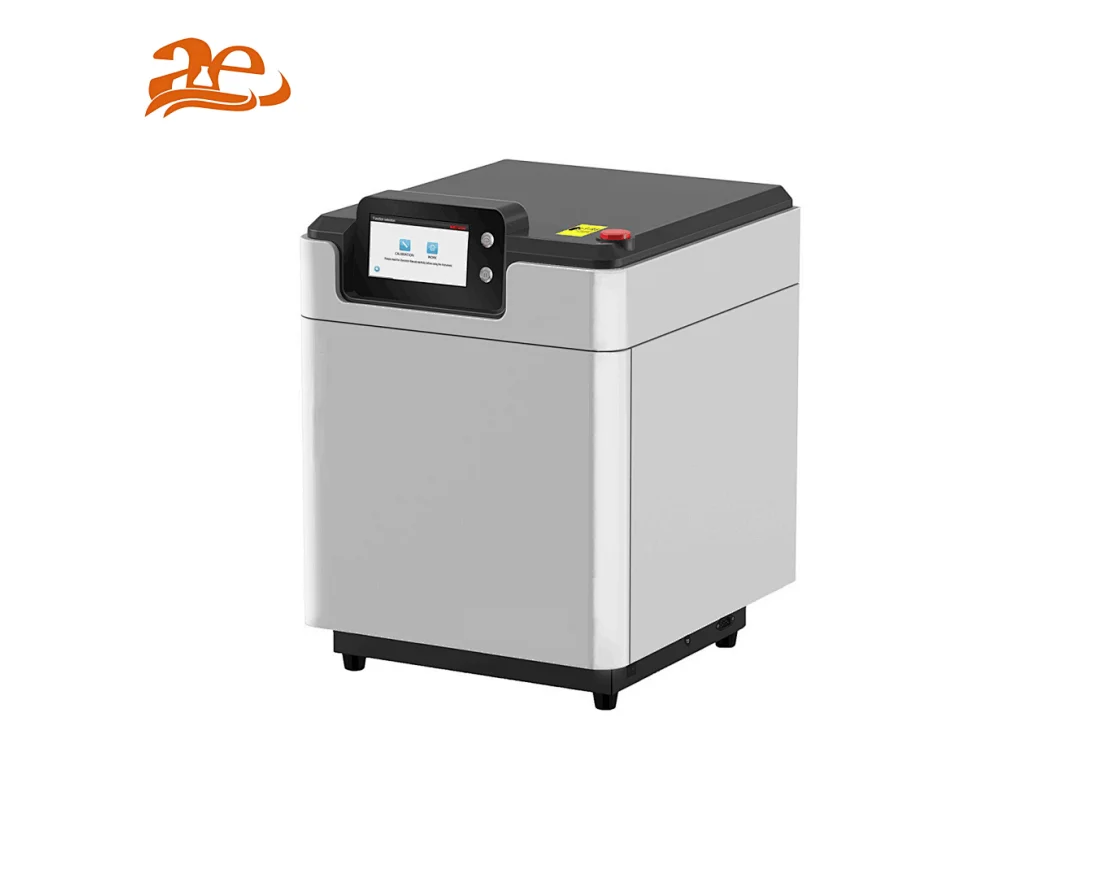

AELAB Microwave Digestion System AE-MD610 Series
Up to 12 vessels to meet different digestion requirements.Vertical Microwave design for even distribution of microwave.Real time monitoring for both temperature and pressure of each vessel.
AE-MD610 Series
Quantity:
AELABMicrowave Digestion System AE-MD610 Series
Features:
+Up to 12 vessels to meet different digestion requirements.
+Vertical Microwave design for even distribution of microwave.
+Real time monitoring for both temperature and pressure of each vessel.
+Contactless monitoring with no burst disk design saves consumable cost and maintenance cost.
+Imported vessel material for both sample vessel and protection vessel ensures safety.
+Touch screen with user-friendly interface for easy operation.
+Imported CFRP with high strength ensures impact resistance.
+Pre-installed international standard methods while user can also edit, save, modify and delete own method.
+316L stainless steel tank with teflon coating avoids erosion and ensures fast cooling.
+Special magnetron design which carries out high microwave leakage standards.


Technical Specification :

ModelAE-MD610-T6AE-MD610-T8AE-MD610-T10AE-MD610-T12
Vessels681012
Temperature Monitoring SystemTemperature Monitoring:Contactless IR Sensor;Scan monitoring for each vessel
Temperature ControllingRange:50~400℃
Temperature Accuracy:±0.1℃
Display Accuracy:±0.1℃
Pressure Monitoring
System
Pressure monitoring:Contactless Sensor;Scan monitoring for each vessel
Pressure ControllingRange:0~15MPa
Pressure Accuracy :±0.01MPa
Display Accuracy:±0.01Mpa
Vessel Volume100ml
Vessel MaterialImported TFM
Protection vessel materialPeek +Glass Fiber
Display7inch Touch Screen
Rotation 360° continuous rotating
Microwave Tank316L stainless steel tank with Corrosion-proof coating
Microwave Power0~1000W (adjustable)
Microwave Leakage<5mw/cm²
Air exhuastHigh power Corrosion-proof air blower
PowerAC220V+10%.10A,50/60HZ
Dimension490mm*560mm*630mm
Weight47KG
